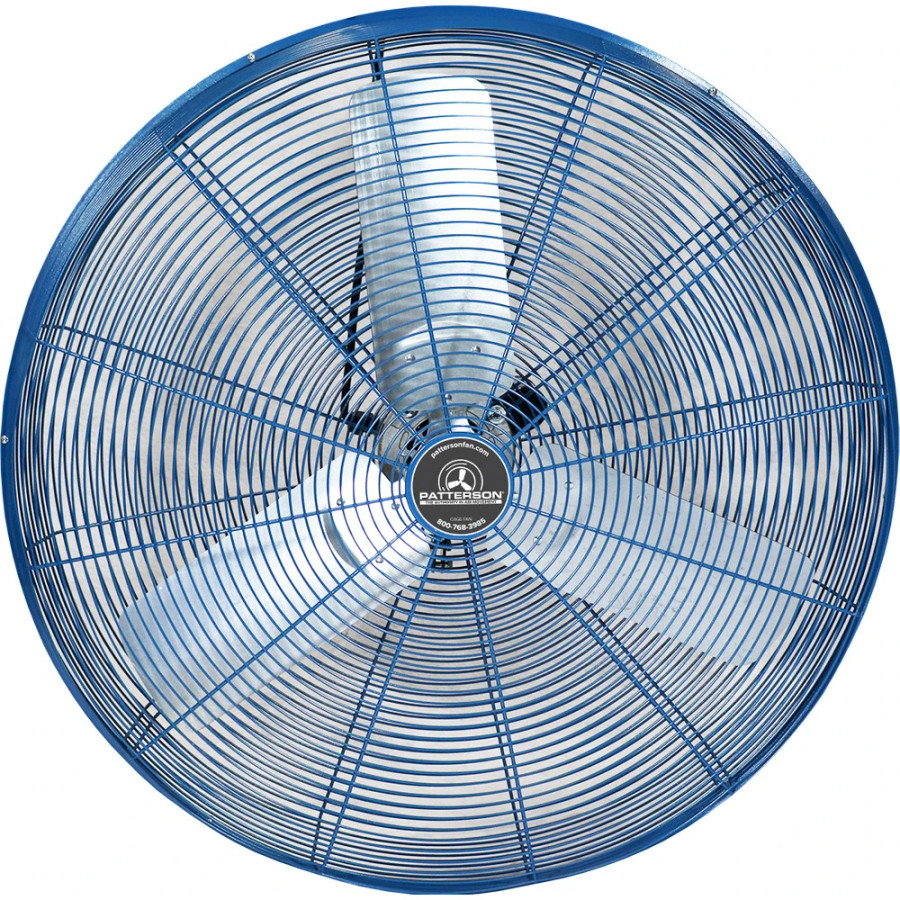

The Patterson FPC18A is an 18-inch industrial cage fan designed to move air efficiently in workshop, automotive, and warehouse environments. Built as a stationary air circulator, this model features a powder-coated blue guard and a dual-speed TEAO-capable motor that delivers 750 RPM on low and 1075 RPM on high, providing adjustable airflow without excessive noise. It is wired for 115V operation and includes thermal protection for added safety in demanding settings. A factory-wired 10-foot cord with an inline switch offers ready-to-use convenience, while the cage design helps protect the blade and users during operation.
Constructed with steel components and a durable finish, the FPC18A is offered with mounting options to suit floor, pedestal, or wall configurations. The available pedestal can adjust height from 42 to 72 inches, enabling users to position airflow precisely where it’s needed, from working surfaces to floor level. The unit is categorized for janitorial and general facility use, emphasizing reliability in environments where controlled air movement and reduced noise levels are important. While the product line includes 18
Features:
- Three sizes to choose from: 18", 24", 30"
- ODP motor, 2-speed (TEAO available upon request)
- 115V, thermally protected
- Motor speed 750 RPM/1075 RPM
- OSHA-compliant blue, powder-coated guards
- Factory-wired 10' cord w/ inline cord switch
- Available pedestal mount (adjustable height 42†- 72â€)
- Available column-wall mount <
- Size:
- 18 inches
- CFM Low/High:
- 3010/4600
- HP:
- 1/2
- Voltage:
- 115V
- Motor Rated Amps:
- 3.7
- Package Size:
- Each
