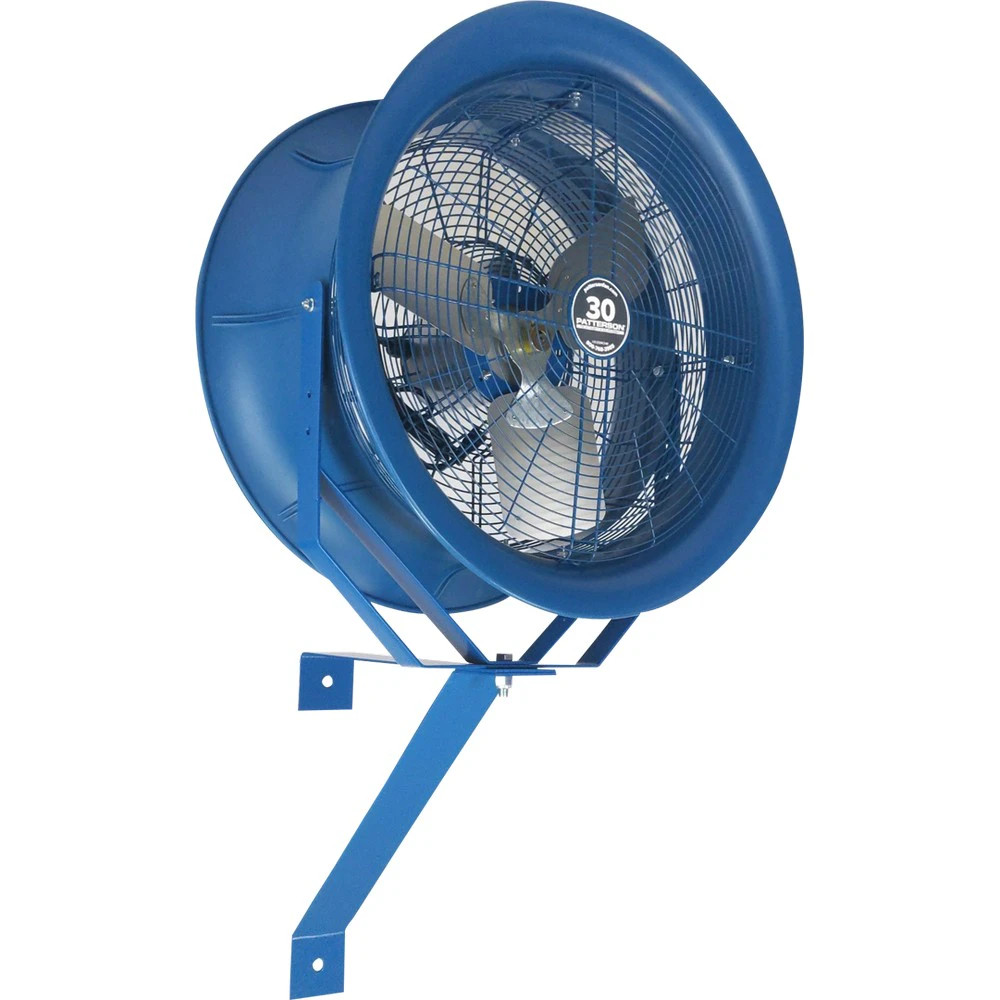

The Patterson CW30B High Velocity Fan is a 30-inch, high-performance ventilation solution designed for demanding factory and warehouse environments. This direct-drive unit delivers robust airflow to improve air circulation in aisles, workstations, pick modules, and shipping areas, helping to disperse heat, control condensation, and support a safer, more productive workspace. The fan’s 30-inch propeller is coupled to a maintenance-free motor with sealed bearings, and it is configured for long service life in industrial settings.
Features:
- 30" diameter, 2-blade galvalume propeller
- High-impact polypropylene housing with steel construction
- Venturi-designed barrels and side air intakes
- Maintenance-free direct-drive motor with sealed bearings
- Multiple voltages: 115V–460V
- Eight mounting options and optional oscillator kits
- OSHA-compliant steel finger guards
- 12' power cord (115V only); 2-year warranty
- Propeller:
- 30” Diameter, 2-Blade Galvalum, 15°
- Fan Inlet/Outlet:
- High-Impact Polypropylene
- Finger Guards:
- OSHA-Compliant
- Power Cord (115V Only):
- 12’ Length (Switch Optional)
- RPM:
- 1800 (standard)/ 1200 (optional)
- Decibels:
- 82.2 @ 20’ - 85.5 @ 3’ (1800)
- Coverage:
- 12,000 ft²
- Warranty:
- 2 Years
- CFM:
- 12,000
- HP:
- 1
- Width:
- 37”
- Depth:
- 22”
- Air Throw:
- 200’
- Weight:
- 99 lbs
- Package Size:
- Each
