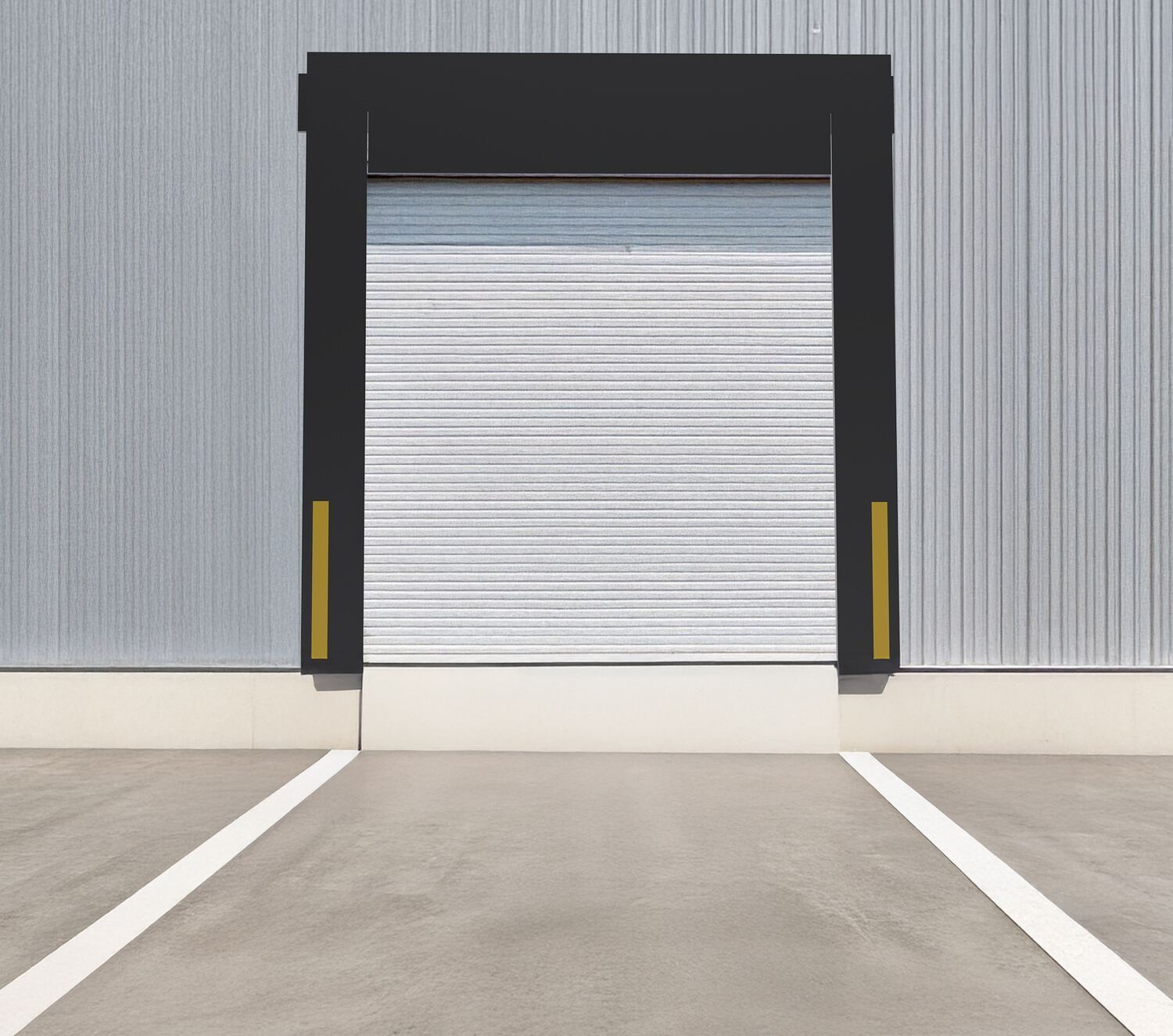

Warehouse loading dock with a closed roll-up door and concrete floor.

Loading Dock Solutions & Equipment

Explore Loading dock solution and best-selling safety profucts from Vestil Manufacturing Corp at The Safety Source.

Value is required
Value is required
Value is required
Value is required
Value is required
Value is required
Value is required
Value is required
Value is required
Value is required
Thank you!

Vestil Manufacturing Best Seller Loading Dock Safety Products

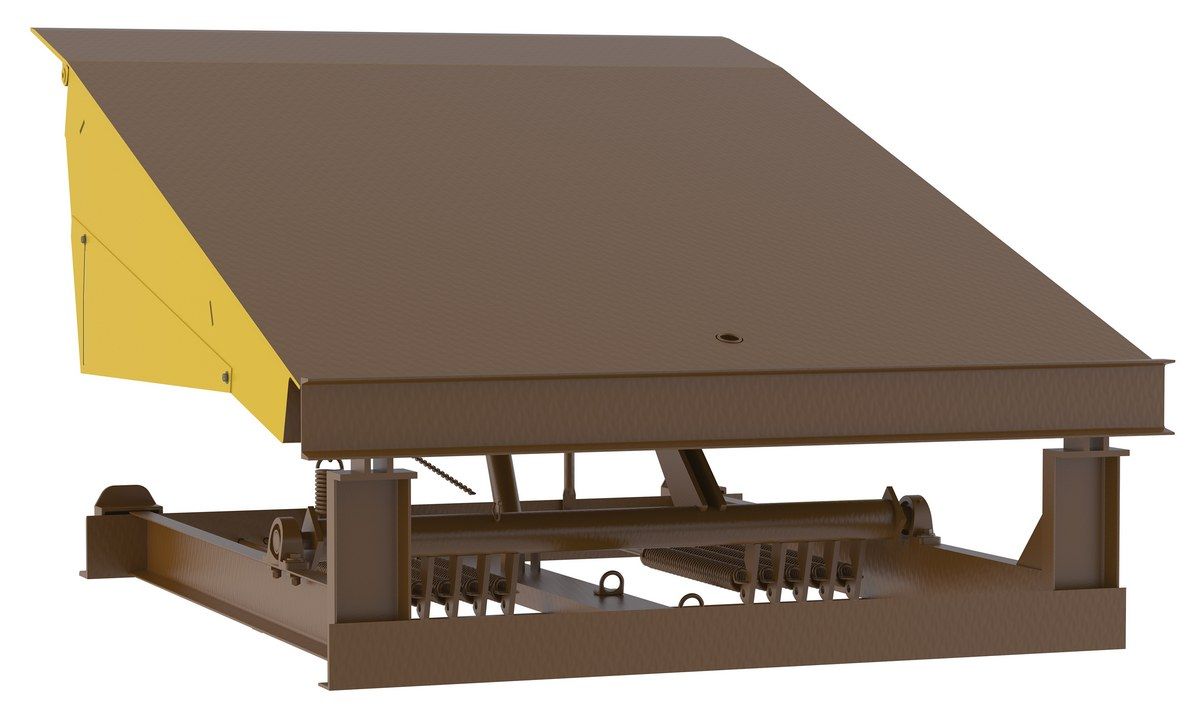

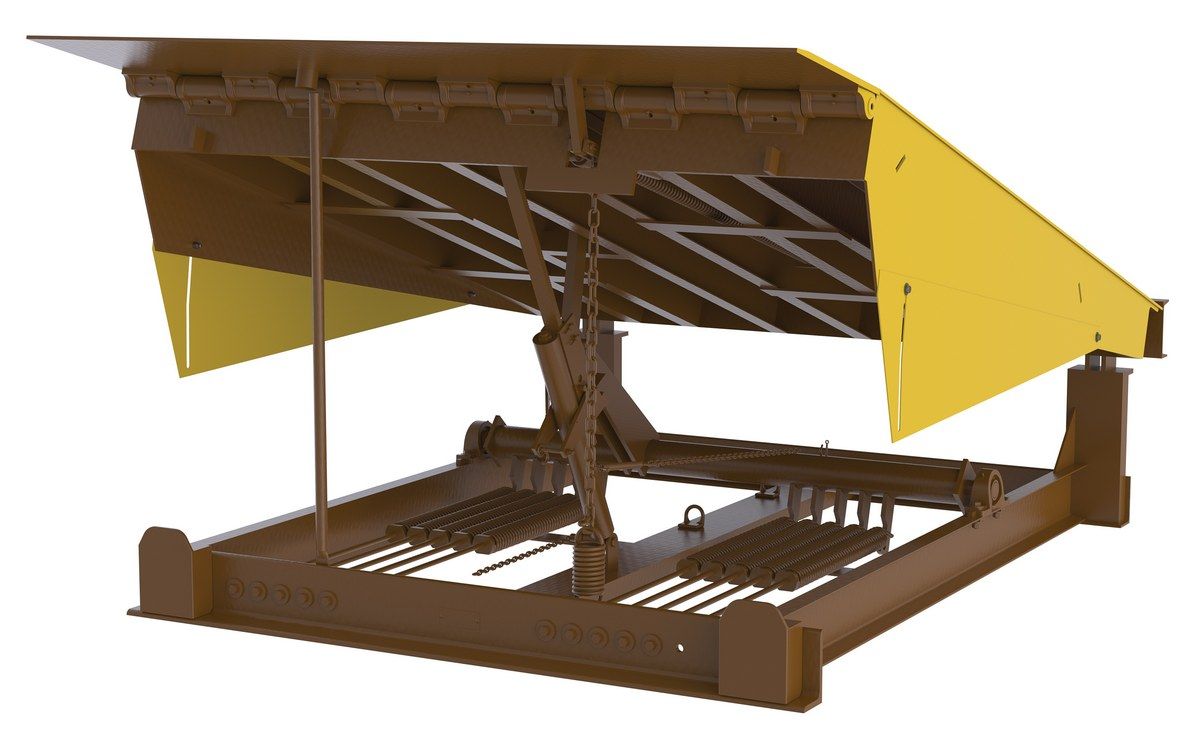

Mechanical Dock Levelers

The Mechanical Dock levelers are constructed of heavy duty diamond plate deck (55,000 PSI) steel for long term support of the steel channel understructure. The dock leveler allows for easy truck loading and unloading. The leveler is engineered and designed for minimum maintenance and features a smooth pull chain operation. Lip is 16" long. Service range 12" above and below dock. Includes (2) 1014-4.5 laminated bumpers. Uniform capacities available up to 50,000 pounds.

Quoting a dockleveler installation for an existing pit can be difficult. We recommend that you complete this Survey Sheet



  • Pit-mounted dock leveler allows for easy trailer loading and unloading at loading docks
  • Spring operated mechanical pull-chain makes use easy
  • Telescopic side-mounted toe guards cover opening through the entire service range
  • Complies with CS 202-56, OSHA and ANSI MH14.5

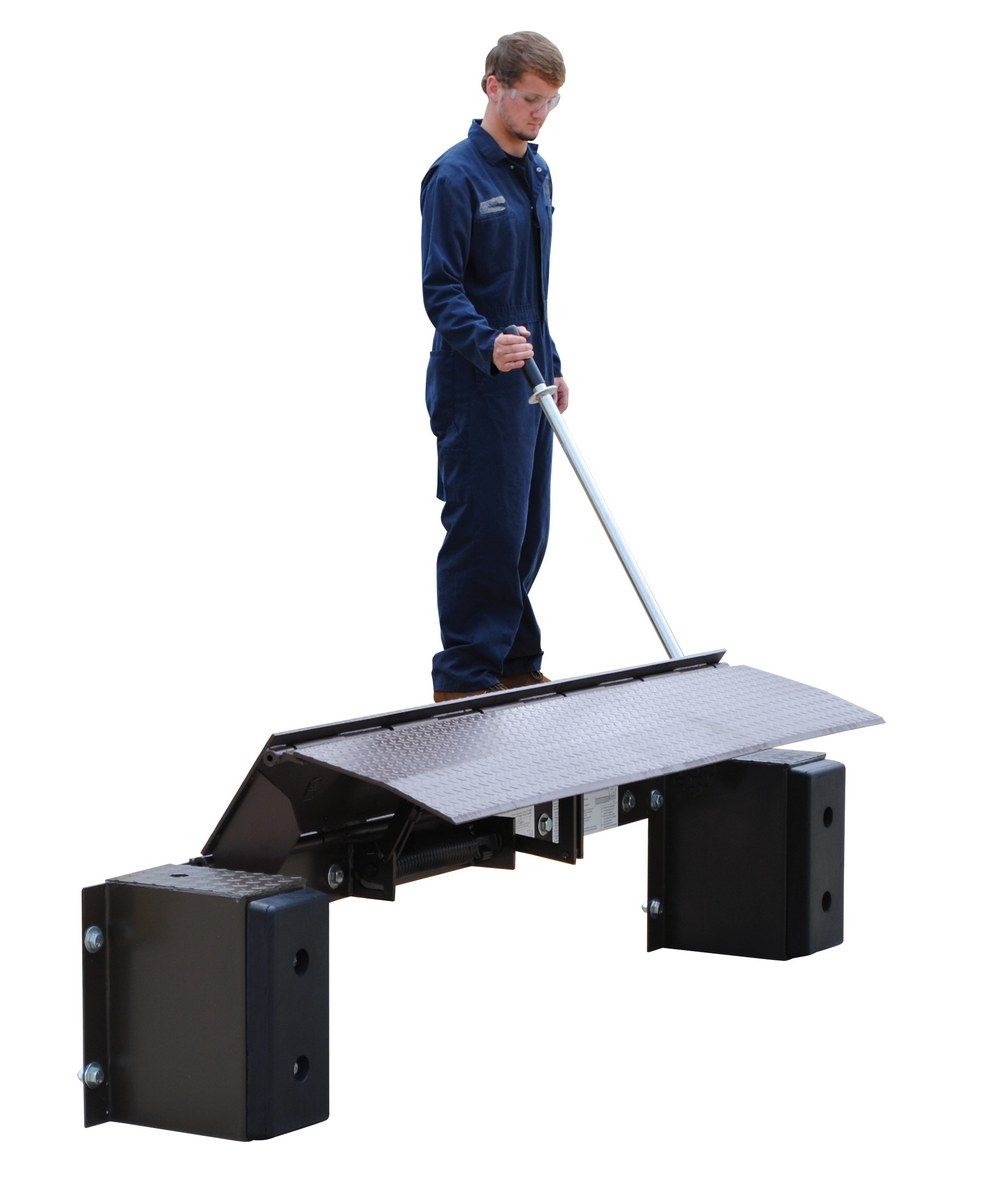

Edge-O-Dock Levelers

The Edge-O-Dock leveler permanently attaches to face of dock. It is recommended for docks to be at least forty-eight (48) inches high. When the trailer departs, the lip drops automatically behind the face of the bumpers. Concrete recess is not required. The leveler comes complete with 2" x 8" x 18" bumpers and installation instructions. Standard ramping is twenty-nine (29) inches (29-13/16" with 30,000 lb. capacity) with a (36-5/8") long ramping length available for smaller grade on PP and PE series levelers. A steel dock edge, approach ramp, or approach plate is necessary on the dock face, and a continuous weld (completely across the top, and down both sides of the mounting plate) is required for proper installation. Additionally, the mounting plate must be bolted to the dock face, via the anchor holes provided on the mounting plate.

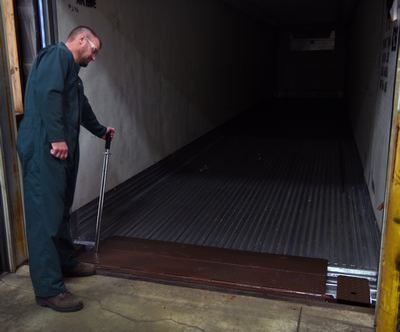

The Mechanical Edge-O-Dock is operated by placing the actuation handle into the pocket of the inner lip and pulling down toward the floor. The operator then pushes the handle forward until the lip rests on the truck bed. As the trailer departs, the lip retracts behind the bumper face automatically.



The Manual Hydraulic Hand Pump system is used to lift the leveler and extend the lip. The operator actuates the lowering valve allowing the deck to descend down and rest upon the trailer. Unit comes complete with hand pump, wall-mount brackets, cylinder, 15 feet of hydraulic line and oil. Truck must pull out for leveler to return to stored position.



The Electric Hydraulic Edge-O-Dock is the easiest to operate. After the truck is backed against the dock, push and hold the control button. The leveler raises and the lip will extend. 115V, 1-phase power standard. Unit comes complete with motor, pump, control box, cylinder, lines, and oil. Truck must pull out for leveler to return to stored position.



  • Easy install allows unit to quickly mount to any loading dock with a steel dock edge
  • Tread plate design offers a positive non-slip gripping action
  • Product design conveniently does not require a concrete recess
  • Solid steel construction offers long lasting reliable use

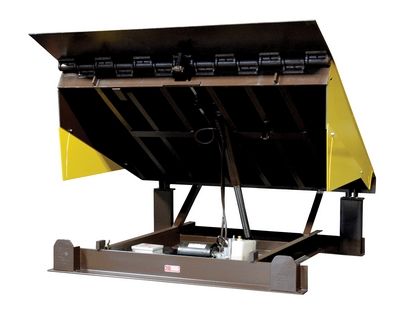

Electric Hydraulic Dock Levelers

The Electric Hydraulic Dock Leveler is ideal for high usage dock areas. The hydraulic design is state of the art and consists of a simple push of the button operation. The operator pushes and holds the "raise" button which activates the hydraulic pump and raises the deck. When the deck reaches the raised position the lip automatically extends. The operator releases the "raise" button and the deck descends to rest on the trailer. The control box includes a red emergency stop button standard. When the truck pulls away, the deck descends to full down position, trips the limit switch and returns automatically to the level cross traffic position. Includes telescopic steel toe guards on both sides, flush with platform edge, service range of +/- 12" and two (2) laminated bumpers. 460V 3-Phase standard. Uniform capacities available up to 80,000 pounds, contact factory.



  • Hydraulic design is state of the art with simple push button operation
  • When the deck is raised lip automatically extends for easy loading/unloading
  • Control box includes a red emergency stop button for optimal safety
  • Features telescopic steel toe guards on both sides for added safety

Dock Seals

Dock Seals are designed to create an airtight seal between the loading dock and the back of a trailer, helping to conserve energy and protect freight from weather elements. The Dock Seals superior 36 oz. nylon reinforced vinyl facings have a higher tear strength than equivalent weight hypalon. The chemically sealed ends prevent moisture infiltration. It is mounted on and bonded to a durable wolmanized wood and contains a full height air escape tunnel. The unit consists of a three (3) piece construction (12" high; sides - beveled sides with 9-1/2" width at the wall and 12" width at the face) and a through the wall installation kit that is included. 5" maximum compression is recommended. Application with a flush dock to building in conjunction with an Edge-O-Dock use a twenty (20) inch projection Dock Seal. To ensure proper size complete and fax the survey sheet below. Units are non-returnable.

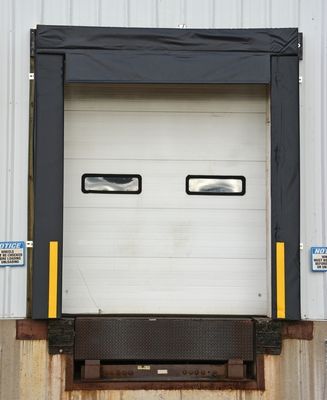

Loading dock with a white door and yellow safety markers.

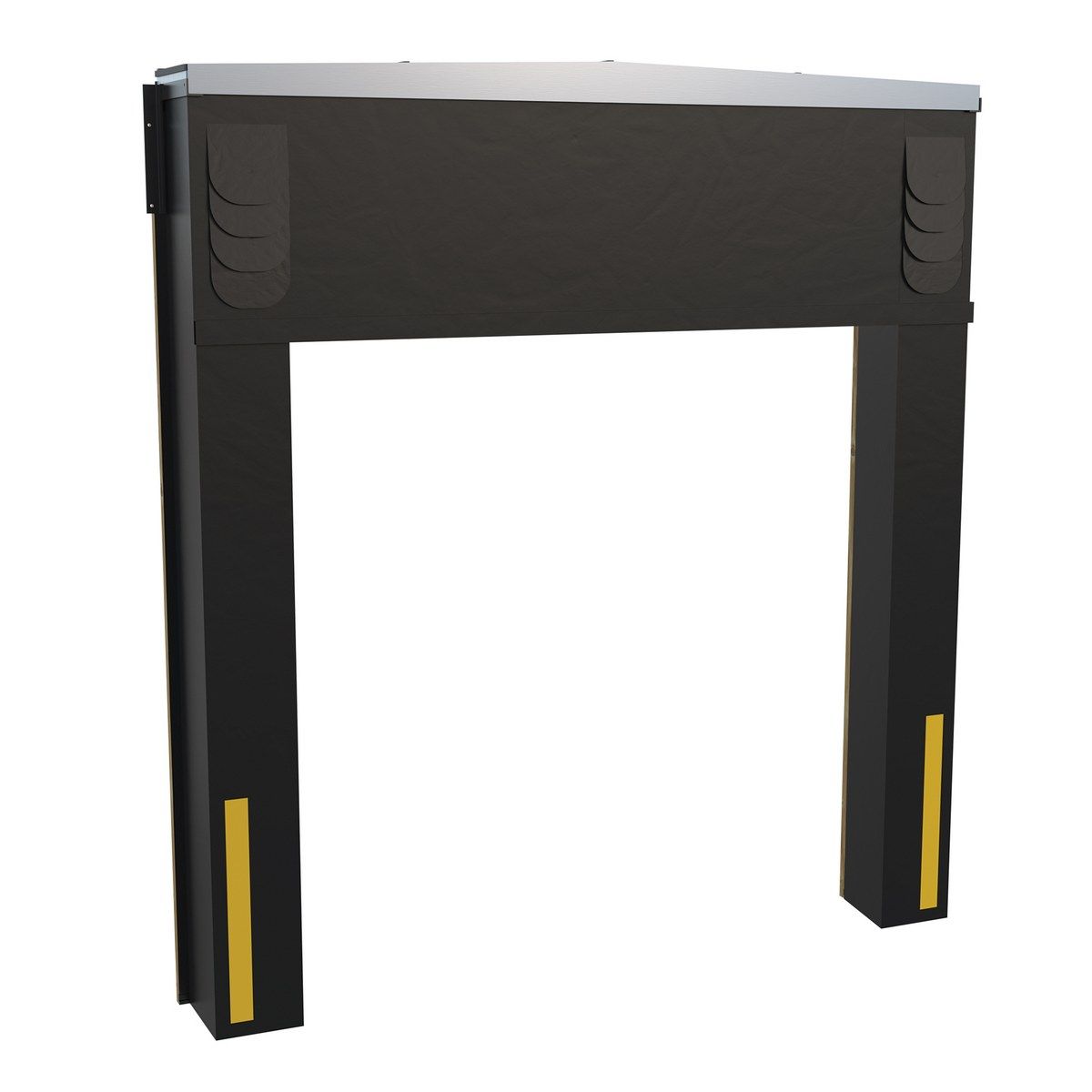

Dock Seal/Shelter Combinations

Dock Seal/Shelter Combinations are designed to provide both sealing and sheltering functions at loading docks, ensuring energy efficiency and protection from the elements. The Dock Seal/Shelter Combination is used with a 96"W x 120"H door. The top header is constructed of wolmanized lumber and is built with a slope to allow for water run-off. Header measures 114"W with a 30"L drop curtain. Side (verticals) measure 120" tall and contain high density foam mounted to treated lumber. The verticals are mounted on wooden boards (the face of the vertical measures 12"W and tapers to 9-1/2" at wall) allowing wall mounting down the length of the vertical pieces. Application with flush dock to building in conjunction with an Edge-O-Dock use a 20" projection Dock Seal. To ensure proper size complete and fax the survey sheet shown below. Units are non-returnable.



  • Unique two-in-one design provides a dock seal & dock shelter
  • Maximum compression design offers the maximum protection
  • Built-in air tunnels allow air to escape when contacted by a trailer
  • Mounting hardware and installation instructions make installation quick and easy

Dock Shelters

Dock Shelters are designed to protect goods, personnel, and equipment at loading docks by providing a barrier against weather elements and enhancing energy efficiency. The Dock Shelter is used with doors up to 10'W x 10'H. The dock shelter reduces oversized doors to match truck openings. The long wear fabric is highly resistant to abrasion and tearing. Fiberglass staves are sewn into the flaps. Seal is formed along the sides and top of trailer when the vertical and top panels are pushed inward by the trailer. Recommend minimum 10" trailer penetration for a good seal. Supporting structure is made of 2" x 4" wolmanized lumber. The top header piece measures 132"W and contains a drop curtain which measures 36"H. Two vertical pieces measure 126" tall with vertical flaps measuring 21"W. When installed, the shelter will close the door opening down to 90"W x 90"H (between flaps). Includes two yellow steel guide protectors and foam-filled corner draft protector pads for extra sealing action. Units are non-returnable.



  • Three foam-filled pads offer full dock protection
  • Maximum compression design offers the maximum protection
  • Built-in air tunnels allow air to escape when contacted by a trailer
  • Mounting hardware and installation instructions make installation quick and easy

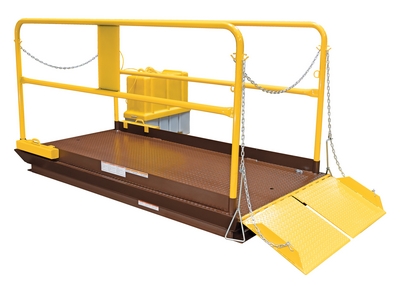

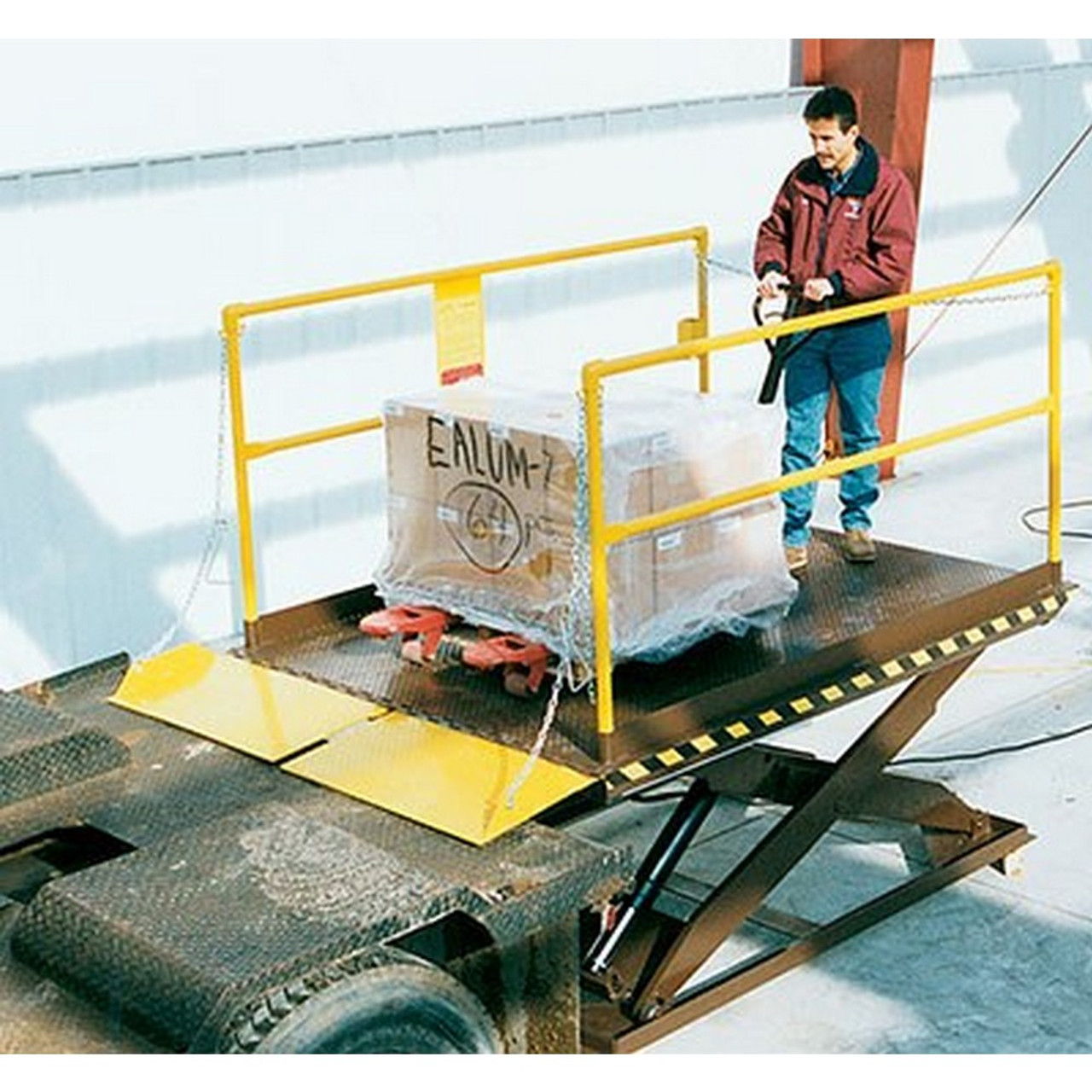

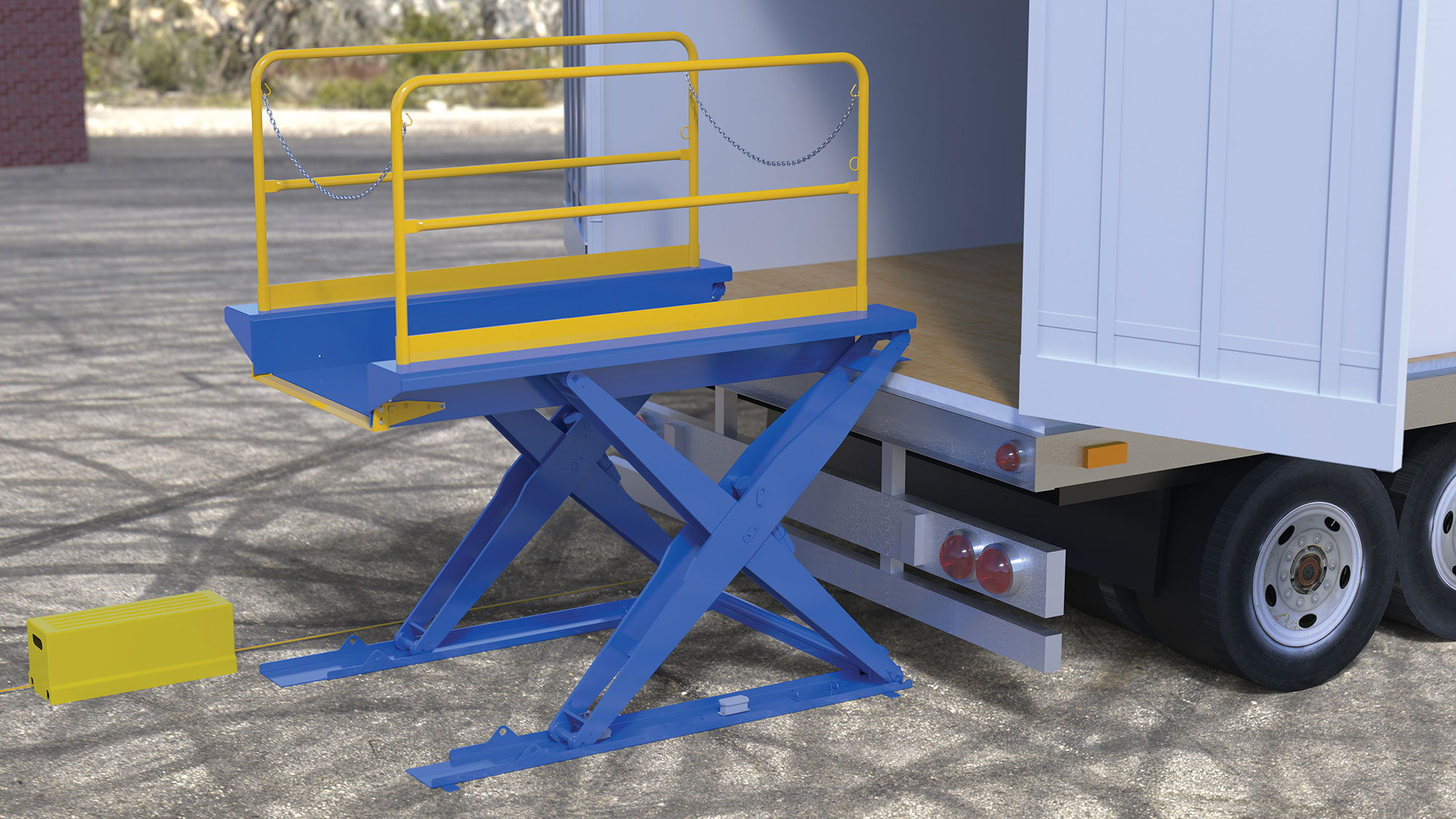

Steel Premium Truck Scissor Dock Lift

Save time and reduce man-hours where there are no docks with a truck scissor dock lift. Engineered and designed for maximum safety and efficiency. The diamond plate deck is made of heavy gauge steel for years of use. Hydraulic cylinders feature safety velocity fuse if line breaks. It comes complete with upper travel limit switch and overload relief valve. The push-button control is on a long coil cord. Pre-wired control box includes magnetic starter and overload fuse. High visibility safety yellow removable handrails with fixed toe boards are standard. Includes beveled toe-guards and electric toe-guards around perimeter of platform. The external motor can be located up to eight (8) feet away from lift.



  • Unique design services semi-trailers when loading dock is unavailable
  • Tread plate surface provides a safe non-slip grip
  • Safety velocity fuses protect the hydraulic cylinders
  • Upper travel limit switch cuts power to unit when max raised height is reached



https://safetysourcellc.com/material-handling/loading-dock-equipment/loading-dock-lifts/vestil-wl-100-5-78-steel-premium-truck-scissor-dock-lift-7-ft-x-8-ft-5-000-lb-capacity-brown-yellow/

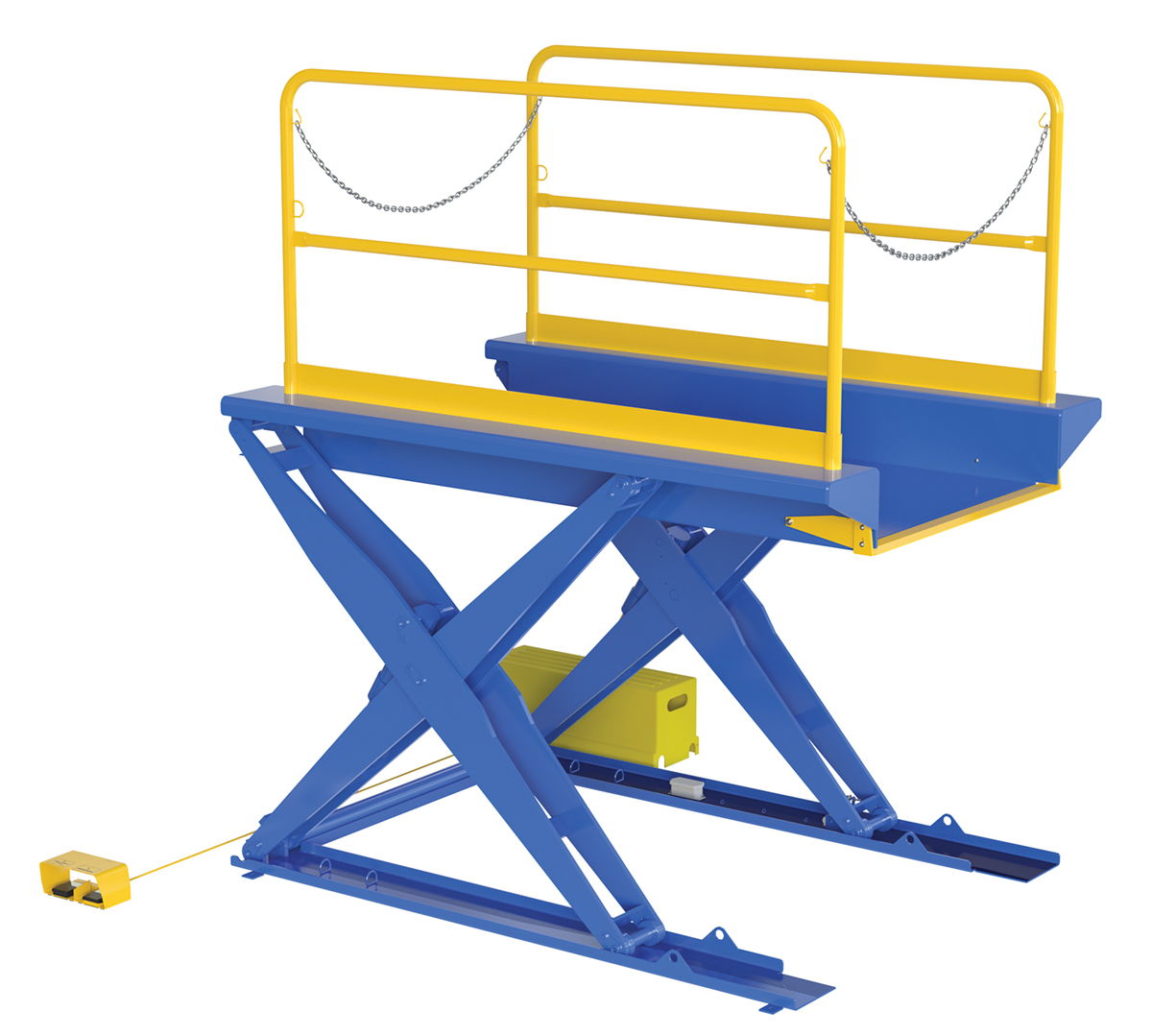

Ground Lift Scissor Tables with Handrails

The Ground Lift Scissor Table with Handrails is designed for use when fork trucks or other dock lifts are not available. The pallets can be loaded onto the platform with pallet trucks and raised to an ergonomic working height. The safety features include: entry-side electric toe guard to protect pinch points during lowering of the table, velocity fuse to maintain platform height in the event of a hose or fitting failure, foot control, maintenance prop, and upper travel limit switch to stop table at maximum height reducing motor wear. The motor is totally enclosed standard with optional voltages available. The remote power unit can be located up to eight (8) feet away from the table. Optional accordion skirting is available.



  • Pallets can be loaded onto the platform and raised to a working height
  • Features toe guard to protect pinch points
  • Guardrails for stability and support
  • Remote power unit can be located up to eight feet away from the table

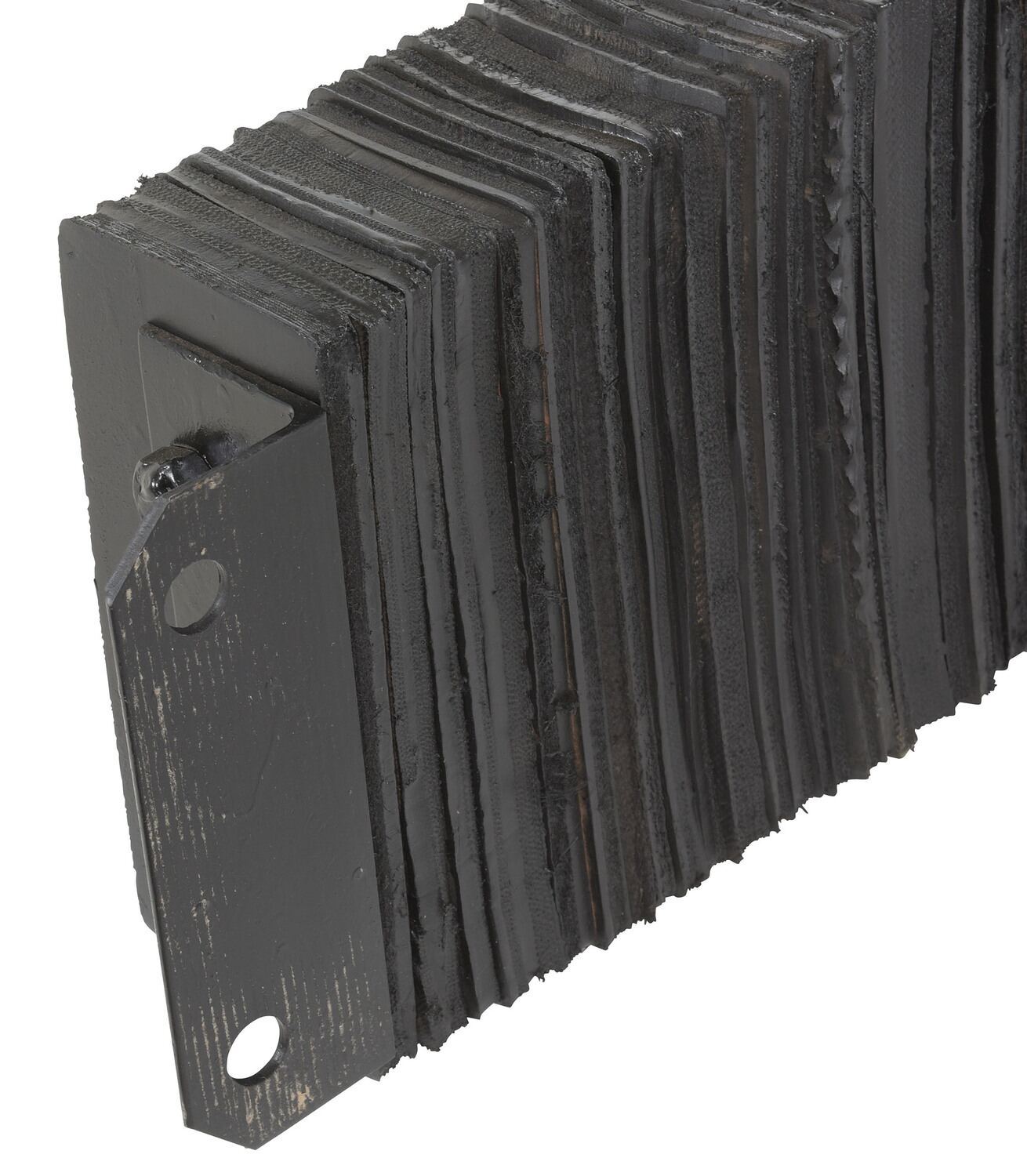

Laminated Dock Bumpers

Laminated style dock bumpers provide durable, economical protection for your loading dock and trailers. Units are constructed of fabric reinforced rubber from recycled truck tires. Pads are laminated between painted structural angles and held together with 3/4" steel tie rods. A 12" long center support bracket is included with the 96" wide bumpers. Installation is quick and easy by bolting or welding units to the dock. Width is measured bolt hole center to bolt hole center, except Type C. Width is actual bolt hole center 1014-4.5F is 6", 1214-4.5F is 6-7/8". Bolt holes are 13/16" diameter on type A & C bumpers and 7/8" diameter on type B bumpers.

TYPE A: Projection Style Laminated Bumper
TYPE B: Vertical Style Laminated Bumper (V- prefix)
TYPE C: Flat On One Side Laminated Bumper (-F suffix)



Vestil Lifts, Gates and Dock Accessories

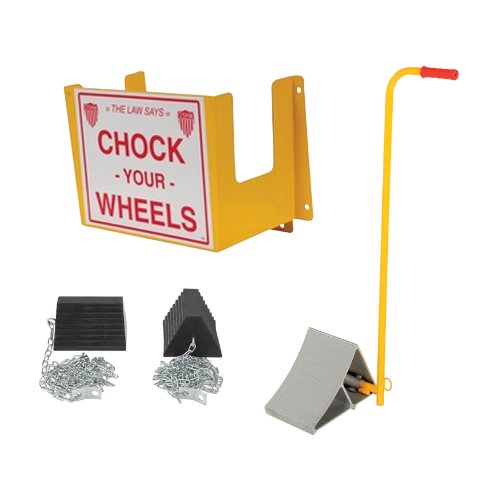

Wheel Chocks and Accessories

Vestil's extensive lineup of Wheel Chocks & Accessories is designed to secure vehicles and equipment during loading, unloading, and transit, ensuring stability in any operational setting. With a range of options tailored to different capacities and environments, these products help prevent accidental movement, boost safety, and enhance overall efficiency.

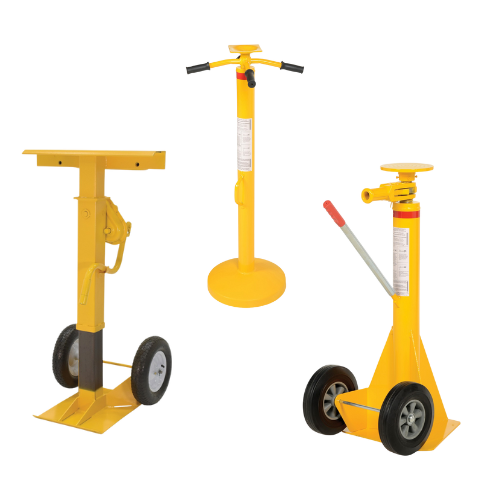

Trailer Stabilizing Jacks

Vestil's Trailer Stabilizing Jacks and various mechanical jacks are engineered to deliver robust support and enhanced safety during loading, unloading, and transit, ensuring a secure connection between your trailer and the ground. Constructed with heavy-duty materials for durability and precision, they reduce downtime by simplifying stabilizing procedures and lowering the risk of accidents in demanding operational environments.

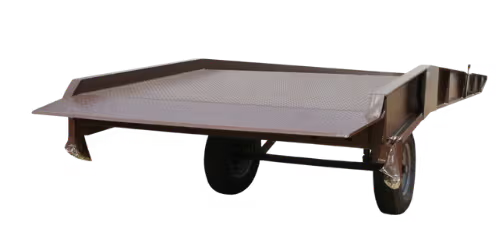

Steel Yard Ramp

The Portable Steel Yard Ramp quickly loads and unload trucks, trailers and rail cars from ground level when no freight dock exists. Increase productivity while reducing material handling costs. Great for construction sites. A manual two-speed hand crank for easy one (1) person height adjustment. The standard features include: positive traction open steel grating, safety locking chains, rubber bumpers and fork positioning loop. Painted neutral earth-tone brown. Includes landing gear and crank mechanism.
