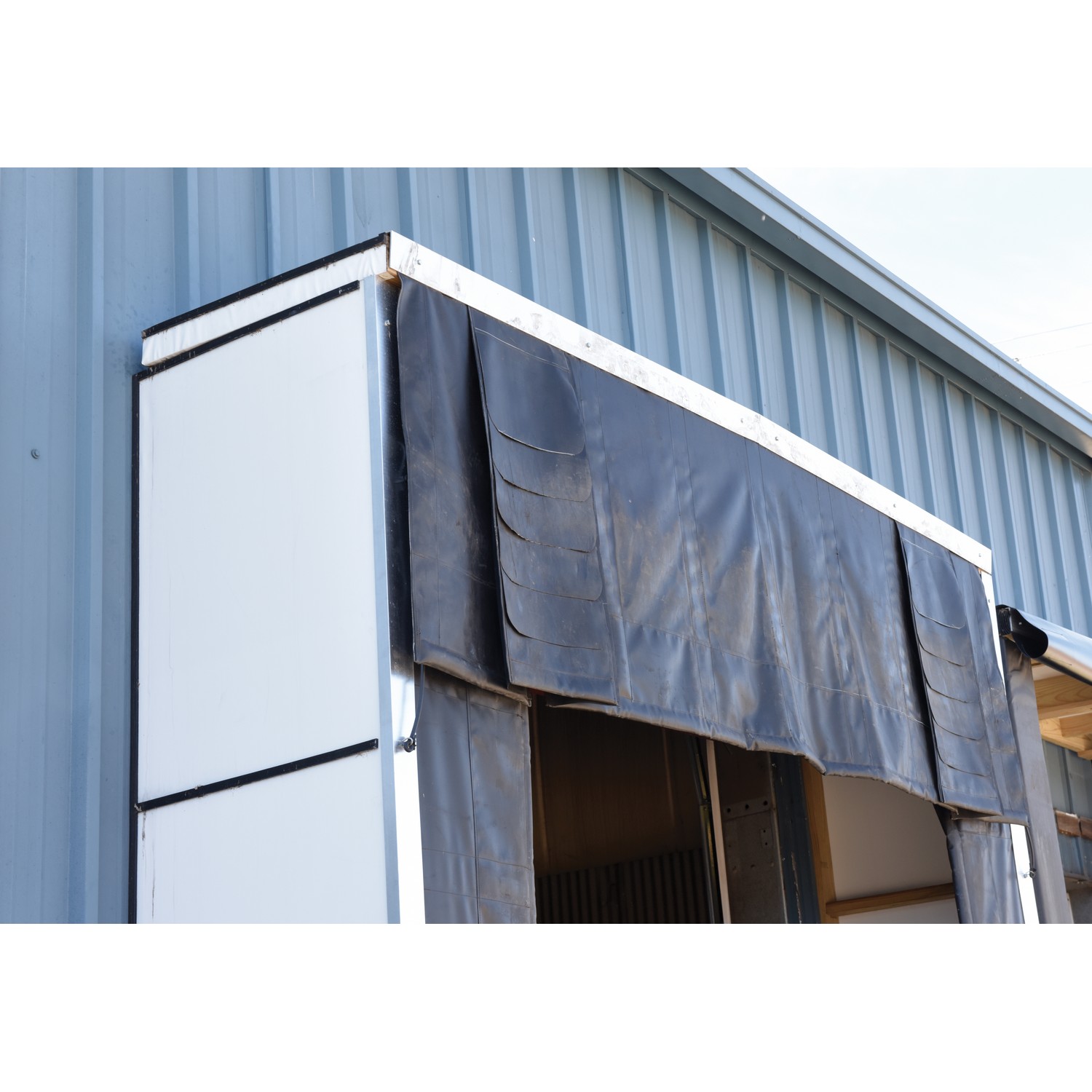

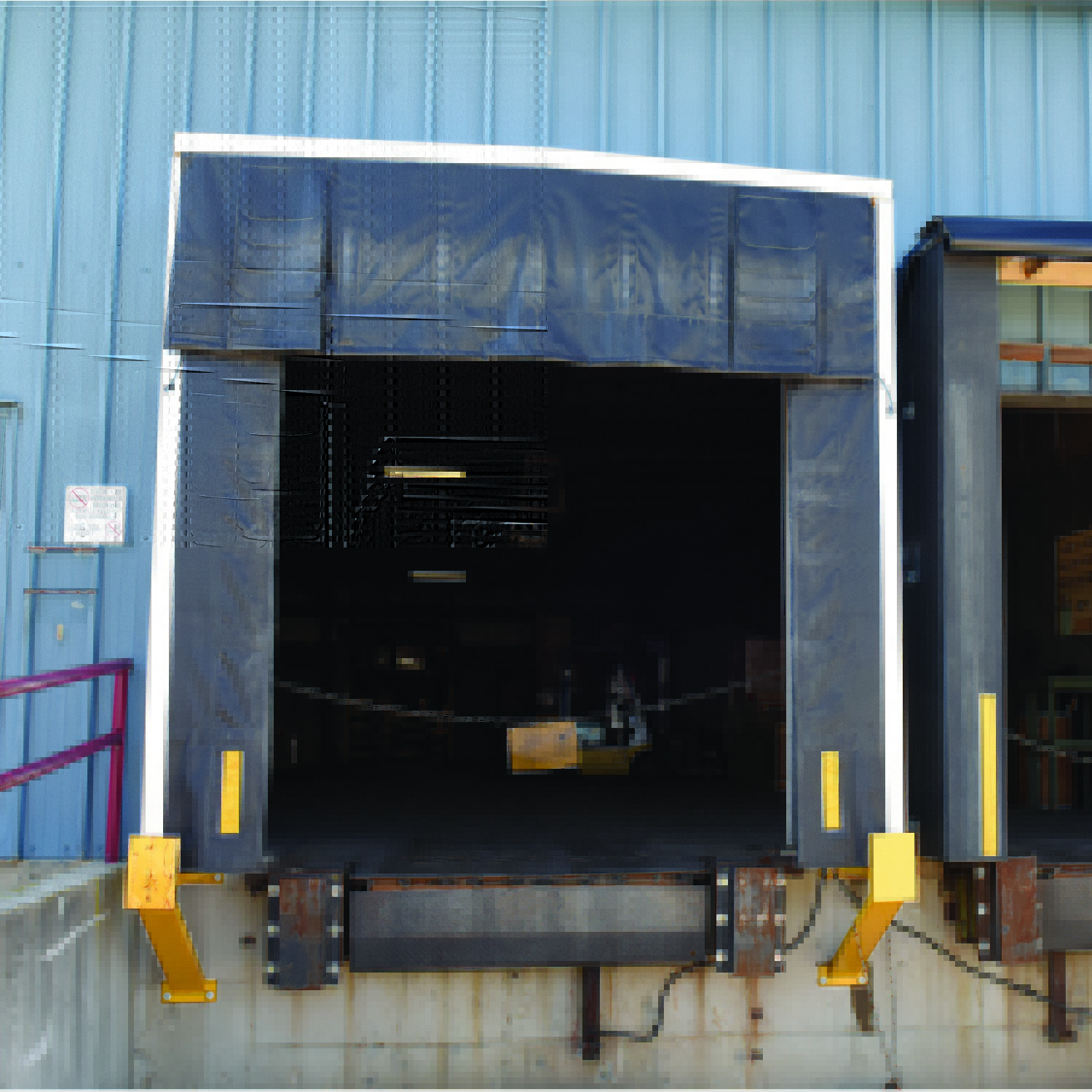

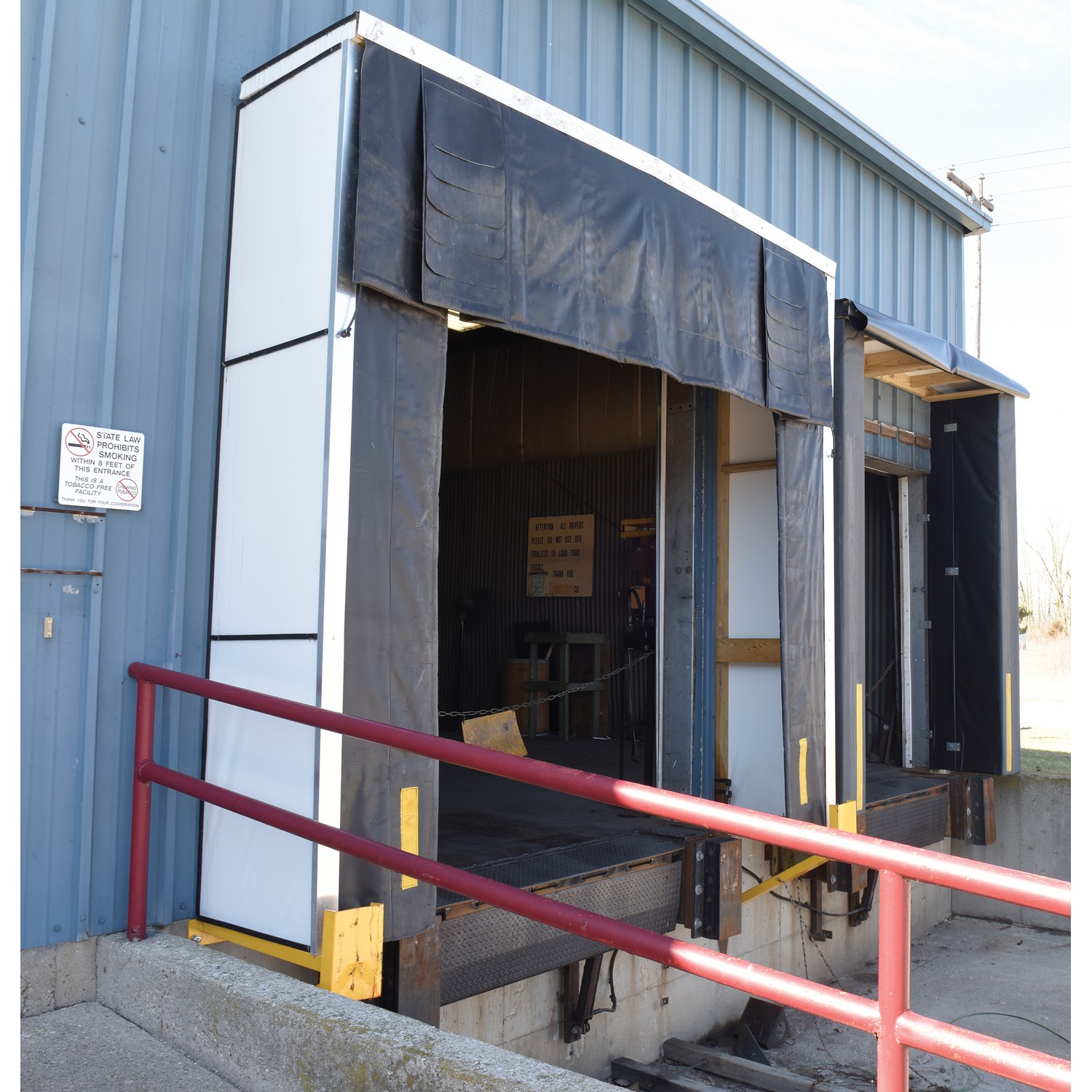

The Vestil D-750-24 Dock Shelter is designed to seal loading docks for doors up to 120 inches wide and 120 inches high, reducing the opening size to a tight, truck-penetrable 90 by 90 inches when closed. This model projects 24 inches from the building and uses long-wear fabric reinforced with fiberglass in the flaps to resist abrasion and tearing, helping it stand up to routine trailer contact. The shelter is finished with safety yellow steel guide protectors to shield the mounting frame and a pair of foam-filled corner pads to enhance sealing action at the corners. Built-in air tunnels in the fabric panels allow air to escape as a trailer pushes against the shelter, reducing pressure on the unit and aiding a stable seal during docking.
The construction supports quick, straightforward installation with included mounting hardware and installation instructions, and the overall design emphasizes a balance of protection and ease of use. The assembly relies on a robust steel framework and fabric flaps to form a seal along the tops and fronts of trailers as they back into the dock, with the dual role of protecting the opening from weather and debris while absorbing minor impacts from the vehicle.
This dock shelter is suitable for applications where standard dock openings need to be effectively narrowed to match varying trailer sizes, improving energy efficiency and inventory protection in loading operations. It is packaged as a single unit and includes the necessary hardware for mounting, though specific warranty or country-of-origin details are not provided in the available data.
Features:
- Three foam-filled pads offer full dock protection
- Maximum compression design for enhanced protection
- Built-in air tunnels allow air to escape on contact
- Includes mounting hardware and installation instructions
- 26 ft? Not specified in data; uses 40 oz vinyl flaps and steel construction for durability
- Color:
- Black
- Material:
- Steel
- Projection (in.):
- 24
- Long Wear Fabric (oz.):
- 40
- Top Header Piece Width (in.):
- 132
- Drop Curtain Height (in.):
- 36
- Vertical Pieces (in.):
- 126 tall
- Vertical Flap Width (in.):
- 21
- Recommended Trailer Penetration (in.):
- 10
- Supported Wolmanized Lumber Width (in.):
- 2
- Supported Wolmanized Lumber Length (in.):
- 4
- Standard Guide Stipe Height (in.):
- 24
- Vinyl Flaps (oz.):
- 40
- Package Size:
- Each
