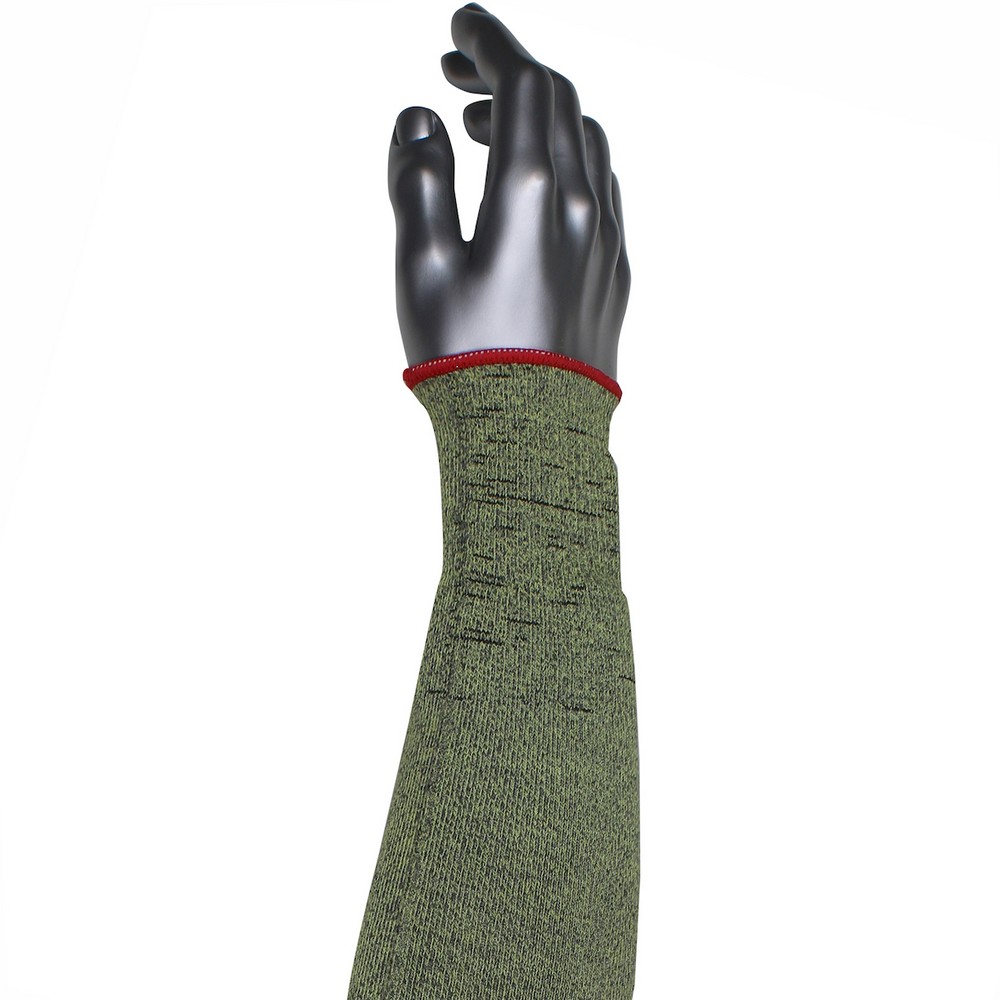

The PIP S13ATAFR/4HA-NW-ES6-22 is a single-ply ATA Hide-Away FR sleeve designed to provide cut resistance and flame resistance in a lightweight knit. Built with ATA Fiber Technology, it offers ANSI A4 cut protection and passes the vertical flame test (ASTM F1358) at Level 4, giving workers an added layer of safety for tasks that involve sharp edges and heat exposure. The sleeve is offered in three widths—narrow, standard, and wide—to accommodate different arm sizes and deliver a personalized, secure fit. A color-coded overedge helps with quick width identification in busy environments, and a non-slip top edge helps keep the sleeve in place during movement. The knit wrist is designed to stay in position without being overly restrictive, maintaining coverage from the top of the arm to the wrist.
This sleeve uses a 13-gauge knit construction that remains lightweight and breathable, contributing to comfort during extended wear. It also features an abrasion resistance rating of 1 (200 abrasion cycles) per the referenced standards, and it is compatible with machine washing and tumble drying on low heat, enabling practical maintenance and reuse. The liner materials include Aramid, ATA Fiber Technology, and stainless steel wire, delivering a combination of cut protection and durability. The product is recyclable through the Terracycle program and is reusable/launderable, aligning with sustainable disposal practices for PPE components.
The S13ATAFR/4HA-NW-ES6-22 is packaged in bulk with each sleeve sold individually and case quantities of 72, making it suitable for storeroom and production line inventories. Its specifications reference ANSI methods and standard tests (TDM for ANSI method, ANSI Cut Level 4/A4, and related abrasion and temperature ratings), which buyers should consider when selecting protection for specific tasks. Always verify fit based on arm size and task requirements, and follow the included wash instructions (machine wash at 40°C, do not bleach, tumble dry on low) to maintain performance over time.
Features:
- ANSI A4 cut protection via Proprietary ATA Technology
- ASTM F1358-08 Vertical Flame Test passes Level 4
- Three widths available: narrow, standard, wide for personalized fit
- Lightweight 13-gauge knit with non-slip top and knit wrist
- Color-coded overedge: red = narrow, yellow = standard, green = wide
- Single-Ply construction with aramid/ATA fiber liner and stainless steel wire
- Machine washable; 40°C wash, tumble dry on low
- Liner Material:
- Aramid, ATA Fiber Technology, Stainless Steel Wire
- Sustainability:
- Recyclable via Terracycle Program, Reusable / Launderable
- ANSI Method:
- TDM
- ANSI Gram:
- 2008
- ANSI Cut:
- 4
- ANSI Cut Level:
- A4
- ANSI Abrasion Level:
- 1
- ANSI Abrasion Cycles:
- 200
- Construction:
- Machine Knit, Seamless Knit
- ASTM F1060:
- 2
- ASTM F1060 Temp:
- 284° F
- ASTM F1358:
- 4
- Ply:
- Single-Ply
- Top Arm Option:
- Non-Slip
- Finger Thumb Option:
- --Thumb Hole--
- Packaging:
- Bulk Banded
- Taa Comp:
- 1
- High Frequency:
- 0
- Medium Frequency:
- 0
- Low Frequency:
- 0
- Wash Instructions:
- Machine Wash
- Wash Temp:
- Water Temp 40°C
- Bleach:
- Do Not Bleach
- Dry Instructions:
- Tumble Dry
- Dry Temp:
- Low Heat
- Package Size:
- Each
- Case Quantity:
- 72
