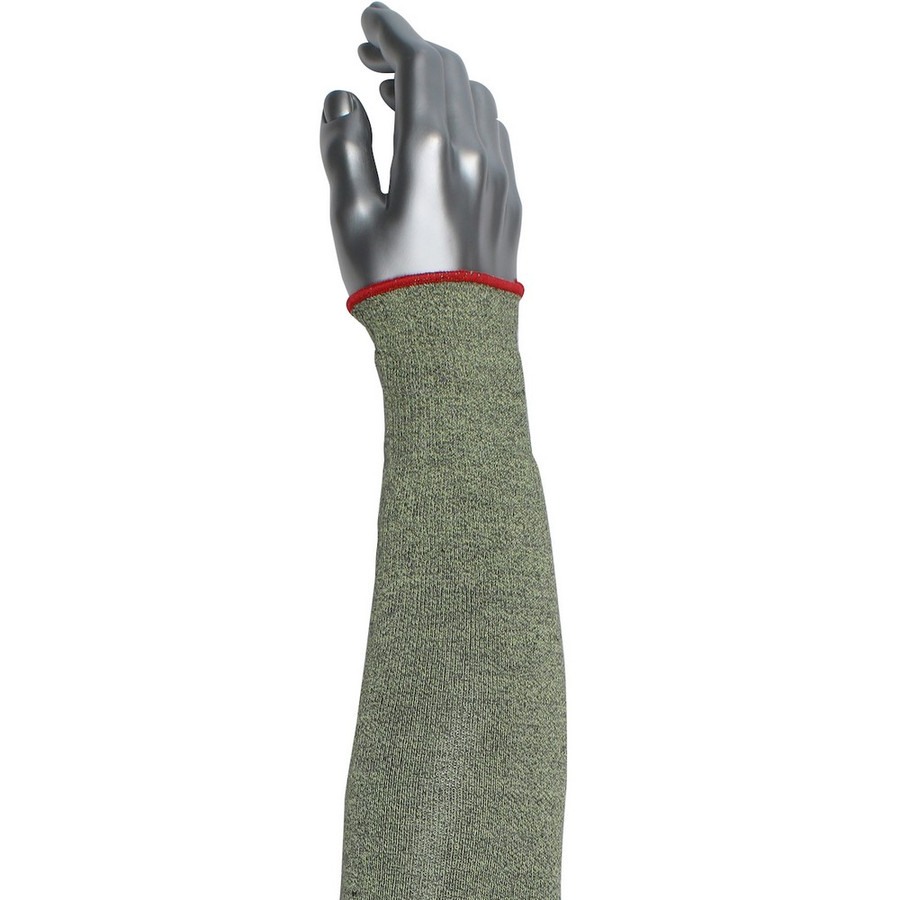

The PIP S13ATAFR/2HA-NW-ES6-22 is a single-ply ATA/Hide-Away FR sleeve designed to provide lightweight cut protection in a flexible, knit form. Built with ATA Hide-Away technology, the sleeve delivers ANSI A2 cut resistance and meets established flame-test criteria (ASTM F1358, Vertical Flame Test Level 4). The 13-gauge knit fabric offers a cooler, more comfortable wear while still delivering protective performance for the arms during handling and processing tasks.
Distinctive features include three width options—narrow, standard, and wide—to accommodate a range of arm sizes and preferences. An overedge color code (red for narrow, yellow for standard, green for wide) helps with quick size identification, and a non-slip top arm helps keep the sleeve in place during motion. The knit wrist stays in place with less constriction than traditional elastic wrists, contributing to continued protection from the forearm through the hand. The sleeve also provides abrasion resistance (ANSI Abrasion Level 1, 280 cycles) and is constructed using machine-knit ATA fibers with a Hide-Away liner, offering a balance of protection and comfort.
Suitable for use in environments where cut resistance and flame resistance are considerations, this sleeve is designed for easy maintenance and lifecycle management. It’s washable, with machine-wash instructions and a 40°C wash temperature, and rated for tumble drying on low heat. Packaging is bulk-banded, and the product ships in cases with 72 units per case, which is useful for stocking and bulk purchases. The product is described as recyclable via the Terracycle program and reusable/launderable, aligning with durability and sustainability considerations in PPE choices.
Features:
- ANSI A2 cut protection with ASTM F1358-08 Level 4 flame performance
- Three widths available: narrow, standard, wide for personalized fit
- Lightweight 13 gauge knit for cool, comfortable wear
- Color-coded width indicators for easy sorting (red = narrow, yellow = standard, green = wide)
- No-slip top edge to help sleeves stay in place
- Knit wrist offers protection from top to bottom without binding
- ASTM D3884-09 Level 2 abrasion resistance
- Liner Material:
- ATA Fiber Technology, Hide-Away
- Sustainability:
- Recyclable via Terracycle Program, Reusable / Launderable
- ANSI Method:
- TDM
- ANSI Gram:
- 750
- ANSI Cut Level:
- A2
- ANSI Abrasion Level:
- 1
- ANSI Abrasion Cycles:
- 280
- Construction:
- Machine Knit
- ASTM F1060:
- 2
- ASTM F1060 Temp:
- 284° F
- ASTM F1358:
- 4
- Ply:
- Single-Ply
- Top Arm Option:
- Non-Slip
- Packaging:
- Bulk Banded
- Taa Comp:
- 1
- High Frequency:
- 0
- Medium Frequency:
- 0
- Low Frequency:
- 0
- Wash Instructions:
- Machine Wash
- Wash Temp:
- Water Temp 40°C
- Bleach:
- Do Not Bleach
- Dry Instructions:
- Tumble Dry
- Dry Temp:
- Low Heat
- Package Size:
- Each
- Case Quantity:
- 72
