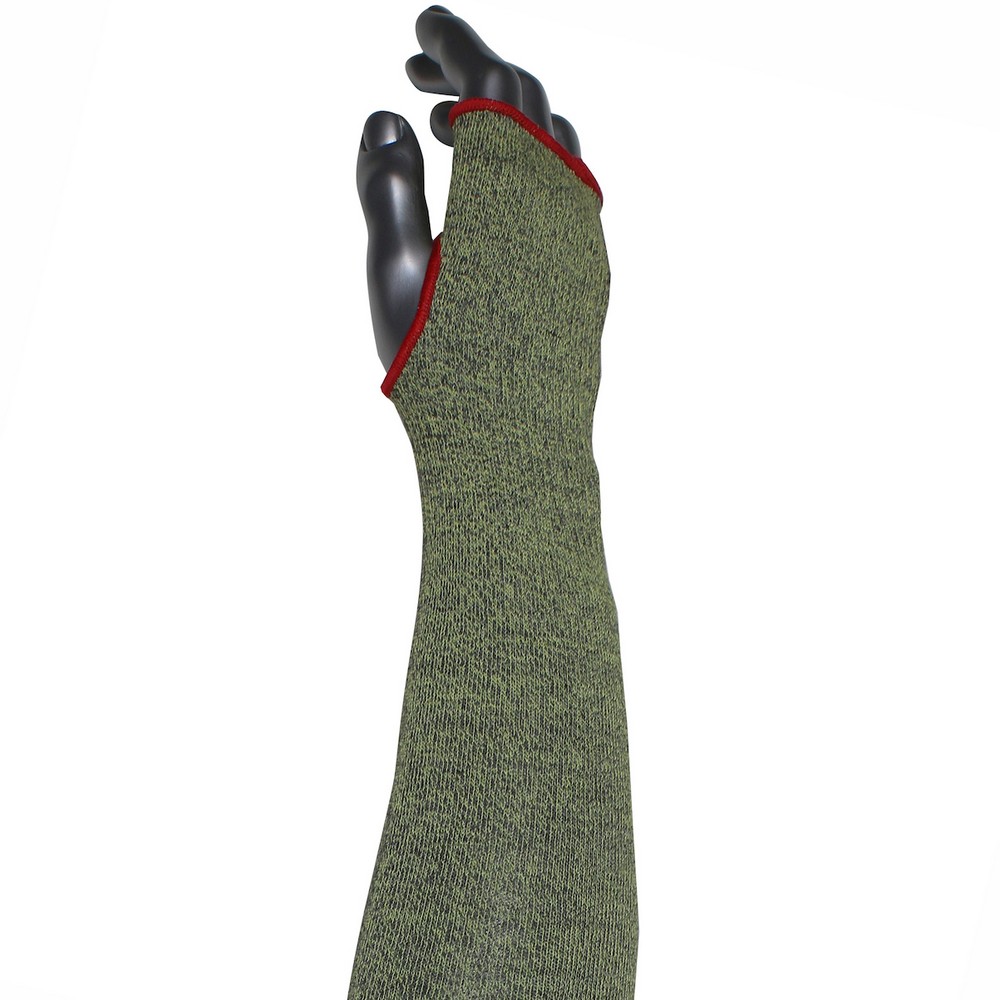

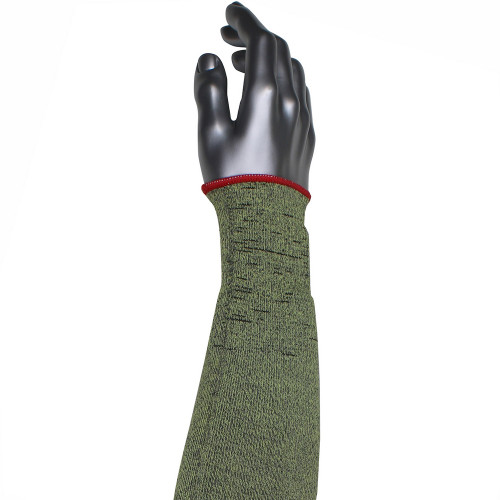

The PIP S13ATAFR/4HA-NW-ES6-18T is a single-ply ATA Hide-Away FR sleeve designed to provide cut resistance in a lightweight knit form. It leverages ATA Fiber Technology to deliver ANSI A4 level protection and supports an ASTM F1358-08 Vertical Flame Test that passes Level 4, offering a combination of cut resistance and flame performance in a compact 13-gauge construction. The sleeve is available in three widths—narrow, standard, and wide—to accommodate different arm sizes, with a color-coded overedge (red for narrow, yellow for standard, green for wide) to simplify size identification. The knit wrist and a no-slip top band help keep the sleeve in place during use, contributing to consistent coverage from forearm to wrist without excessive constriction.
Construction features include a machine-knit, seamless design using aramid-based ATA fiber technology with stainless steel wire, which supports durability while maintaining a lighter feel. The material is rated for abrasion resistance (ASTM D3884-09 Level 1, 200 cycles) and meets multiple ANSI metrics (Cut Level 4 / A4, Abrasion Level 1), alongside an accompanying ASTM F1060 temperature rating to 284°F. The sleeve is designed for practical workplace use with washability—machine washable at 40°C and tumble dry on low heat—and it is reusable and recyclable via the Terracycle program where available.
The sleeve is offered in bulk-banded packaging, with each unit sized and packaged for bulk distribution. A spec sheet is available for download to help verify compatibility with specific job tasks and safety programs. When selecting, consider arm size, anticipated exposure (cut and heat resistance), and maintenance routines to ensure long-term fit and performance.
Features:
- ANSI A4 cut protection with ASTM F1358-08 Level 4 flame resistance
- Three widths available: narrow, standard, wide for a personalized fit
- Lightweight 13 gauge knit for cool, comfortable wear
- Color-coded overedge to indicate width (red = narrow, yellow = standard, green = wide)
- No-Slip top edge helps sleeves stay in place
- Seamless knit wrist provides protection from top to bottom
- ASTM F1060 and related specs for durability
- Liner Material:
- Aramid, ATA Fiber Technology, Stainless Steel Wire
- Sustainability:
- Recyclable via Terracycle Program, Reusable / Launderable
- ANSI Method:
- TDM
- ANSI Gram:
- 2008
- ANSI Cut:
- 4
- ANSI Cut Level:
- A4
- ANSI Abrasion Level:
- 1
- ANSI Abrasion Cycles:
- 200
- Construction:
- Machine Knit, Seamless Knit
- ASTM F1060:
- 2
- ASTM F1060 Temp:
- 284° F
- ASTM F1358:
- 4
- Ply:
- Single-Ply
- Top Arm Option:
- Non-Slip
- Finger Thumb Option:
- --Thumb Hole--
- Packaging:
- Bulk Banded
- Taa Comp:
- 1
- High Frequency:
- 0
- Medium Frequency:
- 0
- Low Frequency:
- 0
- Wash Instructions:
- Machine Wash
- Wash Temp:
- Water Temp 40°C
- Bleach:
- Do Not Bleach
- Dry Instructions:
- Tumble Dry
- Dry Temp:
- Low Heat
- Package Size:
- Each
- Case Quantity:
- 72
