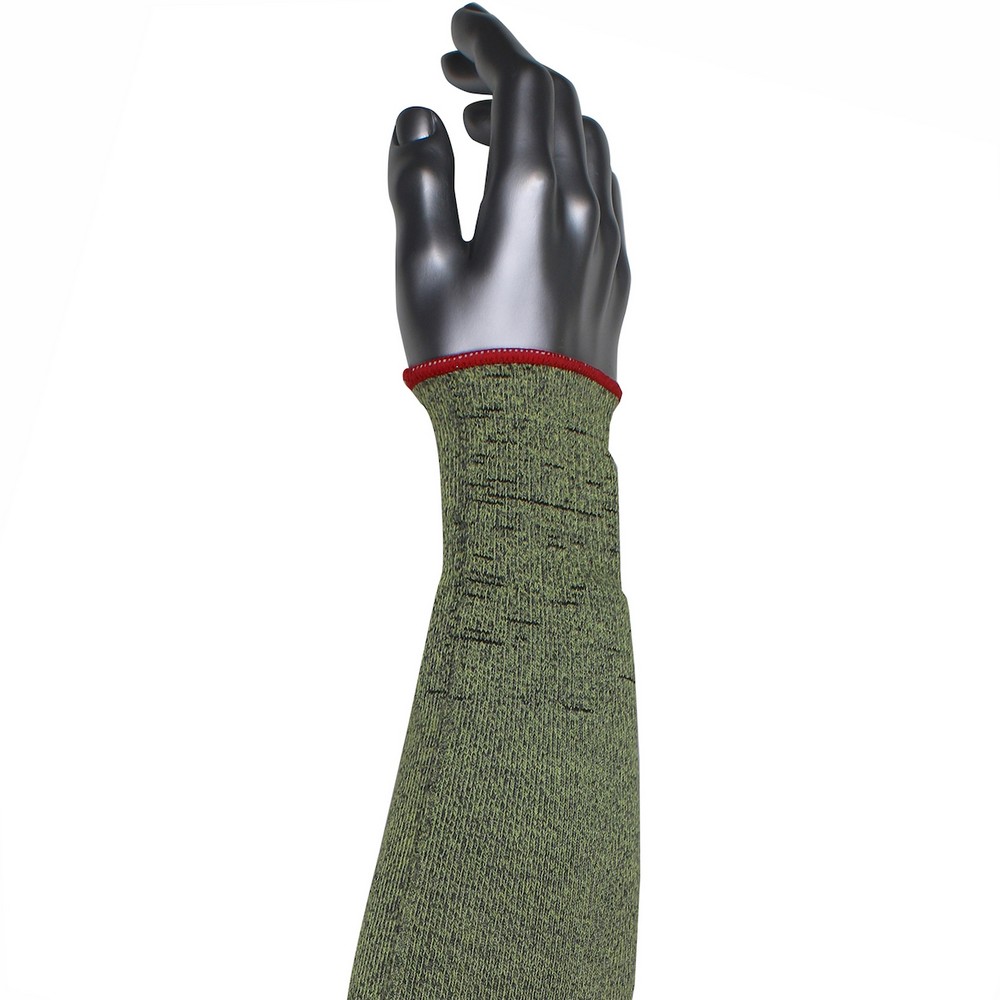

The PIP S13ATAFR/4HA-NW-ES6-18 is a single-ply, lightweight arm sleeve designed to provide ANSI A4 cut resistance using ATA Hide-Away FR technology. This knit sleeve is built with a 13-gauge construction and is offered in three widths for a personalized fit to accommodate varying arm sizes, from thinner to bulkier arms. The color-coded overedge helps distinguish width for sorting, and the top features a non-slip band to help keep the sleeve in place during use. A knit wrist provides coverage from top to bottom without the tight feel of a traditional elastic cuff, contributing to consistent protection along the forearm while maintaining airflow and comfort.
Construction combines aramid, ATA Fiber Technology, and stainless steel wire to achieve cut resistance, while the fabric is designed for recyclability and laundering, aligning with sustainability considerations. The sleeve also provides abrasion resistance at a basic level (ASTM D3884-09 Level 1) and has a documented temperature tolerance suitable for high-heat environments as indicated by ASTM F1060 ratings, making it appropriate for tasks that involve exposure to heat and potential cut hazards. The ATA technology delivers ANSI A4 cut protection and has demonstrated vertical flame resistance consistent with the specified standards, supporting use in environments where both cut and flame considerations matter.
Users can pair these sleeves with other PPE in the field and select the width that best fits their arm profile for better wearability and protection. The product is packaged in bulk and sold per piece, with a case quantity of 72, and it is machine washable with a 40°C wash temperature and low-heat tumble dry, offering practical maintenance for repeated use. It’s helpful to review the included spec sheet for detailed performance data and ensure compatibility with your task-specific safety requirements.
Features:
- ANSI A4 cut protection (ASTM F1358-08 Vertical Flame Test - Passes Level 4)
- Three widths available: narrow, standard, wide for personalized fit
- Lightweight 13-gauge knit for comfort
- Color-coded overedge by width (red=narrow, yellow=standard, green=wide)
- No-slip top elastic to help sleeve stay in place
- Knit wrist provides coverage from top to bottom without tight binding
- ASTM D3884-09 Level 1 abrasion resistance
- Liner Material:
- Aramid, ATA Fiber Technology, Stainless Steel Wire
- Sustainability:
- Recyclable via Terracycle Program, Reusable / Launderable
- ANSI Method:
- TDM
- ANSI Gram:
- 2008
- ANSI Cut:
- 4
- ANSI Cut Level:
- A4
- ANSI Abrasion Level:
- 1
- ANSI Abrasion Cycles:
- 200
- Construction:
- Machine Knit, Seamless Knit
- ASTM F1060:
- 2
- ASTM F1060 Temp:
- 284° F
- ASTM F1358:
- 4
- Ply:
- Single-Ply
- Top Arm Option:
- Non-Slip
- Finger Thumb Option:
- --Thumb Hole--
- Packaging:
- Bulk Banded
- Taa Comp:
- 1
- High Frequency:
- 0
- Medium Frequency:
- 0
- Low Frequency:
- 0
- Wash Instructions:
- Machine Wash
- Wash Temp:
- Water Temp 40°C
- Bleach:
- Do Not Bleach
- Dry Instructions:
- Tumble Dry
- Dry Temp:
- Low Heat
- Package Size:
- Each
- Case Quantity:
- 72
