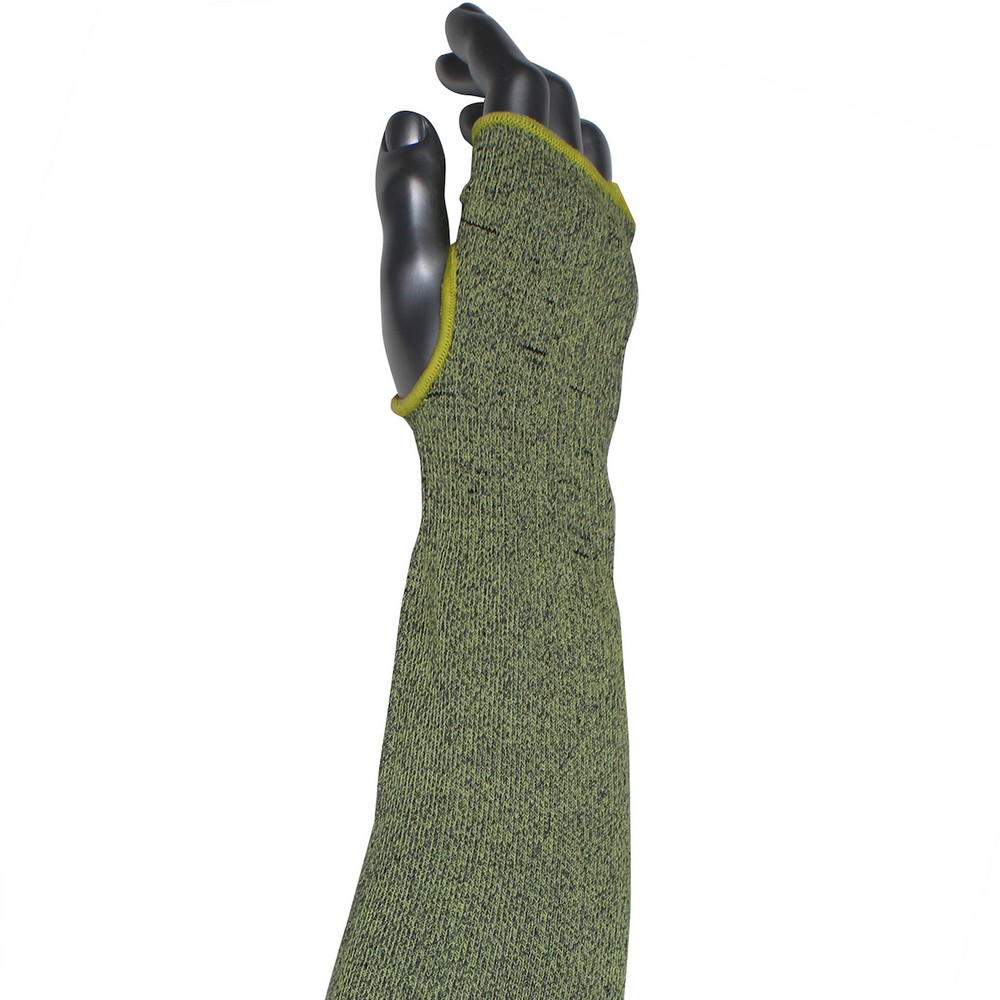

The PIP S13ATAFR/4HA-ES6-18T Single-Ply ATA / Hide-Away FR Blended Sleeve with Thumb Hole is a lightweight arm protection option designed to deliver cut resistance and flame resistance in a comfortable, knit sleeve. Built with ATA Fiber Technology, this sleeve achieves ANSI A4 cut protection while also passing a vertical flame test (ASTM F1358-08, Level 4). The sleeve is constructed as a seamless, machine-knit 13-gauge knit, which helps keep the wrist area in place with a knit wrist design that is less binding than traditional elastic wrists while still providing coverage from the top to the bottom of the forearm. This model includes a Thumb Hole option, contributing to a secure fit during arm movement and reducing sleeve displacement during tasks.

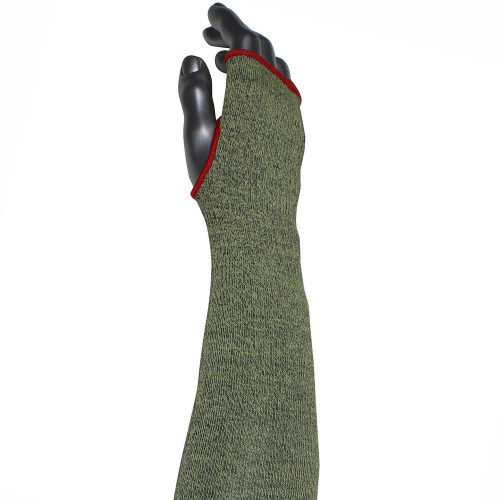

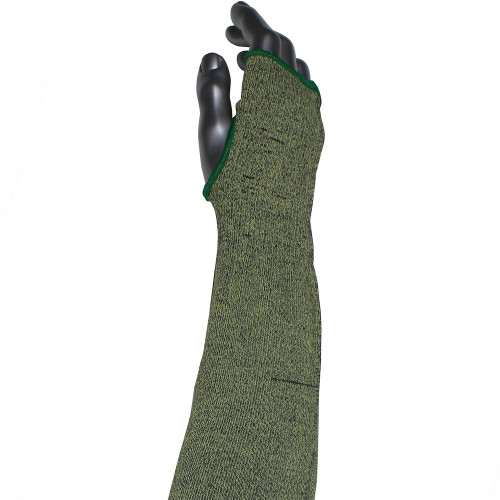

Three widths are available (narrow, standard, wide) to accommodate different arm sizes and provide a personalized fit, making it suitable for workers ranging from thin to bulky arms. Color-coded overedges indicate sleeve width (red = narrow, yellow = standard, green = wide) to simplify sorting and inventory management in busy environments. The sleeve offers abrasion resistance (ASTM D3884-09, Level 1) and a measured ANSI abrasion performance (200 cycles), which helps illustrate its durability under repetitive contact. In addition to protection, this sleeve is designed for practical maintenance: it tolerates machine washing at 40°C and tumble drying on low heat, with a recyclable and reusable profile supported by Terracycle programs.
Typical applications include tasks requiring forearm protection from cut and flame exposure where arm movement and fit are important. It is compatible with bulk banded packaging and is sold in case quantities of 72, with individual sizing and widths coordinated by the color-coded edging. Refer to the included spec sheet for detailed testing and material information to ensure the sleeve meets your specific safety and durability requirements.
Features:
- ANSI A4 cut protection with ATA Hide-Away FR Technology
- Three width options: narrow, standard, wide
- Lightweight 13-gauge knit for comfort
- Color-coded overedge indicates width for easy sorting (red, yellow, green)
- Knit wrist stays in place for full-arm protection
- ASTM D3884-09 Level 1 abrasion resistance
- Liner Material:
- Aramid, ATA Fiber Technology, Stainless Steel Wire
- Sustainability:
- Recyclable via Terracycle Program, Reusable / Launderable
- ANSI Method:
- TDM
- ANSI Gram:
- 2008
- ANSI Cut:
- 4
- ANSI Cut Level:
- A4
- ANSI Abrasion Level:
- 1
- ANSI Abrasion Cycles:
- 200
- Construction:
- Machine Knit, Seamless Knit
- ASTM F1060:
- 2
- ASTM F1060 Temp:
- 284° F
- ASTM F1358:
- 4
- Ply:
- Single-Ply
- Top Arm Option:
- Non-Slip
- Finger Thumb Option:
- --Thumb Hole--
- Packaging:
- Bulk Banded
- Taa Comp:
- 1
- High Frequency:
- 0
- Medium Frequency:
- 0
- Low Frequency:
- 0
- Wash Instructions:
- Machine Wash
- Wash Temp:
- Water Temp 40°C
- Bleach:
- Do Not Bleach
- Dry Instructions:
- Tumble Dry
- Dry Temp:
- Low Heat
- Package Size:
- Each
- Case Quantity:
- 72
