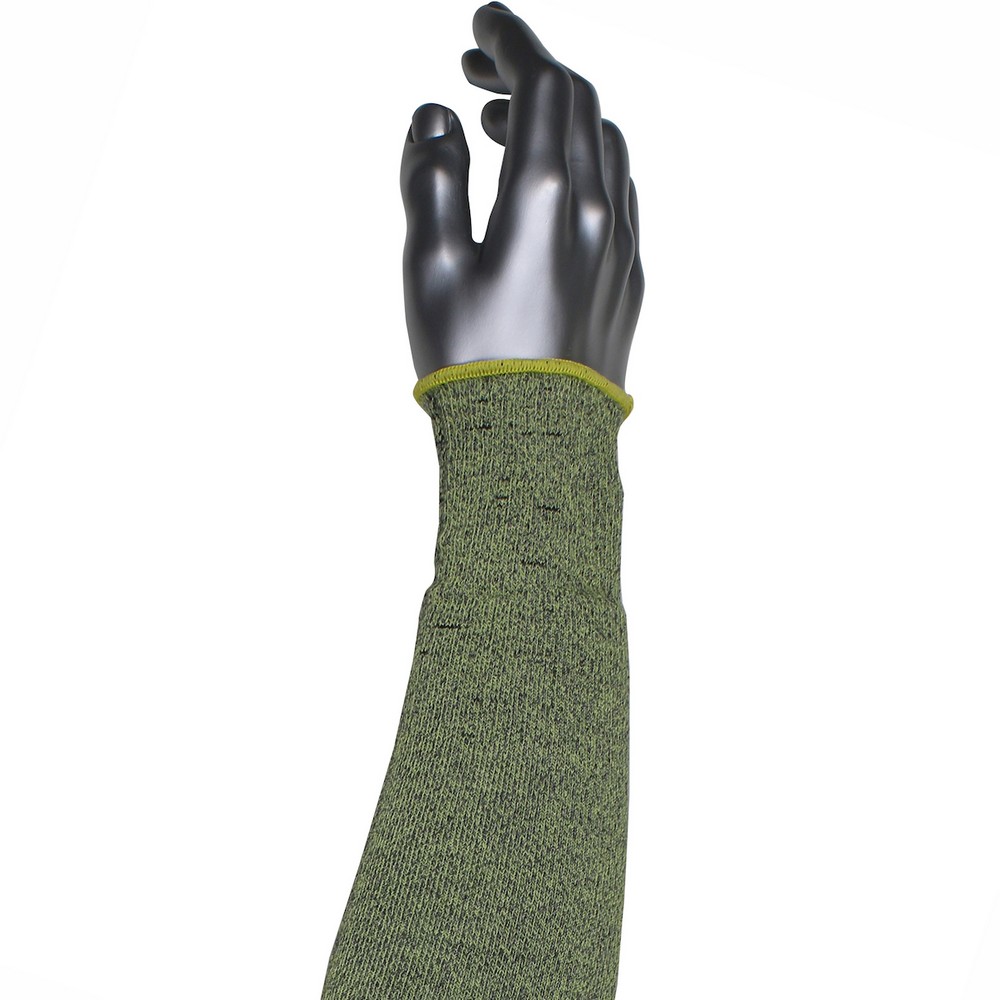

The PIP S13ATAFR/4HA-ES6-18 Single-Ply ATA / Hide-Away FR Blended Sleeve is designed to provide cut resistance in a lightweight form factor for workers who need arm protection without added bulk. It employs ATA Hide-Away FR technology, delivering ANSI A4 cut protection with a capability demonstrated through the ASTM F1358-08 vertical flame test (Level 4). The sleeve is knit in a single-ply, 13-gauge construction and features a non-slip top arm option to help keep the sleeve in place during movement, along with a knit wrist designed to stay snug without excessive constriction. Color-coded overedge indicates width options (narrow, standard, and wide) to help match fit to arm size, which supports comfort and range of motion for workers with varying arm dimensions.
The sleeve’s liner incorporates a blend of aramid, ATA fiber technology, and stainless steel wire, contributing to its protective profile while remaining relatively lightweight. It also offers practical maintenance advantages: the product is machine washable and suitable for tumble drying on low heat, with a standard packaging approach described as bulk banded. The material setup supports recyclability through TerraCycle and allows for reuse or laundering, which can help reduce waste in busy facilities. The documented abrasion resistance is Level 1 per ASTM D3884-09, with 200 abrasion cycles, indicating durability under repetitive contact against rough surfaces.
This sleeve is compatible with professionals who need arm protection across tasks that may involve cutting or abrasion. It is offered in three width configurations to accommodate a range of arm sizes and shapes, and the top- and wrist construction is chosen to reduce slipping and binding. For users managing inventory, the bulk packaging and a case quantity of 72 make stocking easier, while the included spec sheet reference provides access to the full technical details for procurement or safety audits.
Features:
- ANSI A4 cut protection with ASTM F1358-08 Level 4 flame resistance
- Three width options: narrow, standard, wide for personalized fit
- Lightweight 13 gauge knit; cool and comfortable wear
- Color-coded overedge (red = narrow, yellow = standard, green = wide)
- No-Slip top and knit wrist for secure coverage
- Single-ply construction with ATA Fiber Technology and stainless steel wire
- Machine washable and tumble dry compatible
- Liner Material:
- Aramid, ATA Fiber Technology, Stainless Steel Wire
- Sustainability:
- Recyclable via Terracycle Program, Reusable / Launderable
- ANSI Method:
- TDM
- ANSI Gram:
- 2008
- ANSI Cut:
- 4
- ANSI Cut Level:
- A4
- ANSI Abrasion Level:
- 1
- ANSI Abrasion Cycles:
- 200
- Construction:
- Machine Knit, Seamless Knit
- ASTM F1060:
- 2
- ASTM F1060 Temp:
- 284° F
- ASTM F1358:
- 4
- Ply:
- Single-Ply
- Top Arm Option:
- Non-Slip
- Packaging:
- Bulk Banded
- Taa Comp:
- 1
- High Frequency:
- 0
- Medium Frequency:
- 0
- Low Frequency:
- 0
- Wash Instructions:
- Machine Wash
- Wash Temp:
- Water Temp 40°C
- Bleach:
- Do Not Bleach
- Dry Instructions:
- Tumble Dry
- Dry Temp:
- Low Heat
- Package Size:
- Each
- Case Quantity:
- 72
