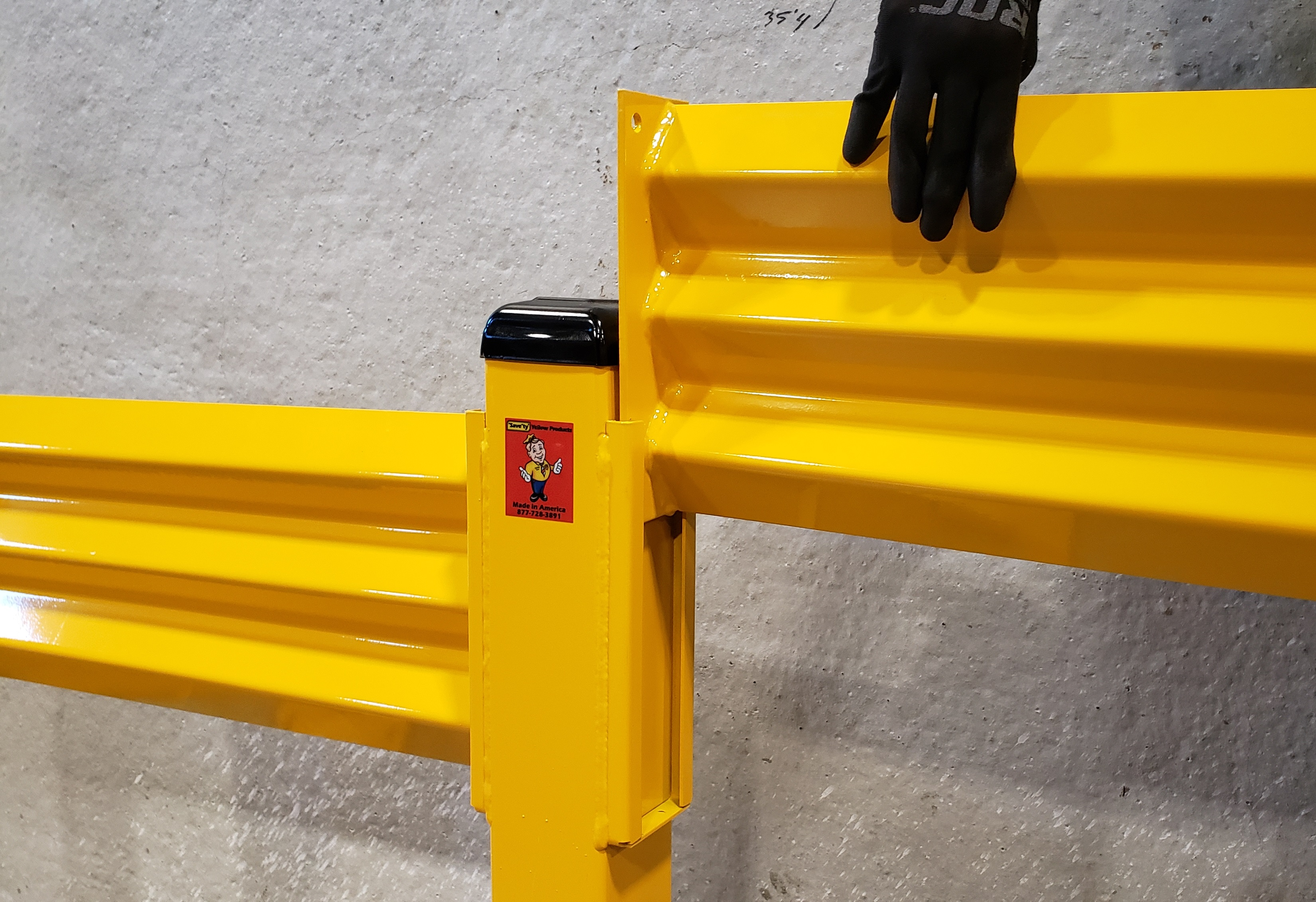

Savety Yellow 4RPE-42-DBL-OFFSET 42" Double Offset End Post Guardrail

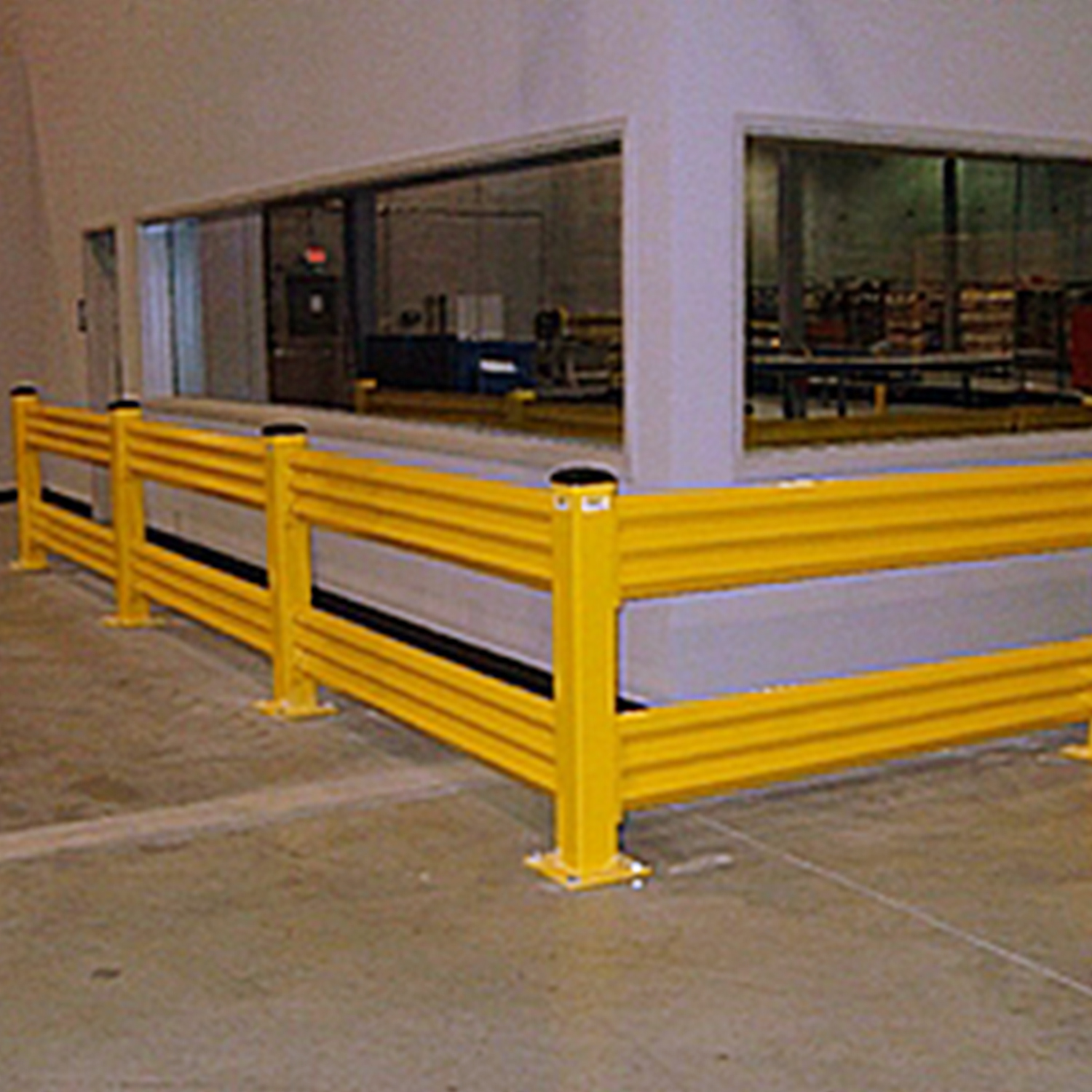

The Savety Yellow 42" Double Offset End Post Guardrail is a structural component designed to extend and anchor guard rail systems in facility settings. Crafted from 10-gauge high-tensile steel, this end post provides the terminus for rails, helping to create a stable barrier that aligns with adjacent sections and maintains the intended protective geometry. The product features a 4" post with a base plate measuring 10" x 10" x 1/2", rated for up to 10,000 lb at 5 mph impact, demonstrating its capacity to absorb and distribute collision forces along the guard rail system.

A key assembly detail is the welded sleeve connection directly to the post, eliminating the need for separate brackets and simplifying installation. Available in 42" height, the end post is designed to pair with Savety Yellow rails that can be specified in lengths from 2' to 10' (one-foot increments), ensuring a configurable run that matches corridor or workplace layouts. The system accommodates 5/8" x 4.75" anchors upon request, adding a mounting option for certain substrates or installation conditions. The combination of high-tensile steel, welded sleeves, and a fixed, compliant base plate contributes to a robust, dependable end-point for guard rail installations.

When planning usage, consider the overall system height, rail length, and substrate compatibility to ensure proper load transfer and stability. The 42" end post must be paired with corresponding rails within the supported length range, and installation should reflect any site-specific anchoring requirements if optional anchors are used. This end post is packaged as a single unit and is intended to be installed as part of a Savety Yellow guard rail system rather than as a standalone barrier.

Features:

• Rails are constructed of 10 gauge high-tensile steel.
• 4" posts have a 10" x 10" x 1/2" base plate with a 10,000 lb at 5 mph impact rating.
• Installs in half the time. No hardware needed.
• Sleeves are welded directly to the posts. No brackets required.
• Posts available in heights of 18", 26", and 42".
• Rails available in 2' through 10' lengths (one-foot increments).
• 5/8" x 4.75" anchors available upon request.
