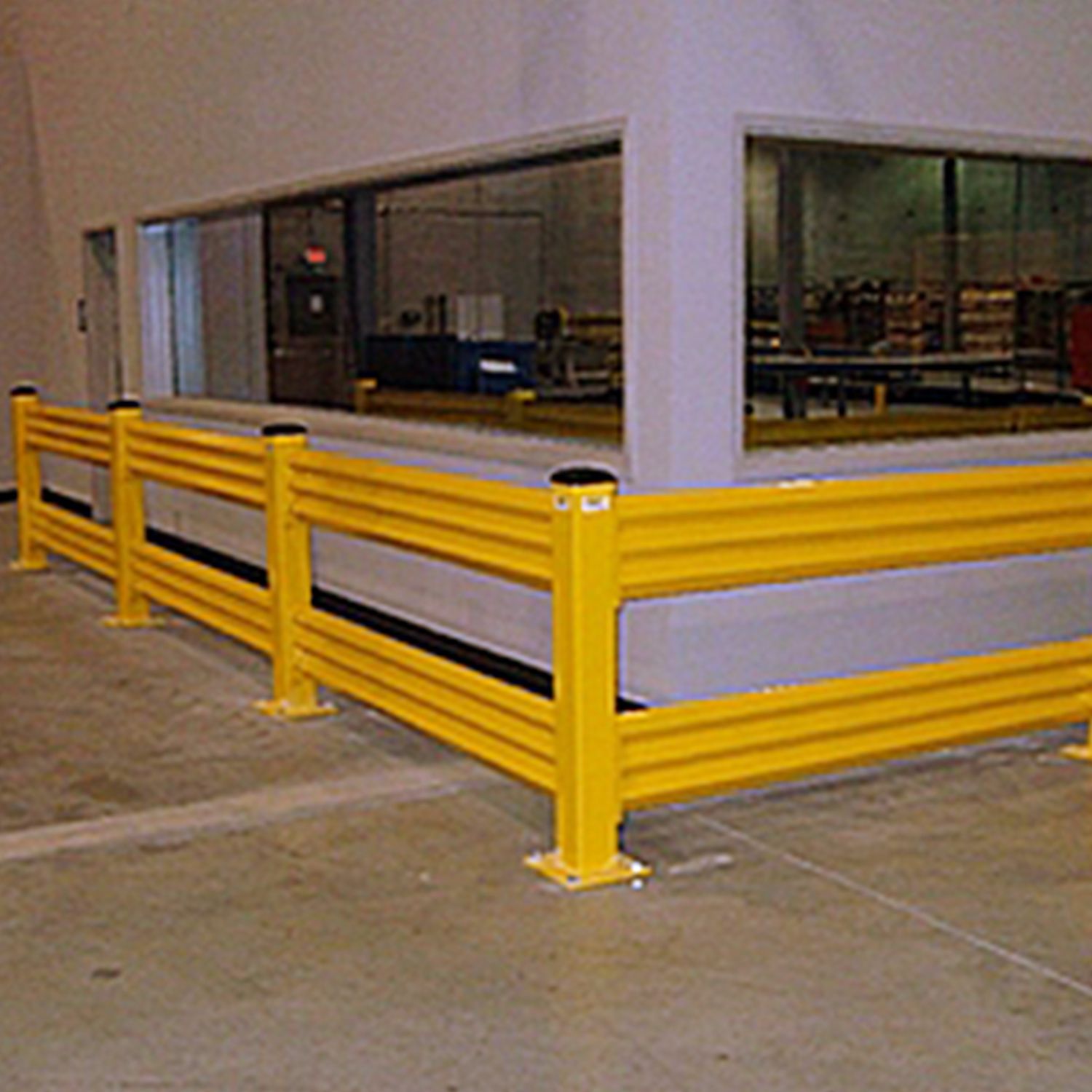

Savety Yellow 5RPIN-42-DBL 42" Double Heavy Duty In-Line Post Guardrail

The Savety Yellow 42" Double Heavy Duty In-Line Post Guardrail is a robust guarding solution designed for facility perimeters and work-zone delineation. Crafted from 10-gauge high-tensile steel, these guard rails provide a sturdy barrier with a 42-inch tall post configuration that supports reliable, long-term use in demanding environments. Each 5-inch post sits on a substantial 10" x 10" x 1/2" base plate, capable of withstanding impacts up to 10,000 lb at 5 mph, which helps absorb incidental contact and protect machinery, personnel, and inventory.

A key design feature is the attachment method: sleeves are welded directly to the posts, eliminating brackets or separate hardware and reducing installation time. This in-line post structure combines with rails offered in lengths from 2' to 10' (in 1-foot increments) to create customizable enclosures and pathways that align with specific floor plans and workflow needs. The rails are measured center-to-center from post to post, ensuring consistent alignment throughout the run. Rails and posts are available in colors and heights consistent with Savety Yellow offerings, with the option to specify 5/8" x 4.75" anchors on request for securing installations where floor penetration is appropriate.

This product is suitable for industrial and warehouse settings where durable, straightforward guardrail solutions are needed to define spaces, cordon off work zones, or protect equipment. When planning installation, consider the 42" post height relative to ceiling clearance and the available rail lengths to achieve the desired enclosure. The 42" post and 5

Features:

• Rails are constructed of 10 gauge high-tensile steel.
• 5" posts have a 10" x 10" x 1/2" base plate with 10,000 lb at 5 mph impact rating.
• Installs in half the time. No hardware needed.

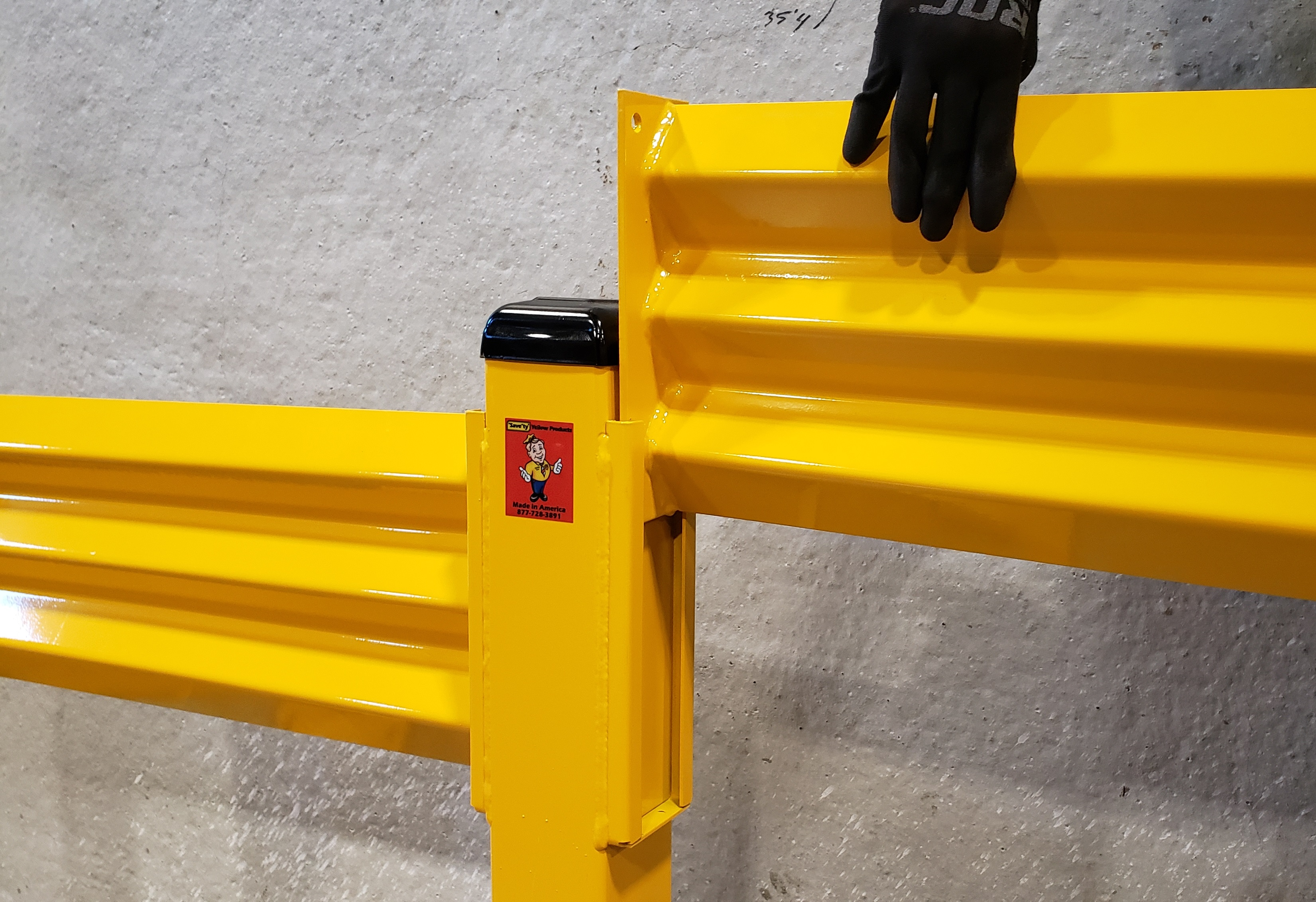

• Sleeves are welded directly to the posts. No costly brackets as an afterthought.
• Posts available in heights of 18", 26" & 42"
• Rails available in 2' through 10' (one-foot increments).
• Rails measure center to center of post.
• 5/8" x 4.75" anchors available upon request.
