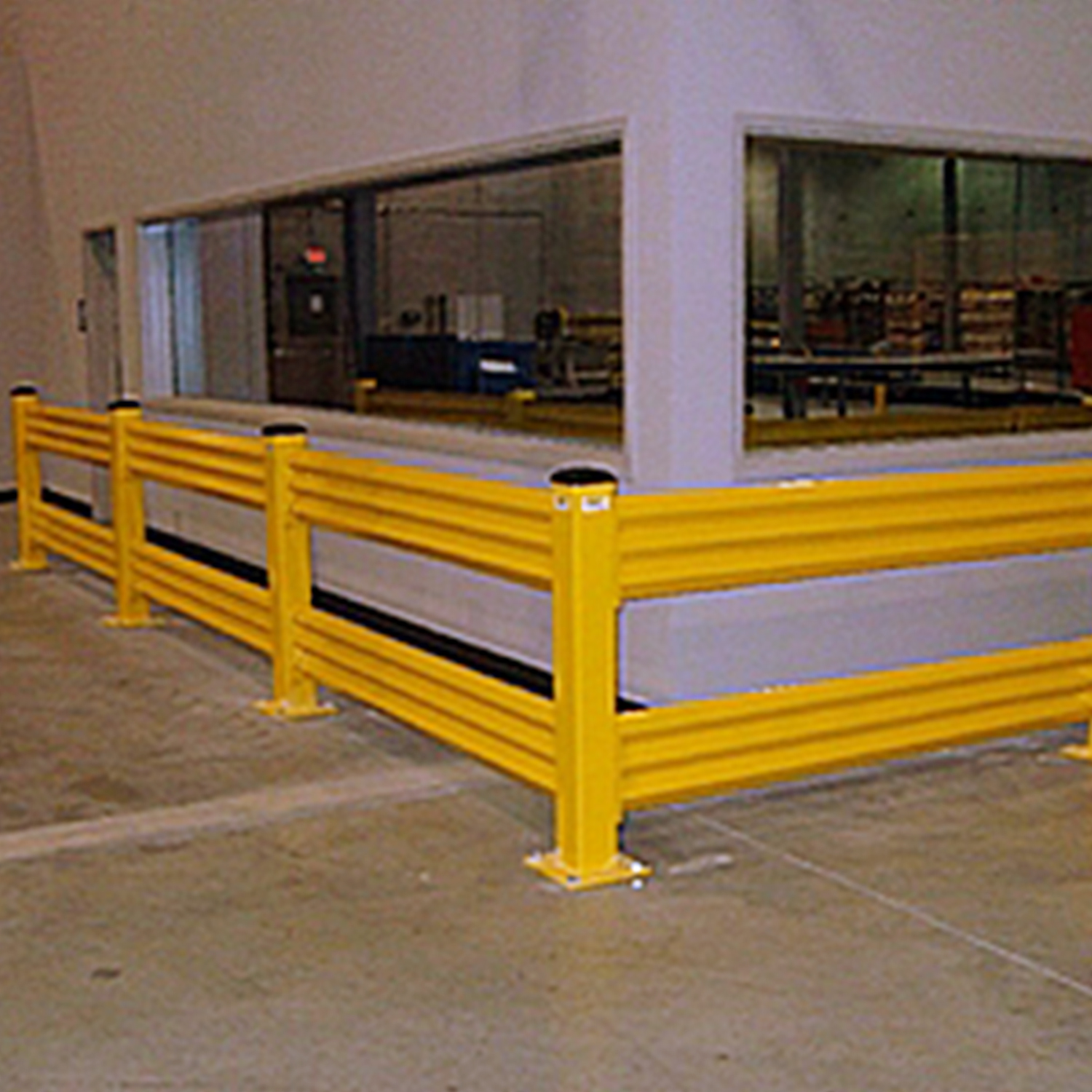

The Savety Yellow 42" Double Heavy Duty End Post Guardrail is a robust end-post component designed to cap and terminate guard rail runs in facility maintenance settings. Built to support high-tensile steel rails, this end post provides a solid termination point for 42-inch high rails, facilitating a continuous, secure barrier along loading docks, work zones, or warehouse perimeters. Each 5" post sits on a substantial base plate to distribute impact loads, contributing to a rated performance of 10,000 lb at 5 mph for the end-plate assembly when installed correctly, an important consideration for safeguarding crews and equipment in busy environments.
The construction details emphasize reliability and installation efficiency. Sleeves are welded directly to the posts, eliminating the need for separate brackets and reducing assembly time. This design choice helps minimize hardware components and potential misalignment, which can improve overall system stability. Available post heights include 18", 26", and 42", with rails offered from 2' to 10' in one-foot increments, measured center-to-center between posts. Optional 5/8" x 4.75" anchors are available on request to secure the end post more firmly in concrete substrates.
This product is specified as a high-visibility yellow finish, oriented for facility environments that require clear delineation of barriers and safe walkways or vehicle pathways. When selecting components, ensure rail length and post height are matched to your application needs and that anchor options align with your substrate for a proper, durable installation.
Features:
- 10 gauge high-tensile steel rails
- 5" posts with 10" x 10" x 1/2" base plate
- 10,000 lb at 5 mph impact rating
- Installs in half the time; no hardware needed

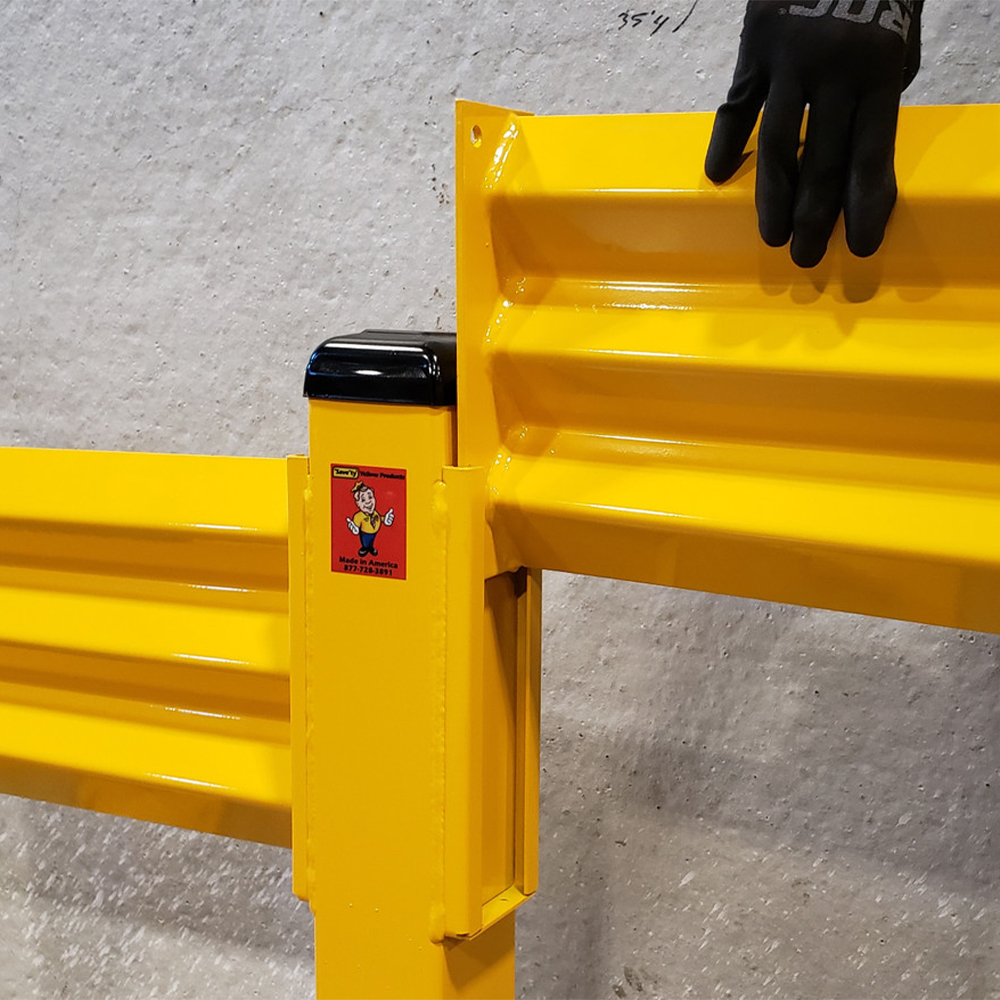

- Sleeves welded directly to posts; no brackets
- Post height options: 18", 26", 42"
- Rails available in 2'–10' (one-foot increments)
- 5/8" x 4.75" anchors available on request
- Height:
- 42
- Material:
- Steel
- Color:
- Yellow
- Package Size:
- Each
