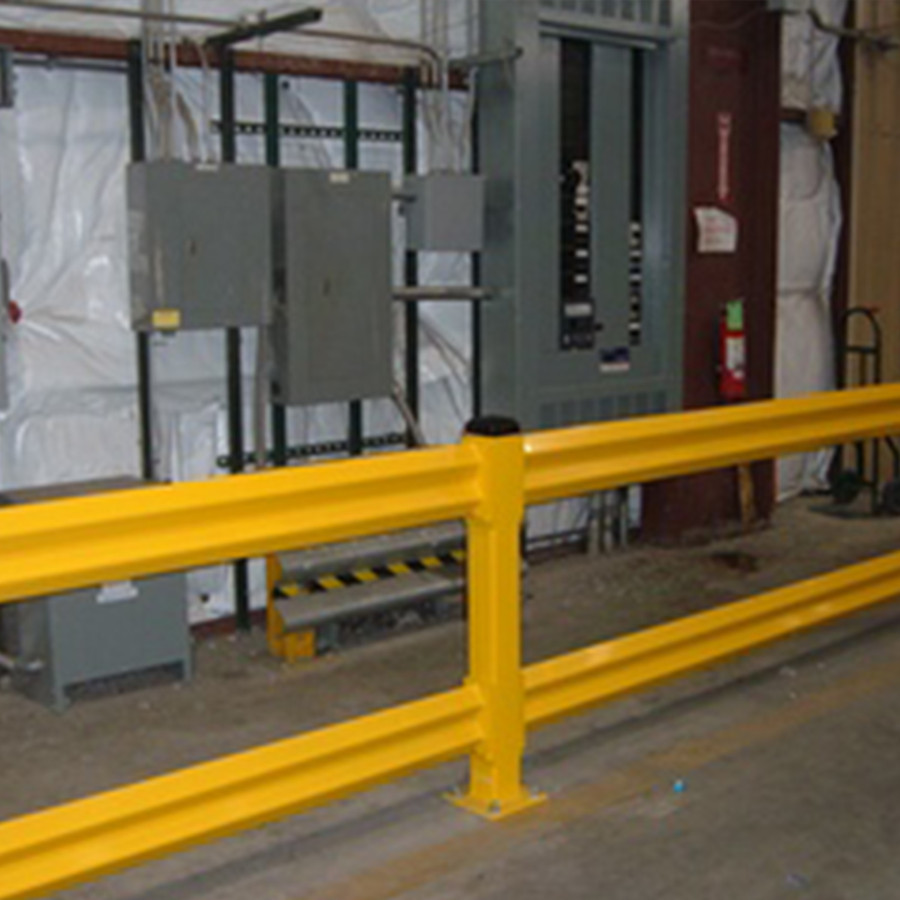

The Savety Yellow 4-LITE-END-42 is a lite-duty end post guardrail designed to cap and terminate Savety Yellow guard rails. Built for quick, straightforward installation, this 42-inch post adapts to in-line configurations where lighter-duty protection is appropriate in facility maintenance environments.
Constructed from 14-gauge high-tensile steel, the end post features welded sleeves to attach the rail assembly without separate brackets. The protection rails are intended for use with 4-inch posts and an 8-by-8 inch base plate, and they are available in multiple heights (18 inches and 42 inches) with rail lengths ranging from 2 to 10 feet in 1-foot increments. The system is rated to withstand up to 5,000 pounds of impact at 5 mph, providing a quantified performance expectation for light-duty corridor or work-area protection.
When planning installation, note that the assembled rails are designed to center-to-center measure between posts, and optional anchoring hardware (5/8 inch by 4.75 inch anchors) is available on request. The design emphasizes speed and simplicity—no hardware is required for some installations, and integrated sleeves reduce the need for additional brackets. This part is suitable for use in facilities requiring light-duty perimeter or traffic-channel protection with compatible Savety Yellow guard rail systems.
Features:
- Rails constructed from 14 gauge high-tensile steel
- Impact rating of 5,000 lbs at 5 mph
- Installs in half the time with no hardware required
- Sleeves welded to posts, eliminating costly brackets
- Rail fits 4" posts with 8" x 8" base plate
- Available heights: 18" and 42"
- Rails available in lengths from 2' to 10' (in 1' increments)
- Height:
- 42
- Material:
- Steel
- Color:
- Yellow
- Package Size:
- Each
