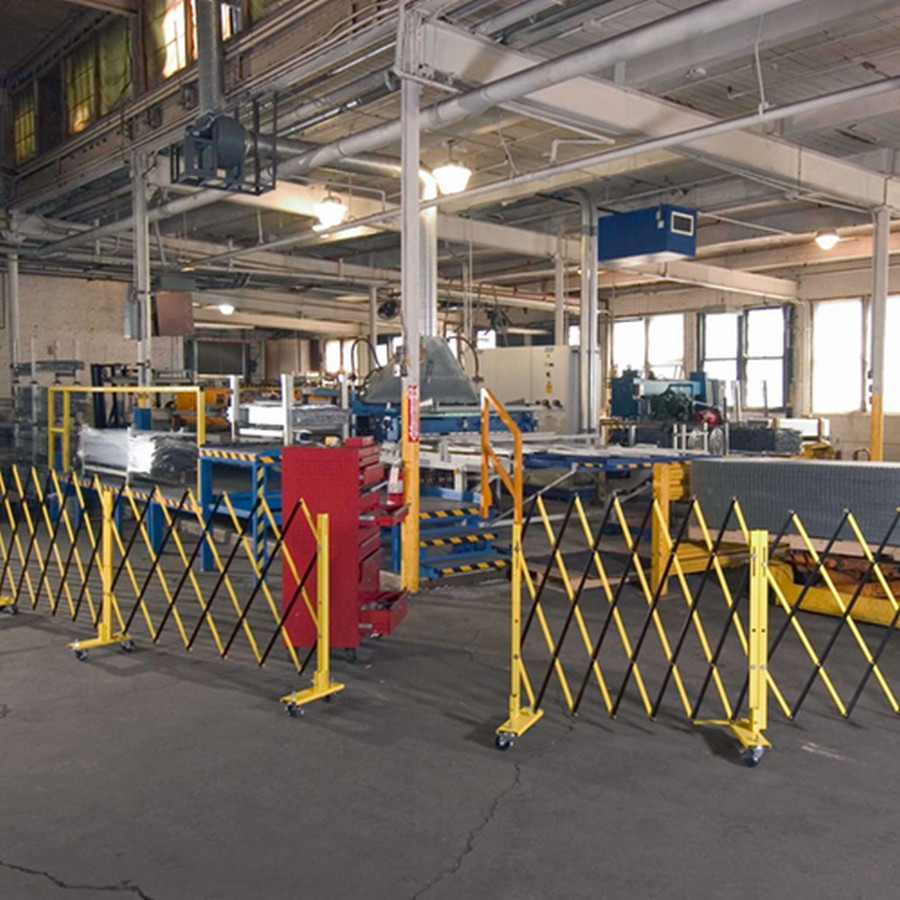

The Illinois Engineered Products XL1240 Mobile Barrier Gate, 12' wide Starter, is a freestanding, portable solution designed to temporarily block vehicle or foot traffic in work zones, maintenance areas, or other spaces requiring controlled access. Its mobile design supports quick deployment without permanent installation, making it suitable for temporary shutdowns, repairs, or cleaning tasks where light and air circulation must be preserved.
Constructed from galvanized steel and finished with a high-visibility black and yellow powder coating, the gate provides durable corrosion resistance and clear visibility for improved safety. The starter gate features a robust frame and lattice sections, with three axles and casters that enable easy positioning. The overall footprint and height specifications accommodate staggered storage and flexible placement while maintaining a secure barrier when deployed.
Recommended use cases include temporary access control at facilities, entryways, or work zones where controlled access is needed but not permanent. The unit ships unassembled, and its modular parts require basic assembly prior to use. The starter configuration is designed to pair with additional gates or extensions as your access control needs evolve, and it includes three rubber-locked casters to help position and secure the barrier on varied flooring surfaces. Consider the size and weight (approximately 90 lbs per unit) when planning handling, transport, and storage around your work site.
Features:
- Perfect for temporary access control
- Freestanding, portable barrier gates seal off hazards
- Allows light and air circulation while providing movable safety
- Galvanized steel with powder coating in safety colors for high visibility
- Designed for up to 12' wide openings
- 3" rubber locking casters and 14" wide axles for mobility
- 1-year manufacturer warranty
- Width:
- Up to 12'
- Height:
- 47
- Depth:
- 27 Stacked
- Expanded Height:
- 41
- Collapsed Height:
- 47
- Lattice:
- 3/8 x 3/4, 14 gauge galvanized channel steel riveted with 3/16 x 1/2 zinc plated steel rivets
- Frame:
- 1-1/2 x 1-1/2 12 gauge angle iron, powder coated
- Axle:
- 14 wide w/ 2 casters 3 dia, 3 axles per gate
- Straps:
- 1 long x 1-1/2 wide, 14 gauge CRS, powder coated
- Finish:
- Powder coat in yellow and black
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Mobile Barrier Gate Starter
- Casters:
- 3 Rubber Locking
- Weight:
- 90.0 lbs. ea.
- Package Size:
- Each
