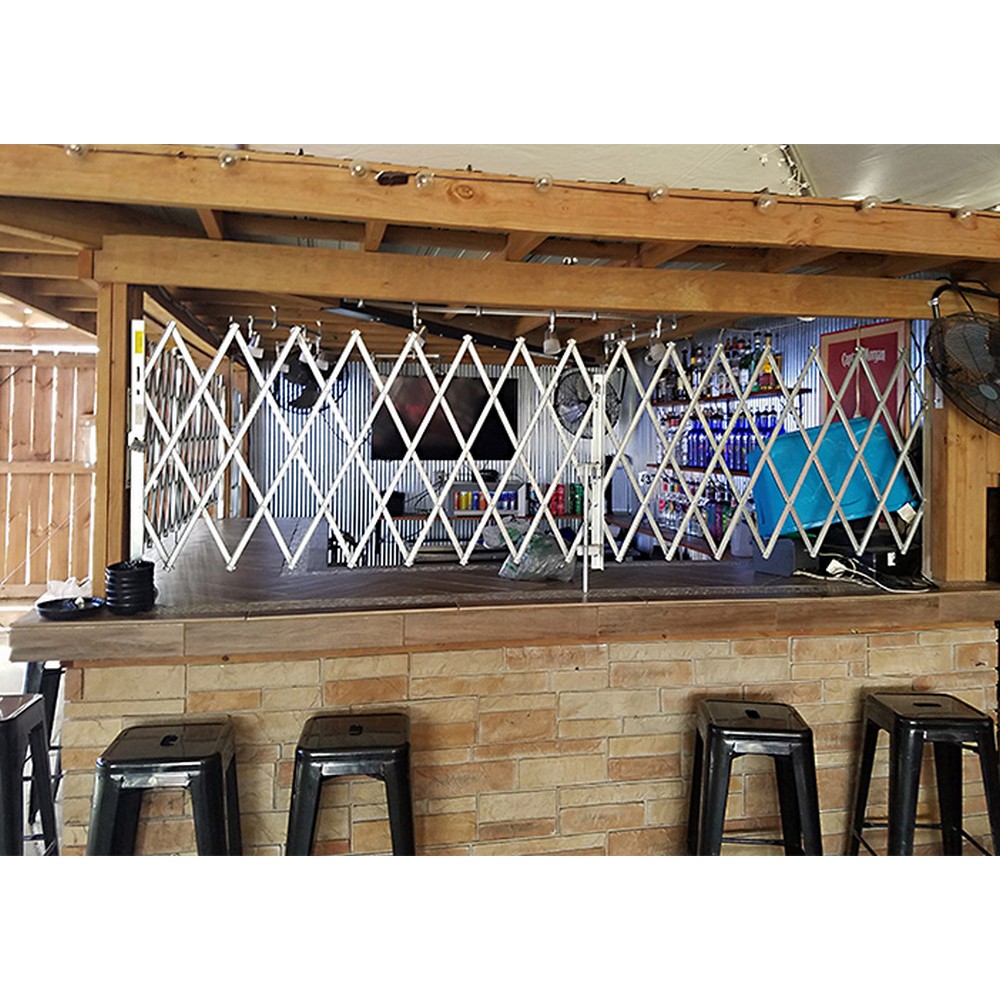

The Illinois Engineered Products SSG875-ANG is a single, retractable folding gate designed to secure doorways, hallways, and loading zones while preserving visibility, airflow, and access. This gate is built to be mounted quickly and mounted out of the way when not in use, helping you manage foot and forklift traffic without creating bottlenecks or blind spots. It features a sturdy 12-gauge steel vertical frame paired with 14-gauge steel webbing, and it arrives with galvanized finish for improved rust resistance and easier cleaning in industrial environments.
The gate retracts on its mounts, allowing the entire unit to pivot and move completely out of the opening, which minimizes obstruction during non-operational periods. When extended, the gate reduces height by 6 inches, a characteristic that should be considered in relation to door clearances and overhead obstructions. The assembly is designed for straightforward installation, with mounting brackets, bearing washer, and solid steel caster included to simplify setup. Note that lag bolts and padlock are not included, so you can choose compatible locking hardware to fit your security and access control needs.
This model is specified as a 7 to 8-foot wide single gate with a finished height of 7 feet 6 inches (collapsed height) and an expanded height of 7 feet, making it suitable for mid-to-wide openings in receiving docks, service doors, and entryways where light and air circulation must be maintained. The unit ships unassembled, which may affect installation time but allows for transport through tight access points. For customized finishes, a galvanized base is standard with the option for custom powder coating; consult for availability. The 90‑pound frame and assembly provide robust, reliable operation in demanding facility environments.
Features:
- Secures receiving doors, lift-up doors, hallways, and entryways with continuous airflow
- Heavy-duty construction: 12-gauge vertical frame with 14-gauge webbing
- Galvanized finish for durability, rust resistance, and easy cleaning
- Retracts to move completely out of the way
- Gates lose 6 inches in height when extended
- Includes mounting brackets, bearing washer, and solid steel caster
- Ships unassembled; lag bolts and padlock not included
- Width:
- 7' to 8'
- Height:
- 7' 6
- Depth:
- 11 stacked
- Fits Widths:
- 7' to 8'
- Expanded Height:
- 7'
- Collapsed Height:
- 7' 6
- Frame:
- Heavy-duty 12-gauge 1-1/2 x 1-1/2 vertical angles
- Caster:
- Solid steel
- Finish:
- Galvanized finish, custom powder coating is also available, consult us for details
- Lattice:
- Heavy-duty 14-gauge steel U-channel webbing riveted back to back with aircraft quality aluminum rivets
- Type:
- Single Gate
- Assembly:
- Ships unassembled
- Weight:
- 90.0 lbs. ea.
- Package Size:
- Each
