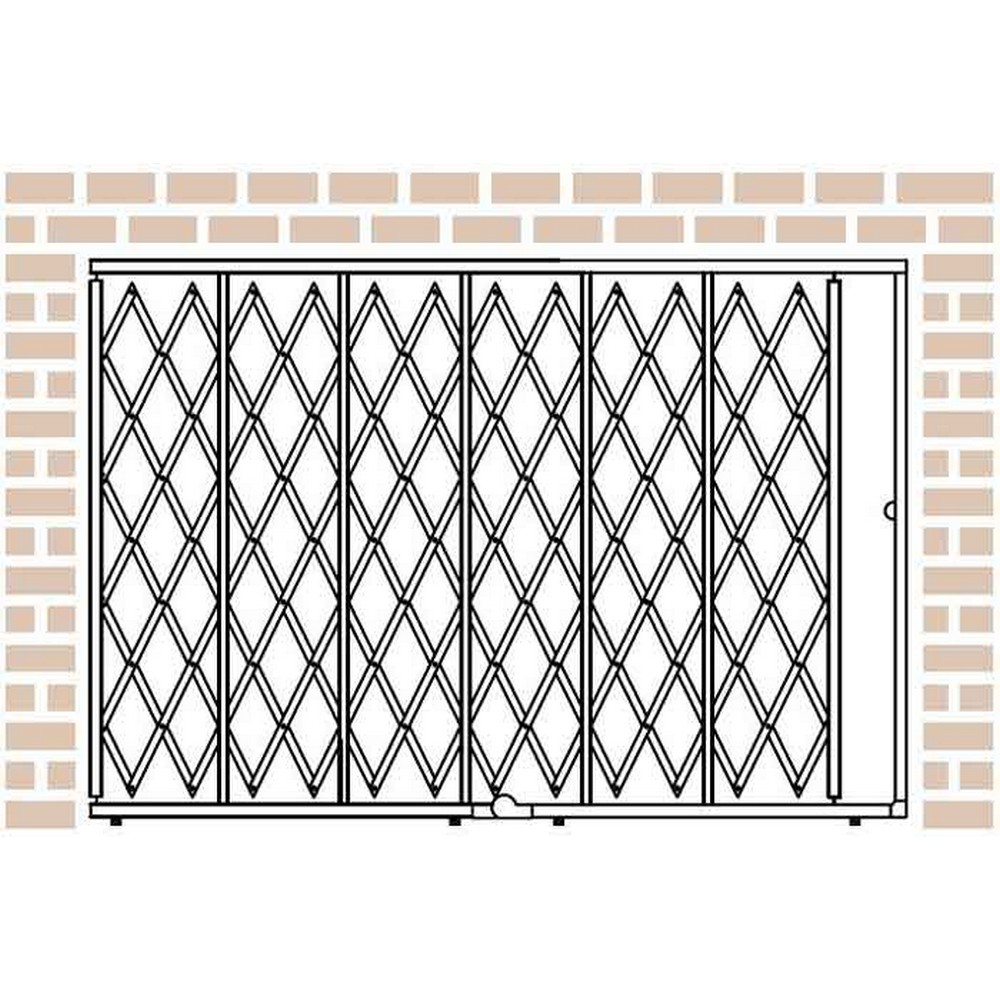

The HYDS680 storefront security gate from Illinois Engineered Products is a full-width barrier designed to section off areas within warehouses, storefronts, or other high-traffic spaces. Its 6' wide by 8' high configuration provides a continuous gate that can be deployed quickly to create temporary security perimeters or to shield inventory and personnel. The unit ships unassembled and includes a combination of vertical bars riding in tracks with a folding, scissor-lattice section, enabling smooth expansion and retraction as needs change throughout the day.

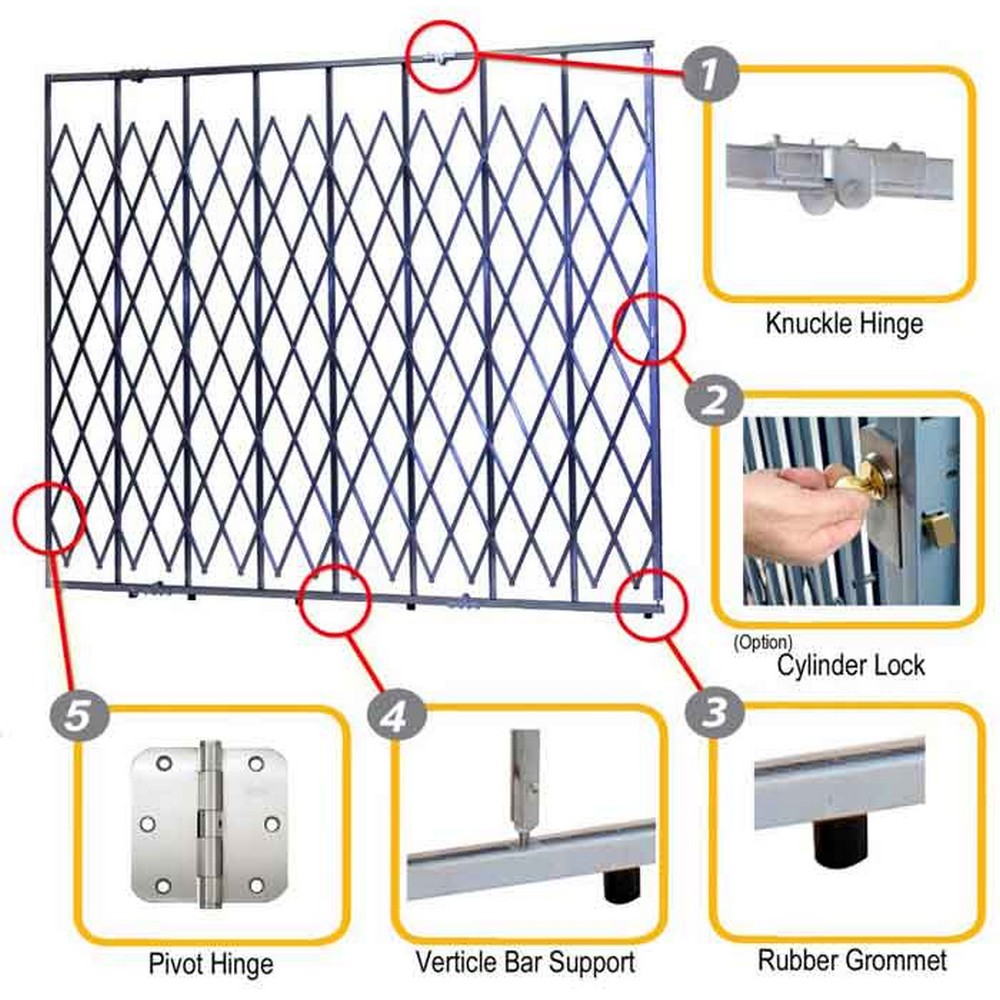

Constructed from galvanized steel with a robust frame and lattice, the HYDS680 is built to withstand challenging environments. The frame uses 1-1/4" x 5/8" 14-gauge C-channel steel with rubber grommet feet, while the lattice is 14-gauge U-channel steel with compatible rivets, ensuring rigidity and long-term performance. A padlock hasp is standard for basic security, with an integrated cylinder lock available as an option. The system can be finished in galvanized steel with powder-coated color choices upon request, and it features top and bottom track styles for secure mounting in varied sites.

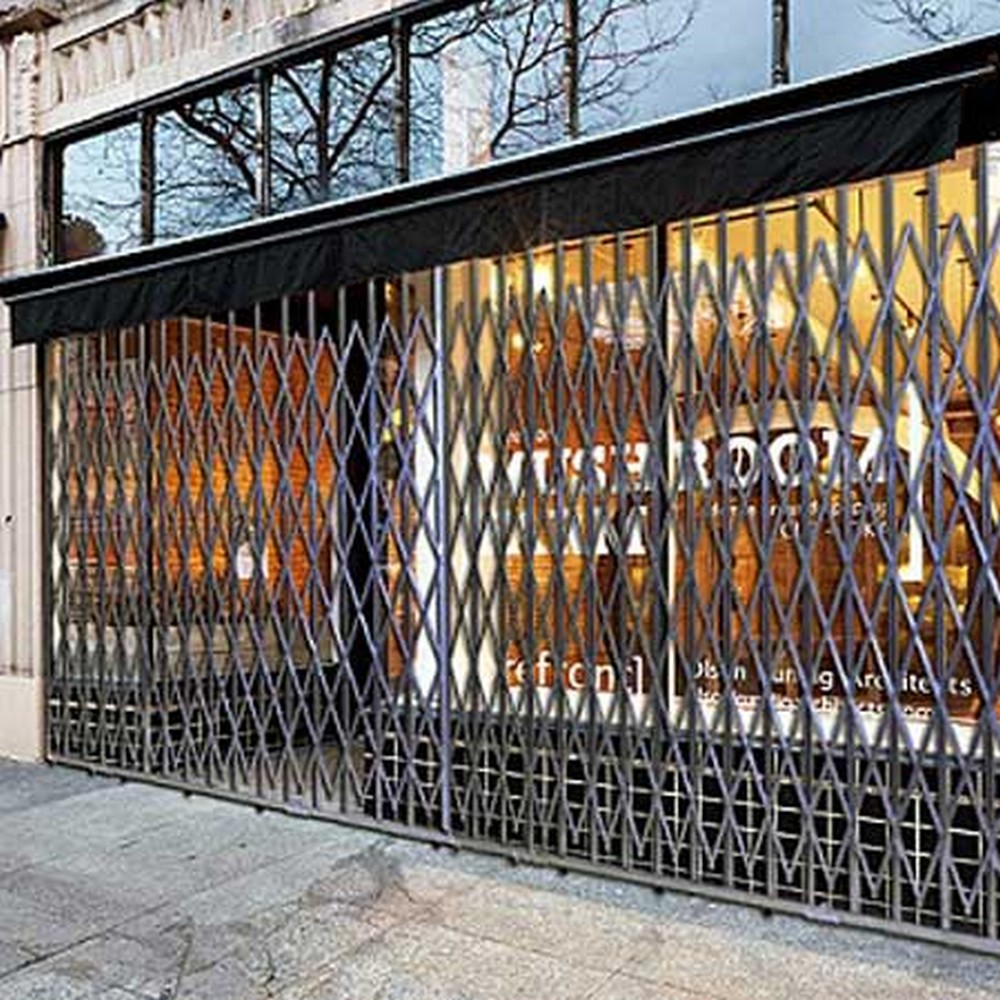

This storefront gate is suitable for indoor or outdoor use, including exposure to heat, rain, snow, and common industrial cleaners or chemicals. It is designed to cover a full width when deployed, with a maximum width of 6' and a folded lattice height of 8', supplying a reliable visual and physical barrier as part of a loss-prevention strategy. Users should plan for on-site assembly and confirm compatibility with existing mounting surfaces and track style when ordering. The HYDS680 carries a 1-year manufacturer warranty and weighs about 120 pounds per unit, with package sizing noted as individual units.
Features:
- Combination of vertical bars and scissor gates for total coverage
- Durable galvanized steel construction for indoor/outdoor use
- Fixed top frame with folding bottom gate for secure access
- Padlock hasp standard; integrated cylinder lock optional
- Ships unassembled for on-site installation; 1-year warranty
- Top & bottom track styles available and other sizes offered
- Resilient to heat, rain, snow, and harsh industrial cleaners
- Width:
- 6'
- Height:
- 8'
- Max Width:
- 6'
- Folded Lattice Height:
- 8'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 7.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Single Gate
- Weight:
- 120.0 lbs. ea.
- Package Size:
- Each
