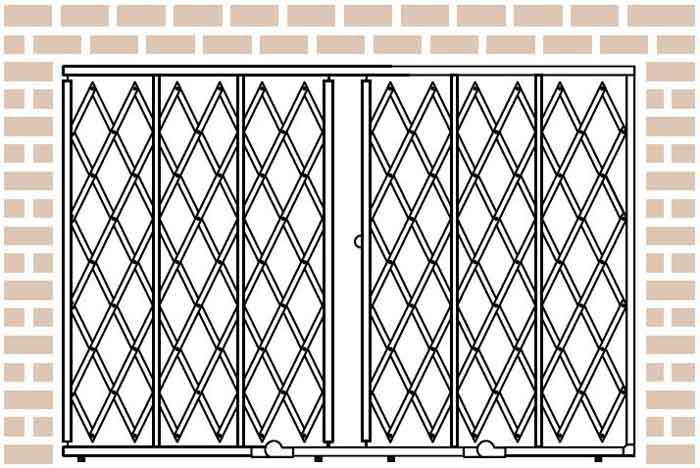

The Illinois Engineered Products HYDP911 storefront security gate is a full-width barrier designed to secure storefronts, warehouse entries, and restricted areas. This 9' wide by 11' high gate combines vertical bars that ride in tracks with a scissor lattice, delivering continuous coverage that can expand or retract as needed. The unit ships unassembled and is intended to be rugged for varied conditions, with a galvanized steel frame and lattice components that accommodate indoor or outdoor use and resist exposure to heat, rain, snow, and common industrial cleaners. A padlock hasp is provided as a standard locking option, while an integrated cylinder lock is available as an upgrade, offering flexibility in how access is controlled. The construction uses 1-1/4" x 5/8" 14-gauge C-channel steel for the frame and 3/8" x 3/4" 14-gauge U-channel steel for the lattice, with zinc-plated rivets and rubber grommet feet to stabilize the base. Finishing options include galvanized steel with powder coat colors available on request, and the product carries a 1-year manufacturer warranty. This store-front gate is sold as a pair gate, emphasizing its role as a continuous, secure barrier for wide openings. The HYDP911 is designed to stand up to demanding industrial environments and maintains smooth operation when expanding or retracting, enabling quick setup or reconfiguration as space requirements change.
Features:
- Combination of vertical bars and scissor gates for complete coverage
- Suitable for indoor and outdoor installation under varying weather and chemical conditions
- Fixed top frame with options for bottom track; other sizes and styles available
- Rugged 14 gauge C-channel frame and lattice components for durability
- Padlock hasp standard; integrated cylinder lock option available
- Galvanized steel construction with powder coat color options on request
- Width:
- 9'
- Height:
- 11'
- Max Width:
- 9'
- Folded Lattice Height:
- 11'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 10.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 248.0 lbs. ea.
- Package Size:
- Each
