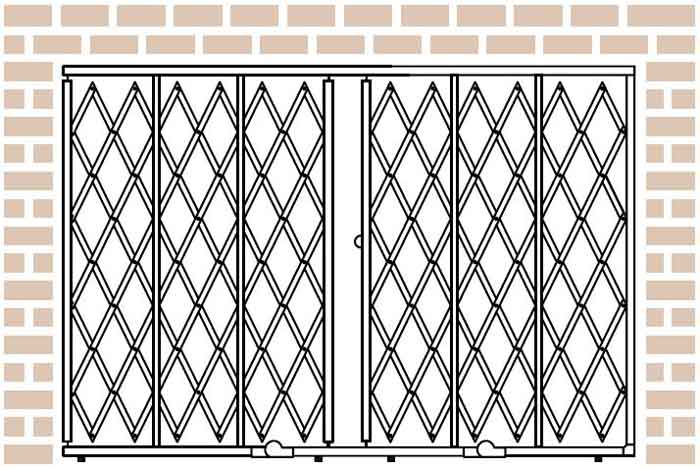

The Illinois Engineered Products HYDP1680 Storefront Security Gate is a full-width, continuous gate designed to section off warehouse or storefront areas quickly and securely. This 16 ft wide by 8 ft high unit uses a combination of vertical bars riding in tracks and a traditional scissor lattice to provide robust loss prevention while allowing smooth expansion or retraction as needs change. The gate is constructed from galvanized steel with 14 gauge framing and 14 gauge lattice, finished to resist indoor and outdoor conditions, heat, rain, snow, and exposure to harsh industrial cleaners. A padlock hasp is provided as standard, with an integrated locking cylinder option available to enhance security; finish options include powder-coated colors on request.
Features:
- Combination of vertical bars and scissor gates for total coverage and enhanced security
- Versatile for indoor or outdoor environments; resistant to heat, rain, snow, and harsh chemicals
- Fixed top track with folding bottom track options available
- Galvanized steel construction with powder coat colors available on request
- Ready for padlock hasp; integrated cylinder lock optional
- Frame: 1-1/4" x 5/8" 14 gauge C-channel; Lattice: 3/8" x 3/4" 14 gauge U-channel
- Weight: 320 lbs per gate; ships unassembled with 1-year warranty
- Width:
- 16'
- Height:
- 8'
- Max Width:
- 16'
- Folded Lattice Height:
- 8'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 7.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 320.0 lbs. ea.
- Package Size:
- Each
