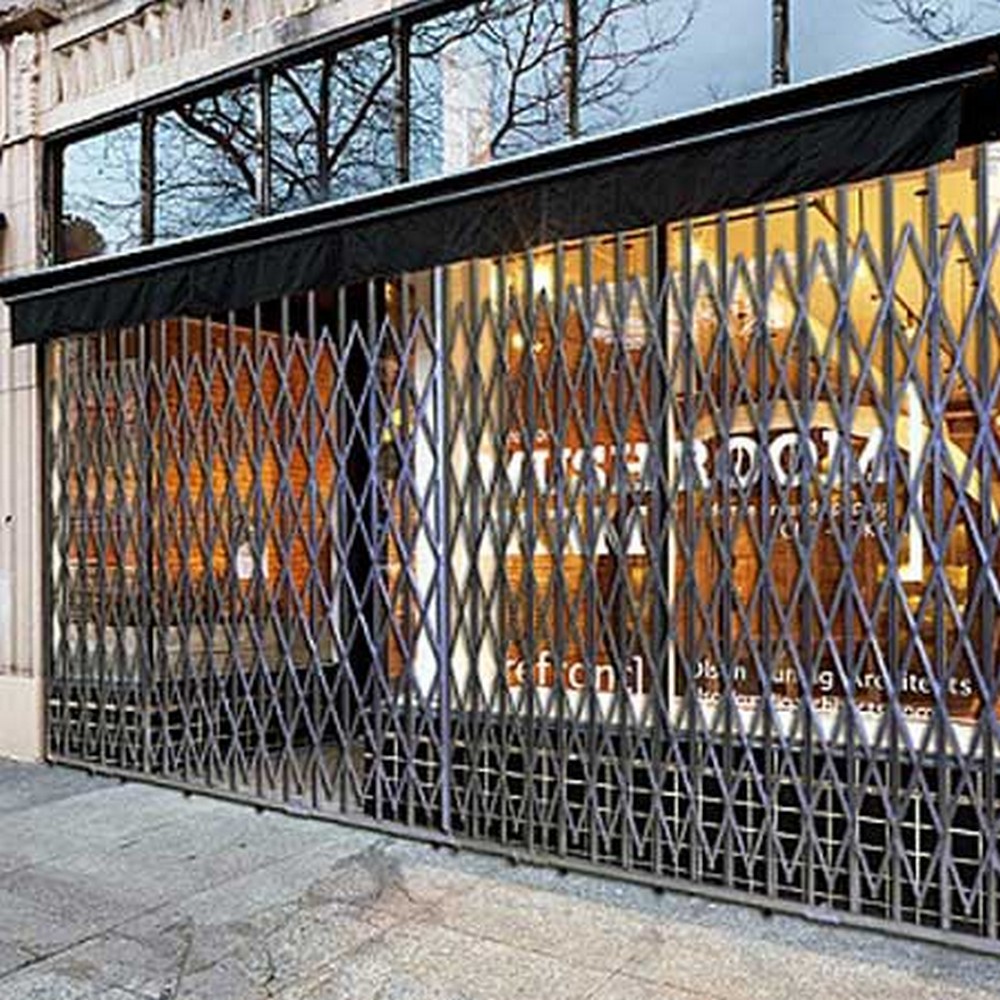

The Illinois Engineered Products HYDP1610 storefront security gate is a full-width, fixed-top and folding-bottom gate designed to section off storefronts, warehouse entries, or other high-traffic spaces. This unit is specified as a 16 ft wide by 10 ft high gate that travels on tracks, combining vertical bars with a scissor lattice to provide continuous coverage and controlled access. The design supports quick setup and easy deployment, making it suitable for temporary or semi-permanent storefront security needs. Its construction uses galvanized steel components with a 14 gauge C-channel frame and a 14 gauge U-channel lattice, reinforced with zinc-plated rivets, and features rubber grommet feet for floor protection and stability.
Features:
- Combination of vertical bars and scissor gates for full coverage and security
- Weather resistant for indoor/outdoor use and harsh environments
- Galvanized steel finish with optional powder coat colors
- Padlock hasp standard; integrated cylinder lock optional
- Top & bottom track styles available; ships unassembled
- Stores as a pair gate with 16' width and 10' height
- Width:
- 16'
- Height:
- 10'
- Max Width:
- 16'
- Folded Lattice Height:
- 10'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 9.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 400.0 lbs. ea.
- Package Size:
- Each
