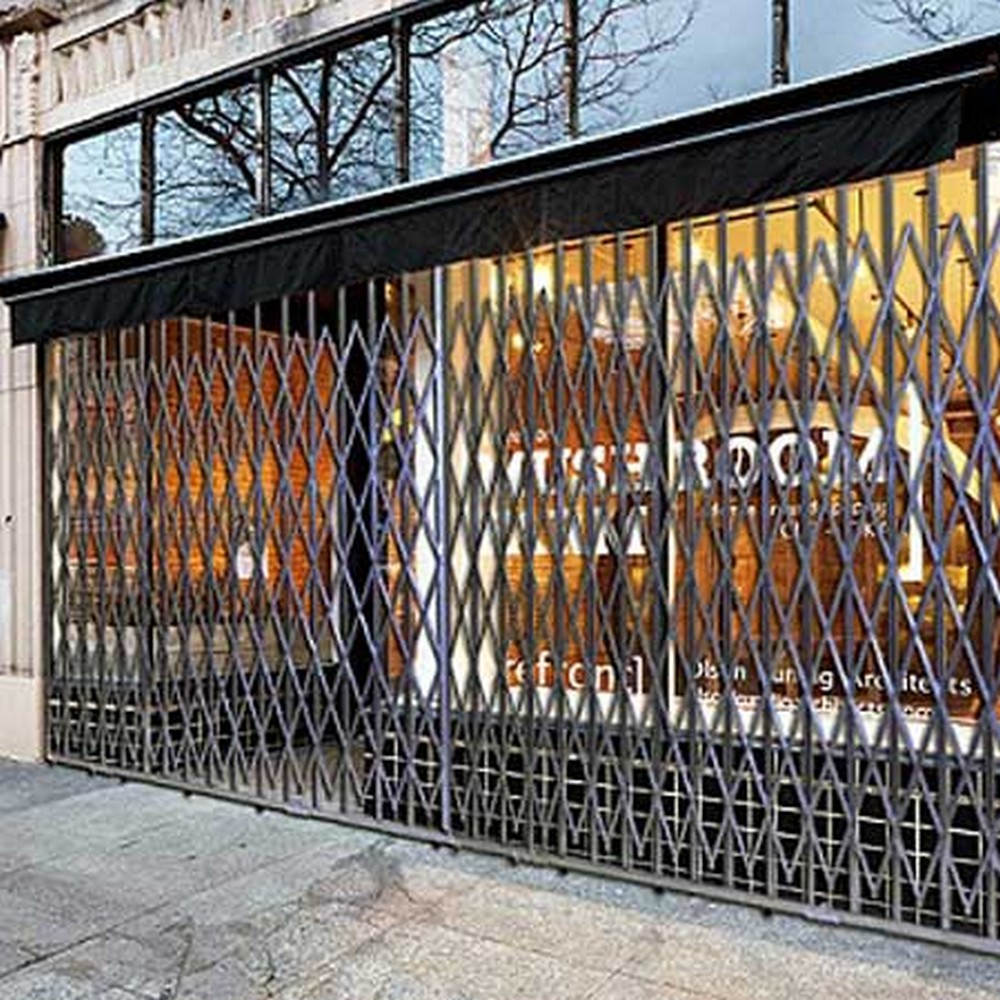

The Illinois Engineered Products HYDP1410 storefront security gate provides a full-width, continuous barrier designed to secure storefronts, warehouses, and restricted areas. This pair-gate system combines vertical bars that ride in tracks with a traditional scissor lattice, offering robust coverage and streamlined operation for expanding or retracting without complex assembly. The unit ships unassembled but installs relatively quickly, allowing you to deploy a secure perimeter in a short timeframe. With a total width of 14 feet and a height of 10 feet, it is positioned to secure wide entrances or storefront openings while maintaining accessibility when needed.
Constructed from galvanized steel parts, the HYDP1410 features a 1-1/4 inch by 5/8 inch 14-gauge C-channel frame paired with lattice elements that use 14-gauge U-channel steel and zinc-plated rivets. The design includes a 1-7/8 by 1-3/8 inch 11-gauge box-channel top and bottom track system and rubber grommet feet for stability. A padlock hasp is provided as a standard locking option, with an integrated cylinder lock available as an option to enhance security. The finish is galvanized steel with optional powder coat colors available by request to suit site aesthetics. The unit weighs approximately 350 pounds per gate and is listed as non-returnable, reflecting its industrial-grade purpose and installation requirements.
This storefront security gate is suitable for indoor or outdoor use and is designed to withstand harsh conditions, including heat, rain, snow, and exposure to industrial cleaners. It is intended for applications where maximum loss prevention is needed across wide doorways or storefront openings, with practical considerations around space requirements for installation, maintenance of the track system, and adherence to any site-specific locking preferences. The HYDP1410 is sold as a pair gate and ships without assembly, allowing for easier transport and on-site assembly by qualified personnel.
Features:
- Combination of vertical bars and scissor gates for full coverage
- Suitable for indoor and outdoor use; resists weather and chemicals
- Fixed top frame with folding bottom track option
- Galvanized steel construction; powder coat colors available on request
- Padlock hasp included; integrated cylinder lock optional
- Ships unassembled for easy on-site installation
- Width:
- 14'
- Height:
- 10'
- Max Width:
- 14'
- Folded Lattice Height:
- 10'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 9.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 350.0 lbs. ea.
- Package Size:
- Each
