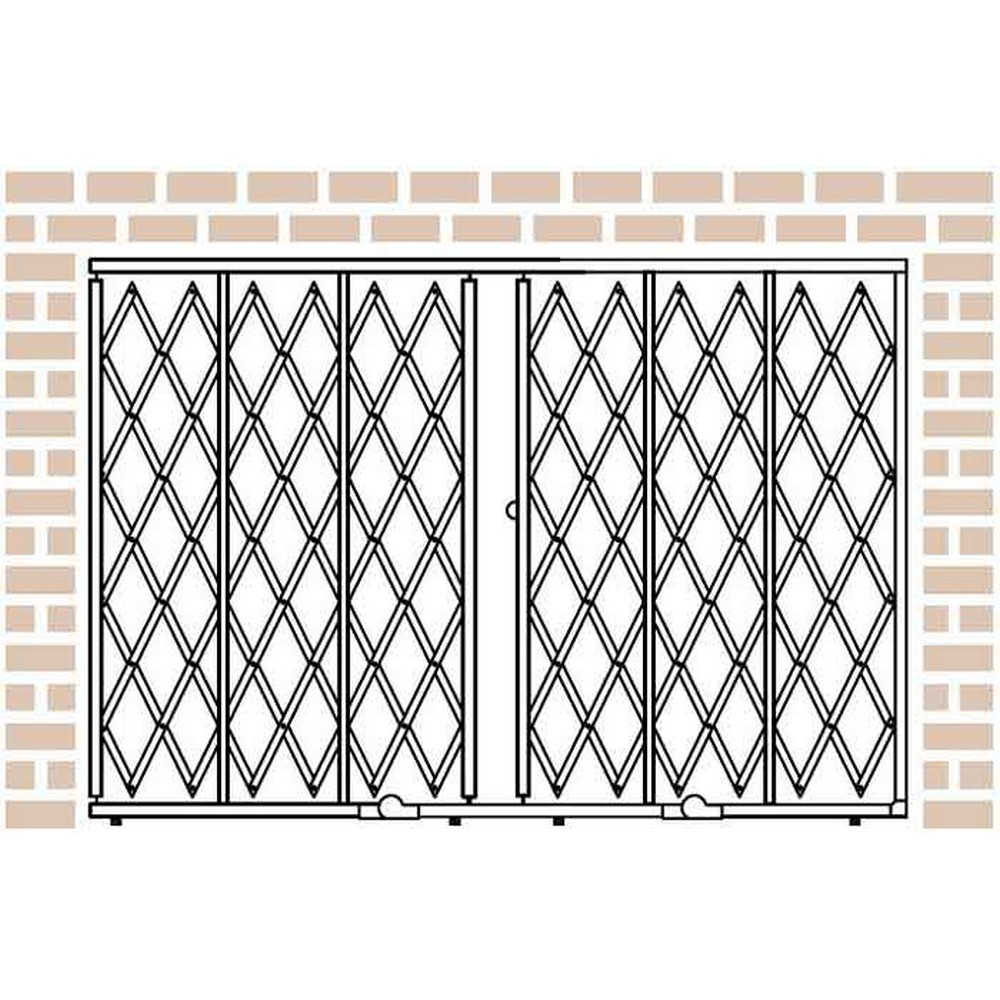

The Illinois Engineered Products HYDP1110 Storefront Security Gate is a full-width security solution designed to section off warehouse areas or shield storefront locations. This pair gate features a combination of vertical bars that ride in tracks together with traditional scissor lattice, providing continuous coverage across an 11-foot width and 10-foot height. The design relies on 1-1/4" x 5/8" 14-gauge C-channel steel for the frame and 3/8" x 3/4" 14-gauge U-channel steel lattice, with zinc-plated fasteners, and incorporates rubber grommet feet to help protect floors and reduce vibration when operated. A standard padlock hasp is included, while an integrated cylinder lock is available as an option, allowing for flexible security configurations.
This storefront gate ships unassembled and weighs approximately 275 pounds per unit, reflecting its robust construction intended for demanding environments. The unit is galvanized steel with powder coat options available by request, and it is designed to withstand indoor or outdoor use, including exposure to heat, rain, snow, and harsher industrial cleaners. The product’s top and bottom track profiles measure 1-7/8" x 1-3/8" box channel steel, and its set includes a fixed top frame with a folding bottom lattice arrangement, enabling rapid setup and expansion as needed.
This model is offered as a store-front/gate pairing and is non-returnable, with a one-year manufacturer warranty. Potential buyers should assess the open width of 11 feet and the fixed top with a folding bottom to determine fit for a given entry or corridor while considering installation requirements and the availability of top/bottom track styles in other sizes for future scalability.
Features:
- Combination of vertical bars and scissor gates for full coverage
- Industrial-grade galvanised steel construction
- Indoor or outdoor use; weather and chemical resistant
- Fixed top frame with folding bottom track option
- Ships unassembled; 1-year manufacturer warranty
- Padlock hasp standard; integrated cylinder lock optional
- Powder coat finishes available on request
- Width:
- 11'
- Height:
- 10'
- Max Width:
- 11'
- Folded Lattice Height:
- 10'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 9.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 275.0 lbs. ea.
- Package Size:
- Each
