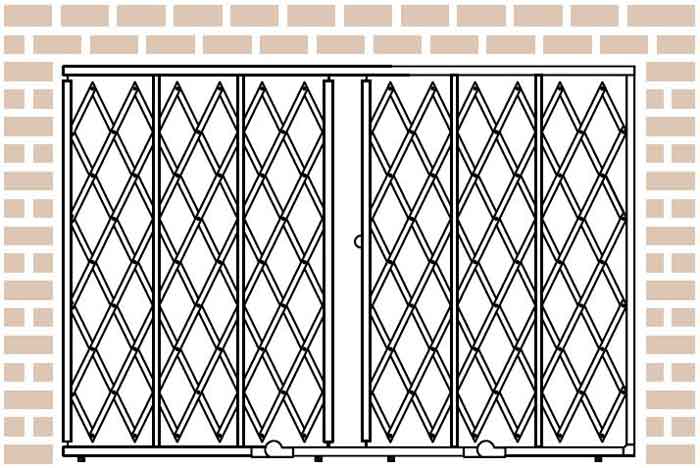

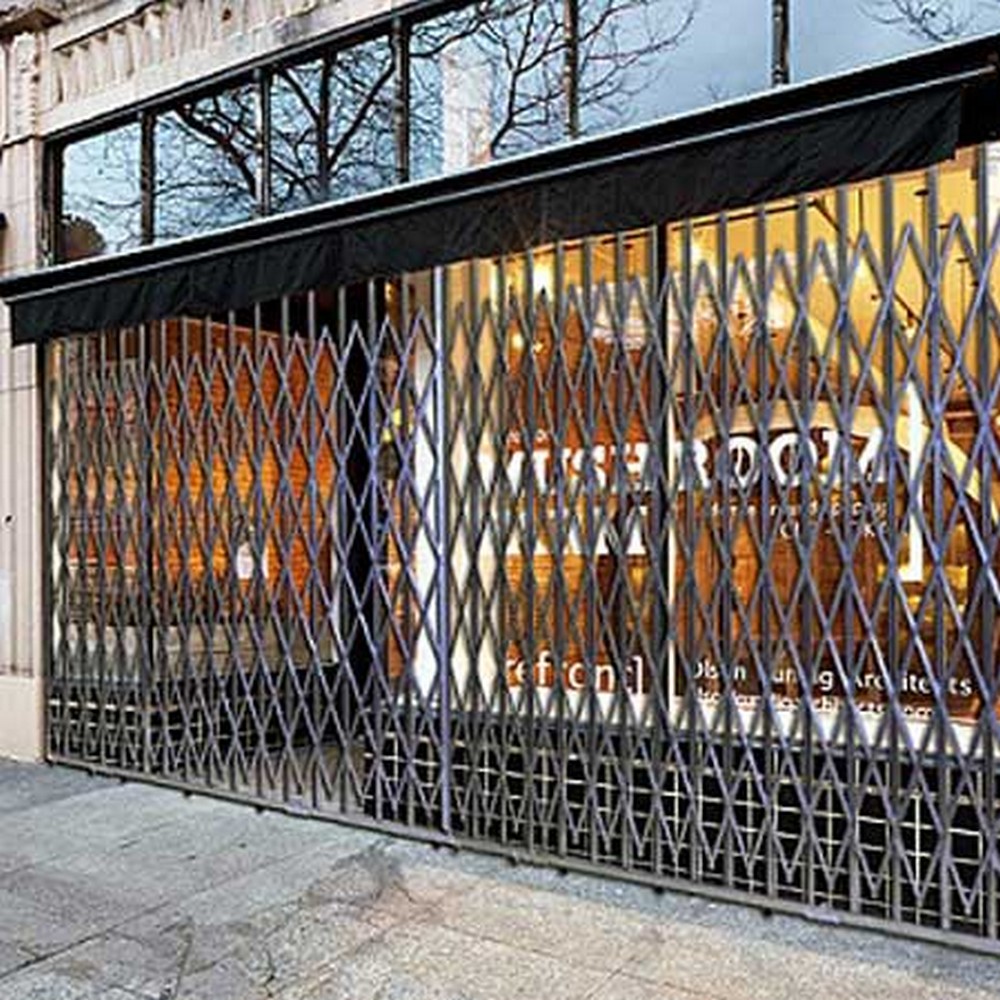

The Illinois Engineered Products HYDP1012 Storefront Security Gate provides a wide, continuous barrier designed to secure storefronts, warehouse entries, or interior bays. With a full width of 10 feet and a fixed top along with a folding bottom section, this gate is intended to be deployed quickly to segment areas and deter loss. The unit ships unassembled and is suitable for temporary or semi-permanent installations where fast setup and reliable access control are priorities in busy facilities.

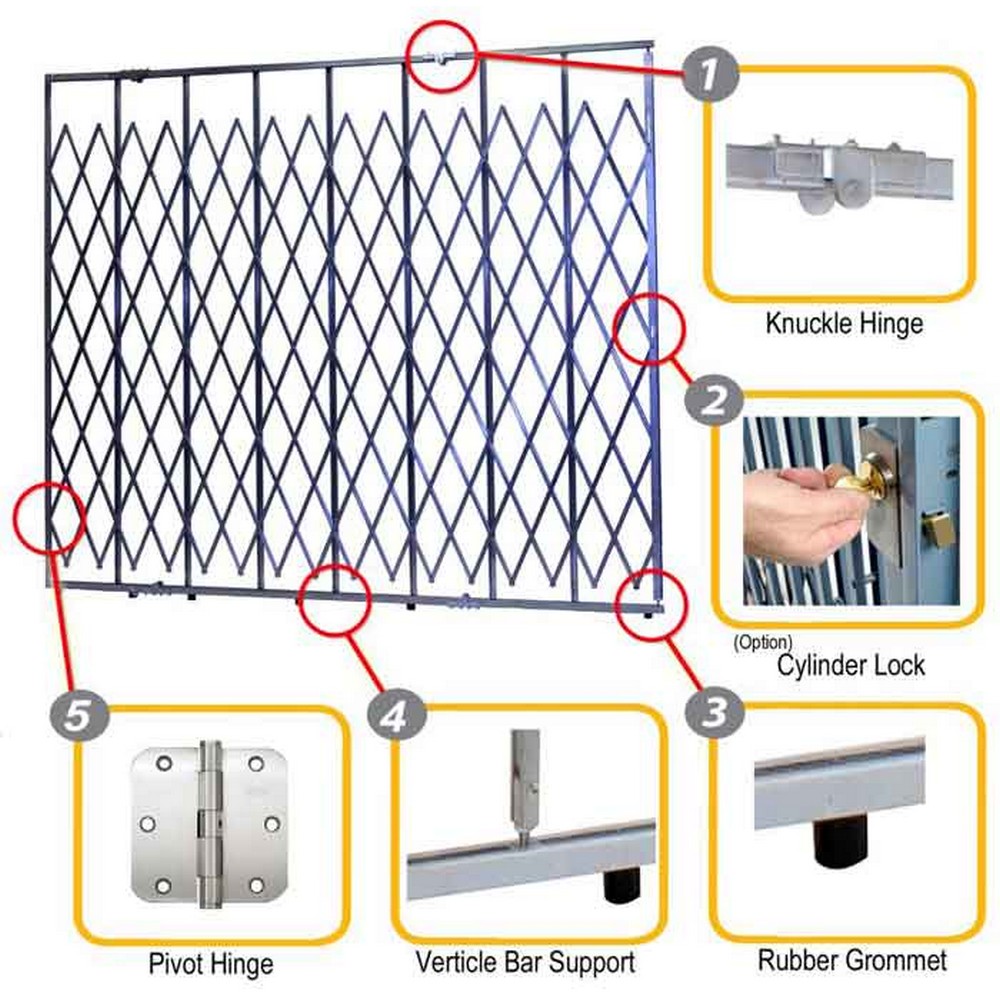

Construction combines vertical bars riding in tracks with traditional scissor lattice to deliver a dense, secure look while allowing expansion and retraction as needed. The frame is built from 1-1/4 inch by 5/8 inch 14 gauge C-channel steel and features 14 gauge U-channel lattice members, riveted with zinc-plated fasteners. The system includes rubber grommet feet for surface protection and comes with a standard padlock hasp; an integrated cylinder lock is available as an option. Finish is galvanized steel, with powder coat color options available on request, helping resist corrosion in varied environments.
This storefront gate is designed for both indoor and outdoor use, withstanding heat, rain, snow, and exposure to common industrial cleaners. It is offered as a pair gate with a weight of approximately 300 lb per unit and a 1-year manufacturer warranty. Practical considerations include ensuring compatible mounting surfaces for track channels and confirming the fixed top and folding bottom operation meet your access control needs. When planning installation, verify width and height clearances (max width 10', folded lattice height 11.5' for expanded sections) and consider whether top/bottom track styles or alternative sizes are required for your specific application.
Features:
- Hybrid security design: vertical bars combined with scissor gate for comprehensive coverage
- Indoor/outdoor durability with galvanized steel construction
- Fixed top frame with folding bottom gate for versatile application
- Padlock hasp standard; integrated cylinder lock available as an option
- Versatile sizing: 10' W x 12' H; ships unassembled
- Rugged hardware: 1-1/4" x 5/8" 14 gauge C-channel frame and 14 gauge U-channel lattice
- Top & bottom track styles available and other sizes upon request
- Width:
- 10'
- Height:
- 12'
- Max Width:
- 10'
- Folded Lattice Height:
- 12'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 11.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 300.0 lbs. ea.
- Package Size:
- Each
