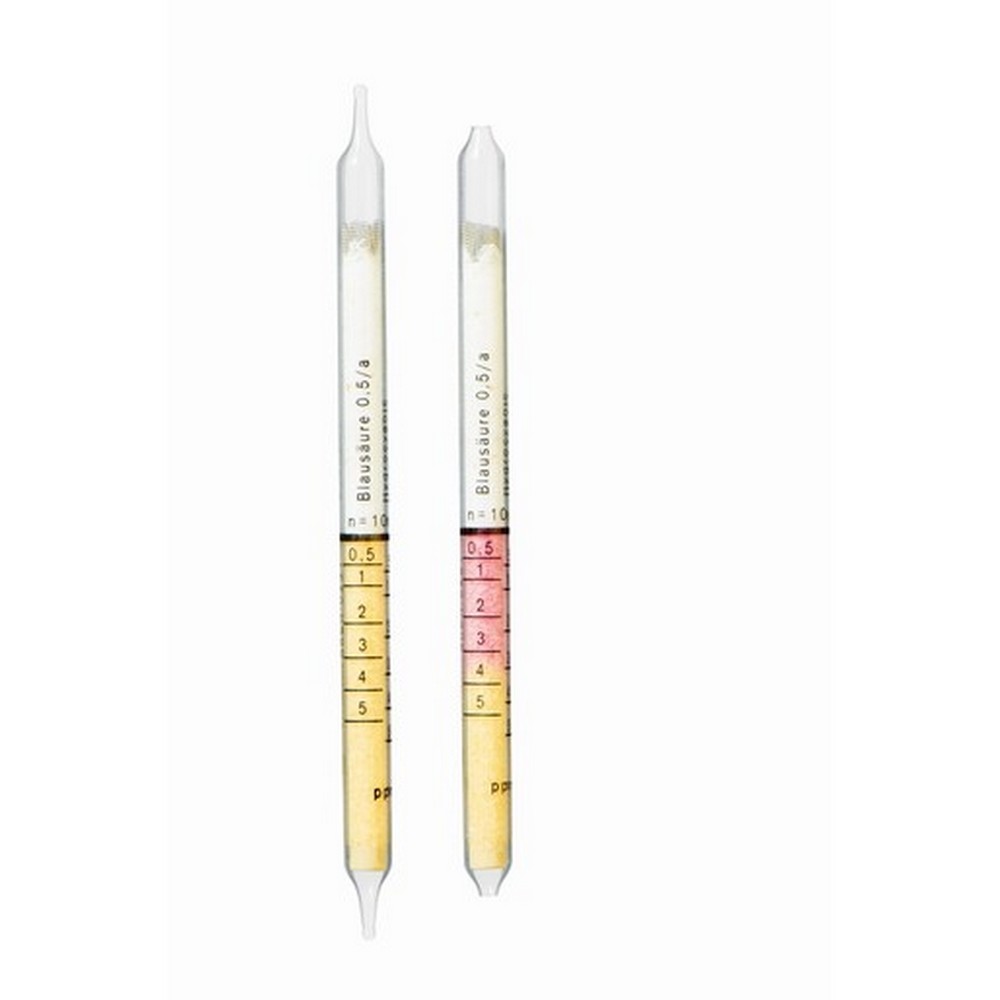

The Draeger 8103601 Gas Detector Tube is designed for rapid, colorimetric measurement of hydrocyanic acid in ambient air using a Draeger tube pump. It provides a straightforward method for detecting specific concentration ranges, with a standardized reading window that covers two ranges: 0.5–5 ppm and 5–50 ppm, and a measured exposure interval of 10 minutes for the 0.5–5 ppm range or 2 minutes for the higher range. This compact tube format is intended for single-use, disposable measurements and is packaged as a box containing ten tubes, suitable for spot-checks or routine monitoring in industrial environments where cyanide-related hazards may be present.
Each tube is constructed from glass and features a break-off tip to preserve integrity prior to use. The product is part of a direct-reading gas detection system that relies on precise sampling with a Draeger pump, allowing the user to draw a known volume of air through the tube and observe a color change that correlates to the exposure level. While the data provided does not specify calibration or certification details, the range specification and time parameters align with classic Draeger-tube methodology for qualitative-to-semiquantitative assessment in the field, enabling quick decisions on whether further evaluation or controls are required.
Features:
- Measurement ranges: 0.5–5 ppm and 5–50 ppm
- Two response times: 2 minutes and 10 minutes
- Gas detected: Hydrocyanic Acid (HCN) 0.5/a
- Tube material: Glass with break-off tip
- Package size: Box, 10 tubes per box
- Part number: 8103601
- Gas Detected:
- Hydrocyanic Acid 0.5/a
- Standard Range Of Measurement:
- 0.5 - 5 ppm, 5 - 50 ppm
- Measurement Time:
- 10 Min, 2 Min
- Tube Material:
- Glass
- Break-Off Tip:
- Yes
- Package Size:
- Box
- Box Quantity:
- 10/Box
