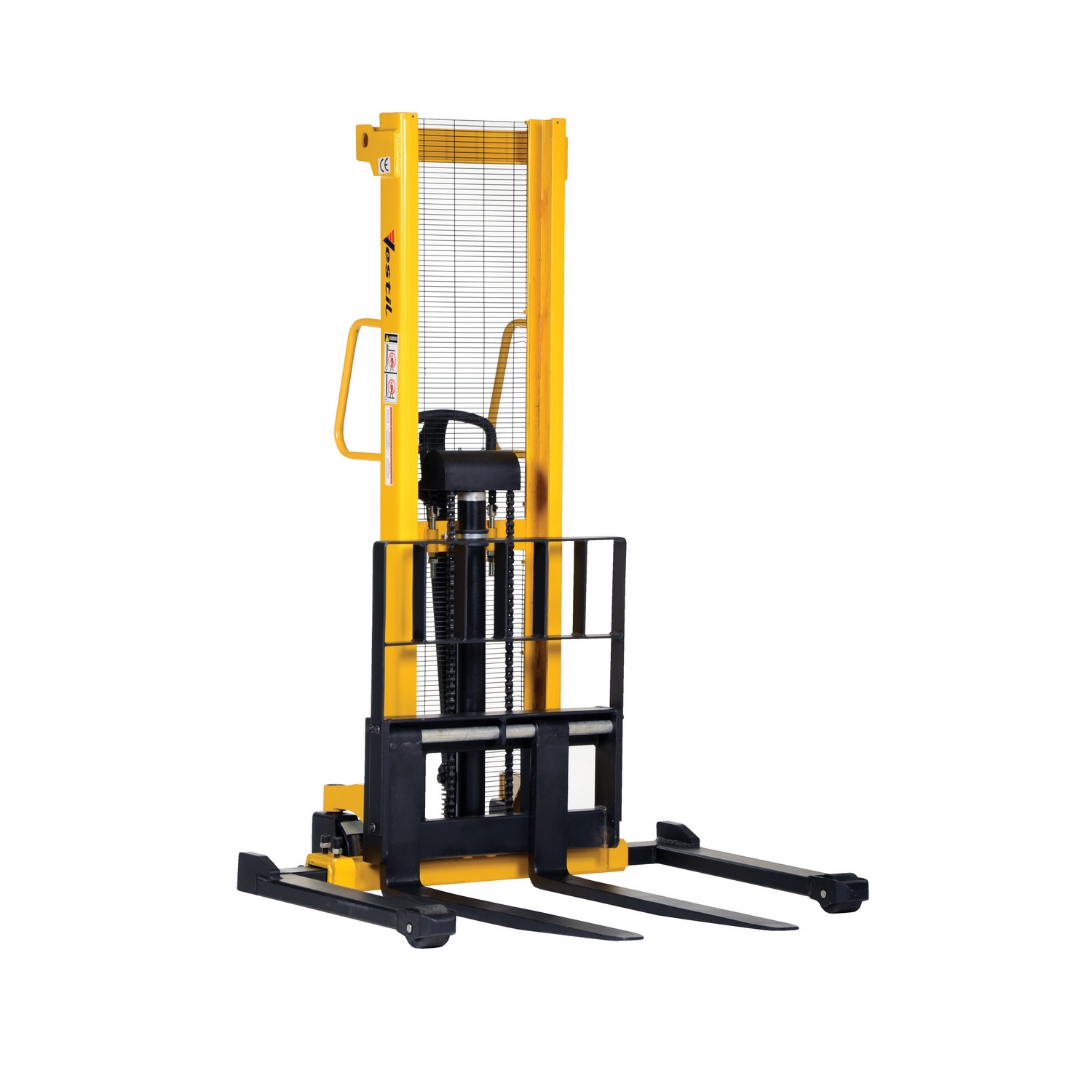

The Vestil VHPS-2000-AA Manual Stacker is a versatile material handling solution designed to lift, transport, and position loads with a hand winch and steel cable mechanism. This model is built for demanding tasks in workstation and workplace environments, offering a heavy-duty mast and a full-height push handle that provides easy steering and excellent visibility while operating. A welded mesh guard and an optional removable platform contribute to safer handling and flexible use in tight spaces, and the unit’s two rigid and two swivel wheels with brakes help maneuverability around the work area.
Constructed with a steel frame and a 2000 lb capacity, the stacker features adjustable forks and adjustable legs to accommodate varying pallet sizes and loading configurations. The lift and lower functions are controlled by a manual winch, delivering steady, controlled operation without the need for power sources. Specific dimensional data such as lift per handle, fork dimensions, and the front/rear caster configurations are integral to planning reach, stability, and load placement for safe, efficient operation in confined or crowded spaces.
Users should consider compatibility with their existing pallets and work zones, noting the adjustable fork width and leg span to fit the intended loads. The unit is sized to travel a defined horizontal load center and travel distance with its wheel assembly and legs, and its package configuration is listed as each. Regular inspection of moving components and restraint points is advisable to maintain performance, especially in environments with frequent height adjustments and repetitive lifting.
Features:
- 2,000 lb lifting capacity for versatile material handling
- Hand winch design for easier and safer lifting
- Full-height push handle for improved steering control
- Adjustable forks and legs to fit a range of pallets
- Straddle legs provide stable support during loading and stacking
- Maintenance-free design simplifies operation
- Color:
- Yellow
- Material:
- Steel
- Uniform Capacity (lb.):
- 2000
- Service Range (in.):
- 2 to 63
- Horizontal Load Center (in.):
- 24
- Straddle Leg Minimum (in.):
- 38 (I.D)
- Straddle Leg Maximum (in.):
- 50 (I.D)
- Fork Adjustment Minimum (in.):
- 7-7/8 (O.D)
- Fork Adjustment Maximum (in.):
- 26-3/4 (O.D)
- Rear Caster Quantity/Diameter/Width (in.):
- (2) 7 x 2
- Rear Caster Type:
- Swivel with Brake
- Front Caster Quantity/Diameter/Width (in.):
- (2) 4 x 2-29/32
- Front Caster Type:
- Rigid
- Lift per Handle Pump (in.):
- 3/4
- Individual Fork Width (in.):
- 3-15/16
- Fork Length (in.):
- 42-1/8
- Operation:
- Hand Winch
- Min. Travel Distance (in.):
- 36
- Max. Travel Distance (in.):
- 64
- Leg Width (in.):
- 4
- Package Size:
- Each
