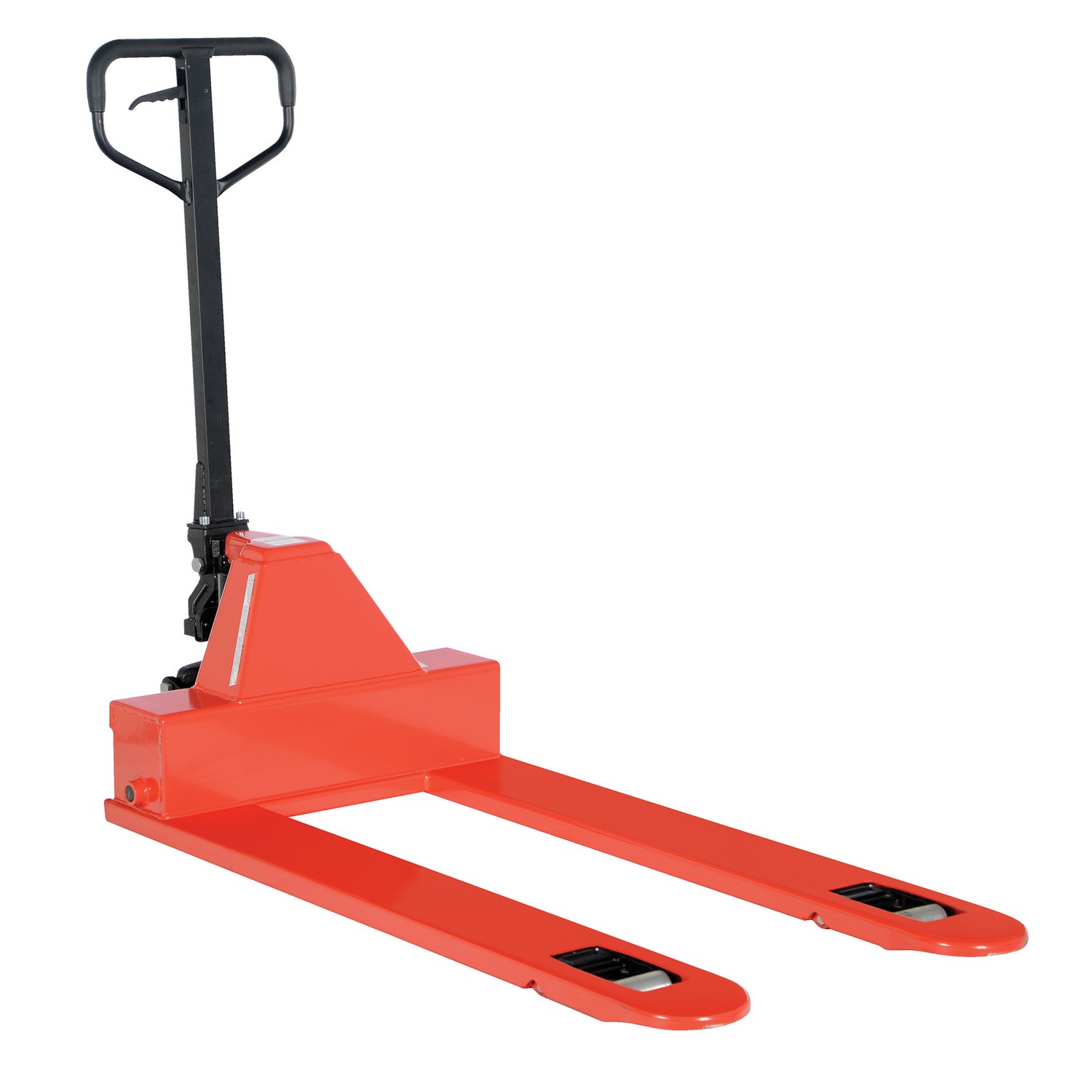

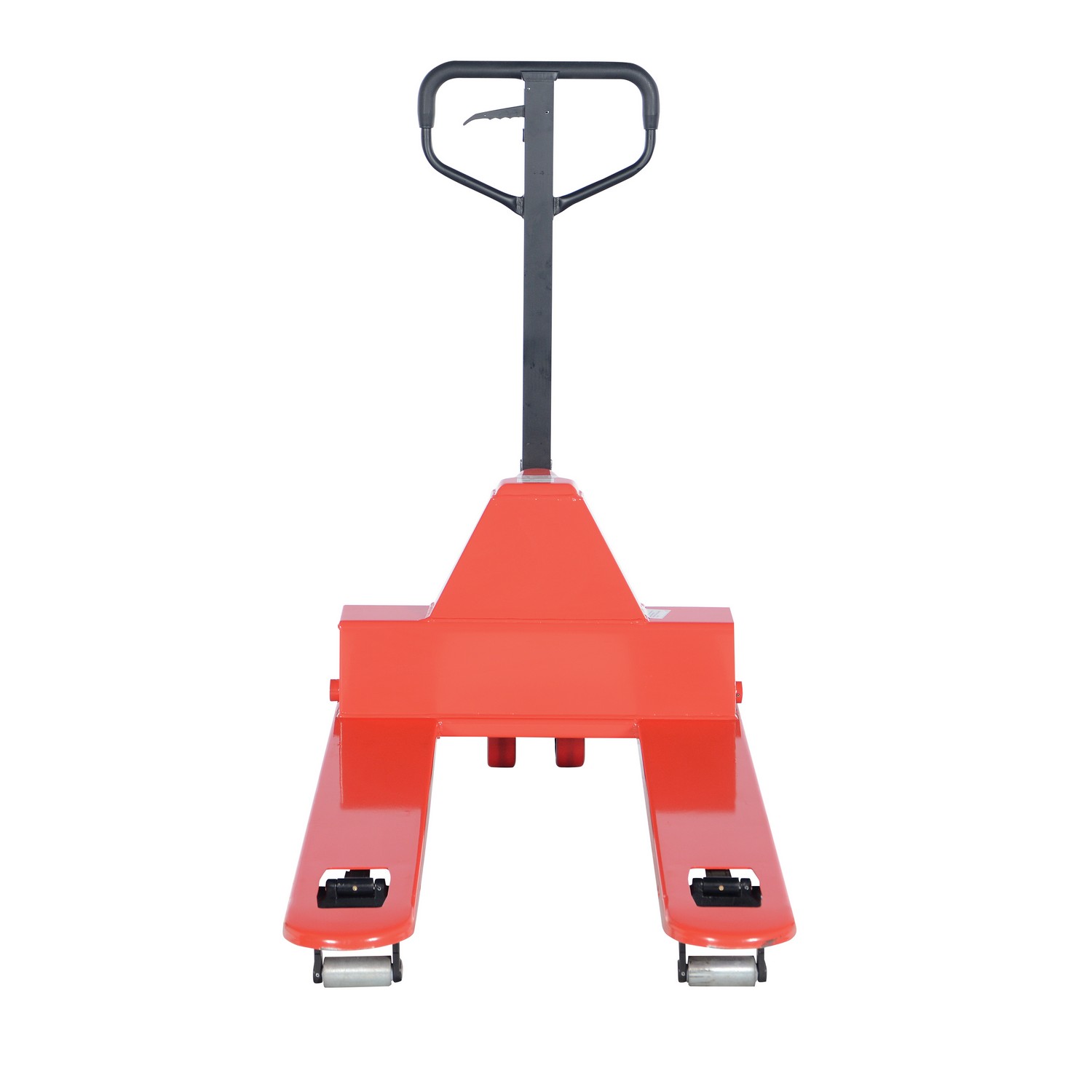

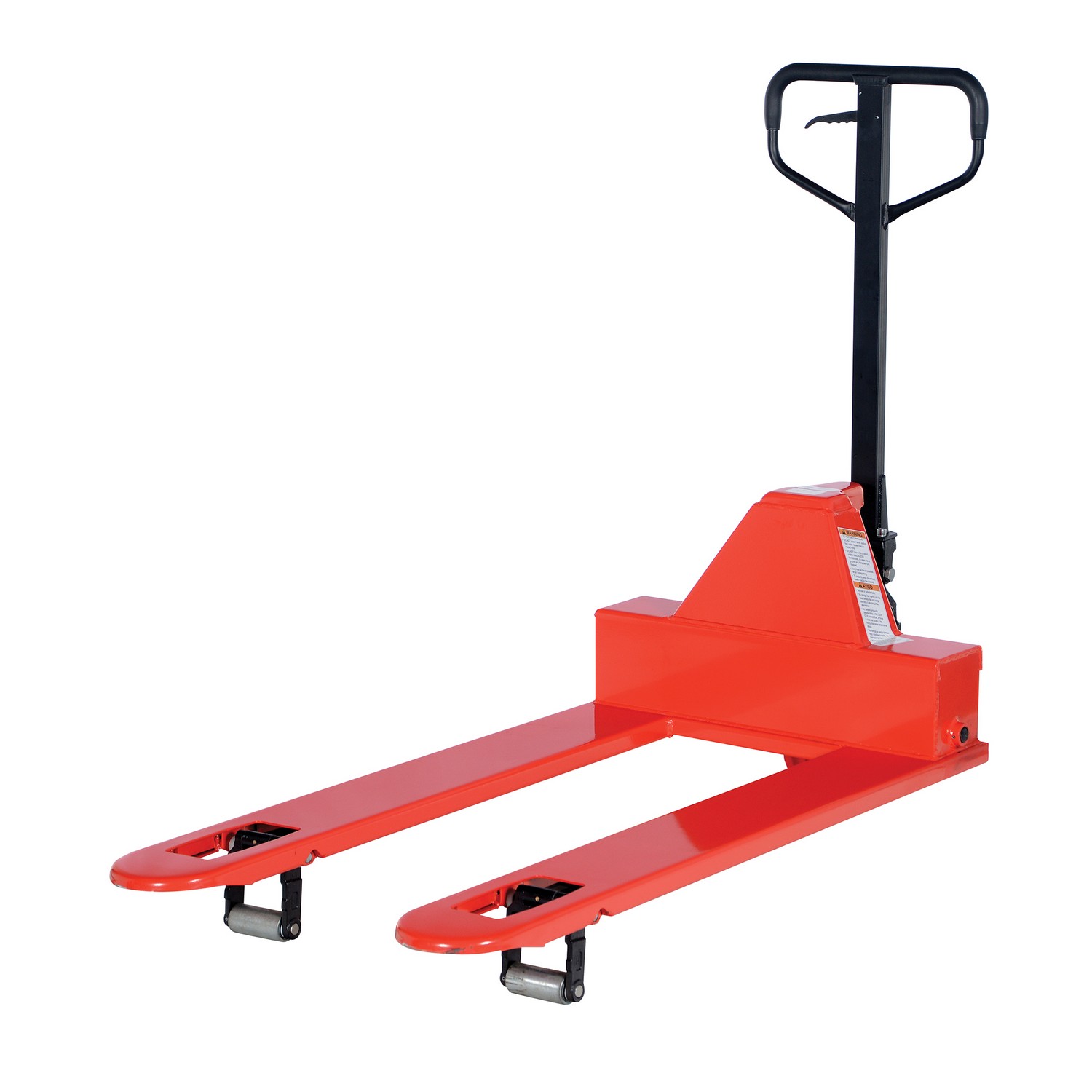

The Vestil PM4-2748-LP Low Profile Pallet Truck is designed to maneuver pallets from all four sides, thanks to its all-steel reinforced frame and a low-profile platform for easier entry under pallets with limited clearances. This 4,000 lb capacity unit features a wide loop handle that allows fingertip control for lifting, neutral positioning, and lowering, enabling precise and comfortable operation in tight spaces. The truck relies on a suspension system with a heavy-duty thrust bearing and lifetime lubricated bearings, reducing maintenance needs while promoting a smoother, more durable ride. A hard chrome-plated pump piston and polyurethane seals in the hydraulic system contribute to reliable performance and resistance to wear over time. The model arrives with adjustable push rods, polyurethane wheels, and steel load rollers, all finished in a red powder coat for durability and visibility in active work environments.
Practical applications for this pallet truck include quick, all-sides pallet access in warehouses, production areas, and loading zones where maneuverability and stable load handling are essential. The raised height of 6 inches and lowered height of approximately 1-7/8 inches indicate a low-profile design that can handle pallets without excessive clearance requirements, while the 27-inch overall fork width and 48-inch fork length accommodate common pallet sizes. The selection of steel load rollers (4-1/2 inch diameter) and steel steer casters (7 inch diameter) with polyurethane on-steel construction helps balance load stability and smooth rolling across varied floor conditions. Regular checks on hydraulic integrity and bearing lubrication, though designed for long life, will help sustain performance in high-use environments.
This pallet truck is sized and packaged for individual use, with a 4,000 lb capacity appropriate for heavy pallets and a form factor compatible with standard pallet dimensions. As with all material handling equipment, ensure the unit is used on clean, level floors and inspect for any wear on wheels or rollers that could affect maneuverability and load control. The PM4-2748-LP’s red finish aids visibility in busy facilities, supporting safer, more efficient pallet handling workflows.
Features:
- Wide loop handle offers easy unit maneuverability
- Fingertip lever provides easy lift, lower and neutral operation
- Suspension system has heavy-duty thrust bearing for long lasting use
- Lifetime lubricated bearings never need maintenance work
- 4,000 lb capacity for standard pallet handling
- Overall fork width 27 inches and length 48 inches
- Color:
- Red
- Material:
- Steel
- Uniform Capacity (lb.):
- 4000
- Overall Fork Width (in.):
- 27
- Overall Fork Length (in.):
- 48
- Lowered Height (in.):
- 1-7/8
- Raised Height (in.):
- 6
- Individual Fork Width (in.):
- 7
- Steer Caster Material:
- Poly-On-Steel
- Steer Caster Diameter (in.):
- 7
- Steer Caster Width (in.):
- 2
- Load Roller Material:
- Steel
- Load Roller Diameter (in.):
- 4-1/2
- Load Roller Width (in.):
- 1-1/2
- Package Size:
- Each
