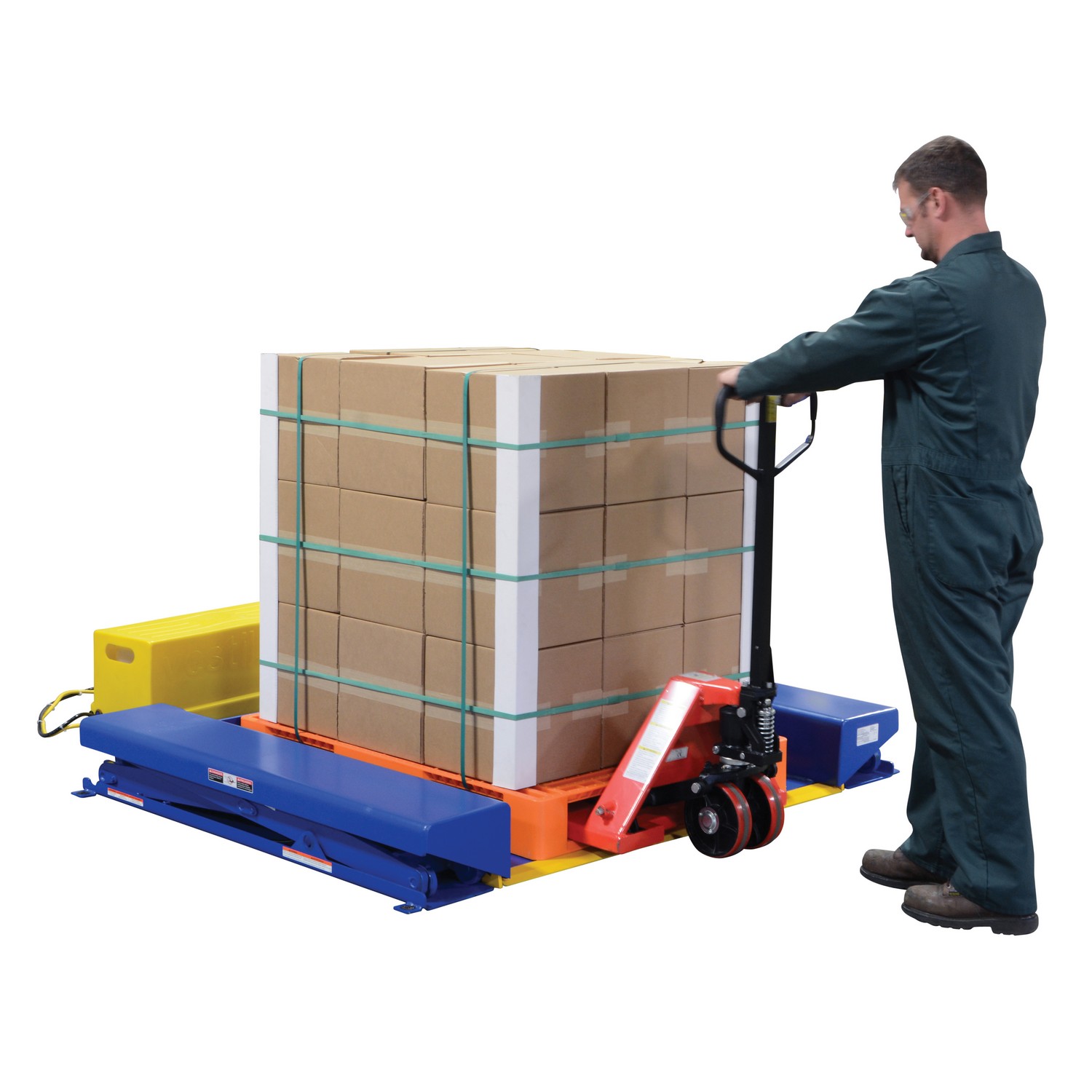

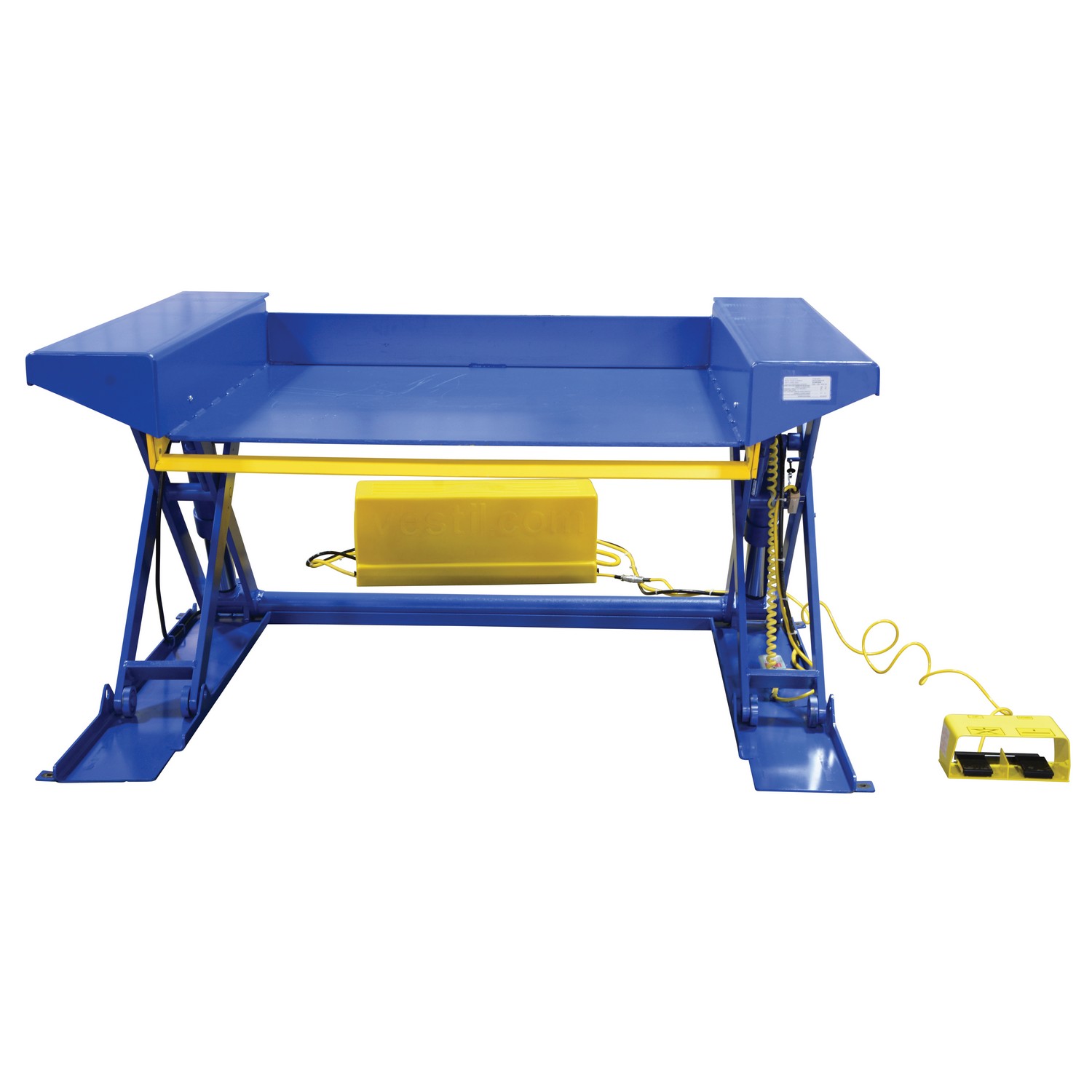

The Vestil Ground Lift Scissor Table VESEHLTG-5250-4-36 is a portable lifting solution designed for pallet handling when a forklift isn’t available. It enables pallets to be loaded onto its platform with a pallet jack and raised to a chosen working height, helping users position loads at ergonomically suitable levels for installation, staging, or transfer tasks. This model emphasizes safety and reliability in its operation, featuring an entry-side electric toe guard to shield pinch points during lowering and a velocity fuse to help maintain platform height in the event of hydraulic hose or fitting failure. A remote power unit option increases flexibility by allowing the drive system to be positioned up to eight feet away from the table, which can simplify maintenance access and layout planning in tight spaces.
Constructed from steel with a blue finish, the table supports a uniform capacity of 4,000 lb. Its raised height is 36 inches, and the platform dimensions measure 52 inches in width by 51-1/2 inches in length, accommodating standard pallet footprints. The hydraulic system operates at 60 Hz with 3-phase 460 V current, powered by a 2 HP motor and a 3,000 psi hydraulic component rating. The table’s platform lowers to 1/2 inch above the floor, and an upper travel limit switch is incorporated to stop movement at maximum height, reducing motor wear during use. This configuration includes a 32-1/2 inch by 12 inch by 12-1/2 inch remote power unit and a 1:1 relationship between load placement and lifting height, making it suitable for frequent, higher-position work without a full forklift footprint.
When planning use, consider the need for a compatible remote power unit placement, adequate floor space for setup and maneuvering pallets, and ensuring adequate access to power for the hydraulic system. Optional accordion skirting is available for added enclosure of the platform area if required by workspace safety or cleanliness standards. This table is best matched to environments where forklift access is limited but high-elevation handling and precise load placement are needed.
Features:
- Pallets load onto the platform and are raised to a working height
- Entry-side electric toe guard protects pinch points
- Velocity fuse maintains platform height
- Remote power unit can be located up to eight feet away
- 4,000 lb uniform capacity
- Platform dimensions: 52 in. width × 51.5 in. length
- Raised height: 36 in.
- Color:
- Blue
- Material:
- Steel
- Uniform Capacity (lb.):
- 4000
- Platform Width (in.):
- 52
- Platform Length (in.):
- 51-1/2
- Raised Height (in.):
- 36
- Platform Lowered Height (in.):
- 1/2
- Hydraulic Component Rating (psi):
- 3000
- Motor Horsepower:
- 2
- Hertz:
- 60
- Voltage:
- 460
- Phase:
- 3
- Remote Power Unit Length (in.):
- 32-1/2
- Remote Power Unit Width (in.):
- 12
- Remote Power Unit Height (in.):
- 12-1/2
- Package Size:
- Each
