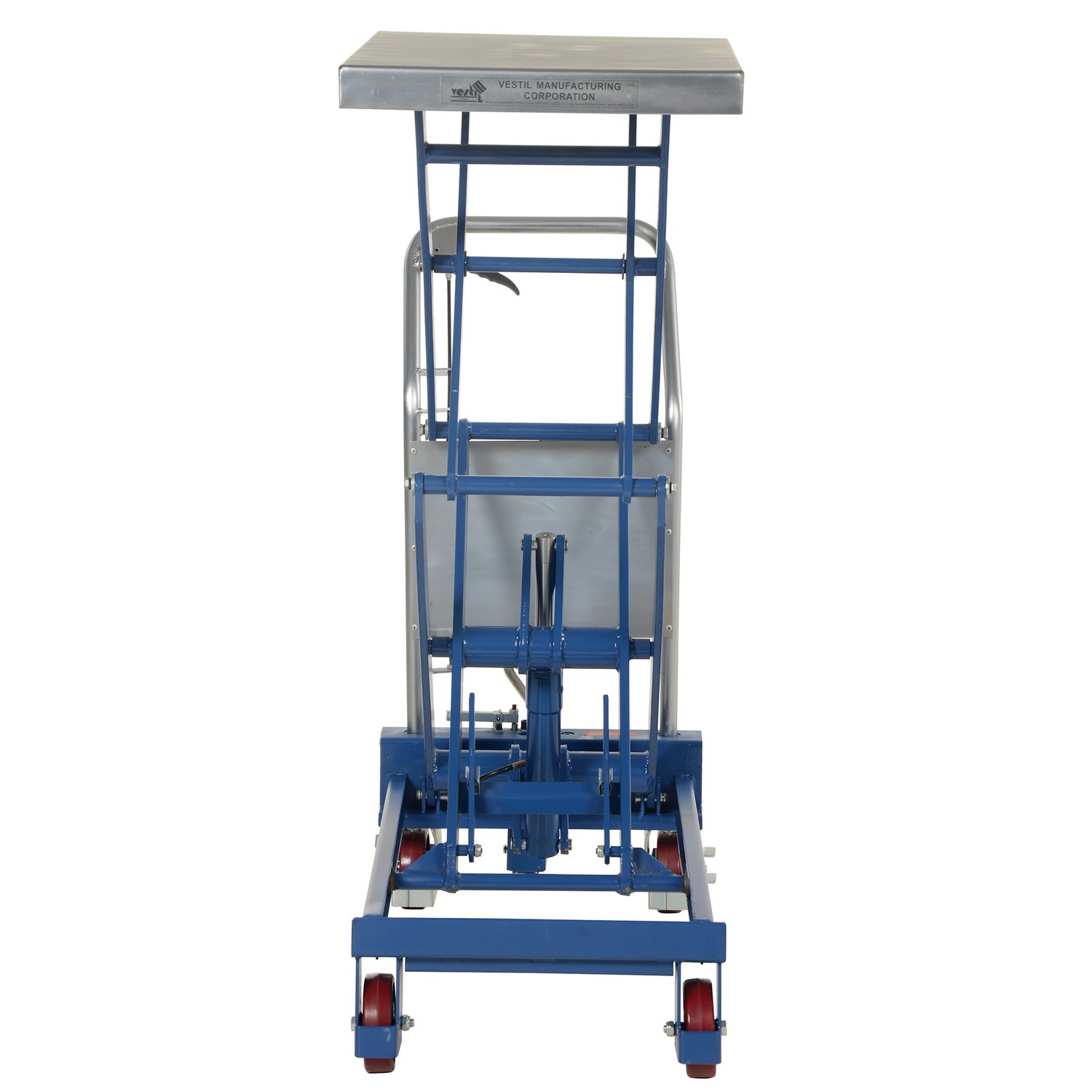

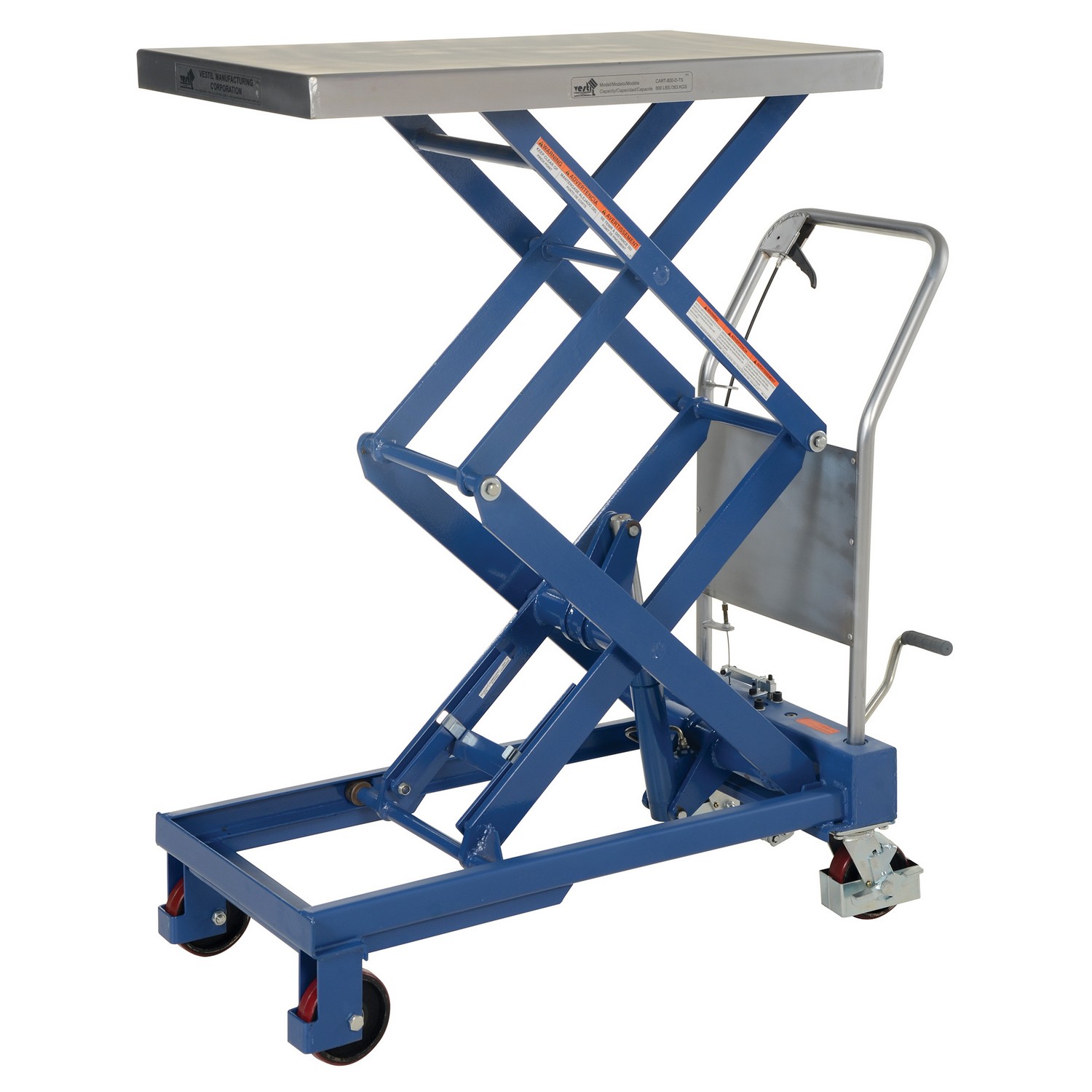

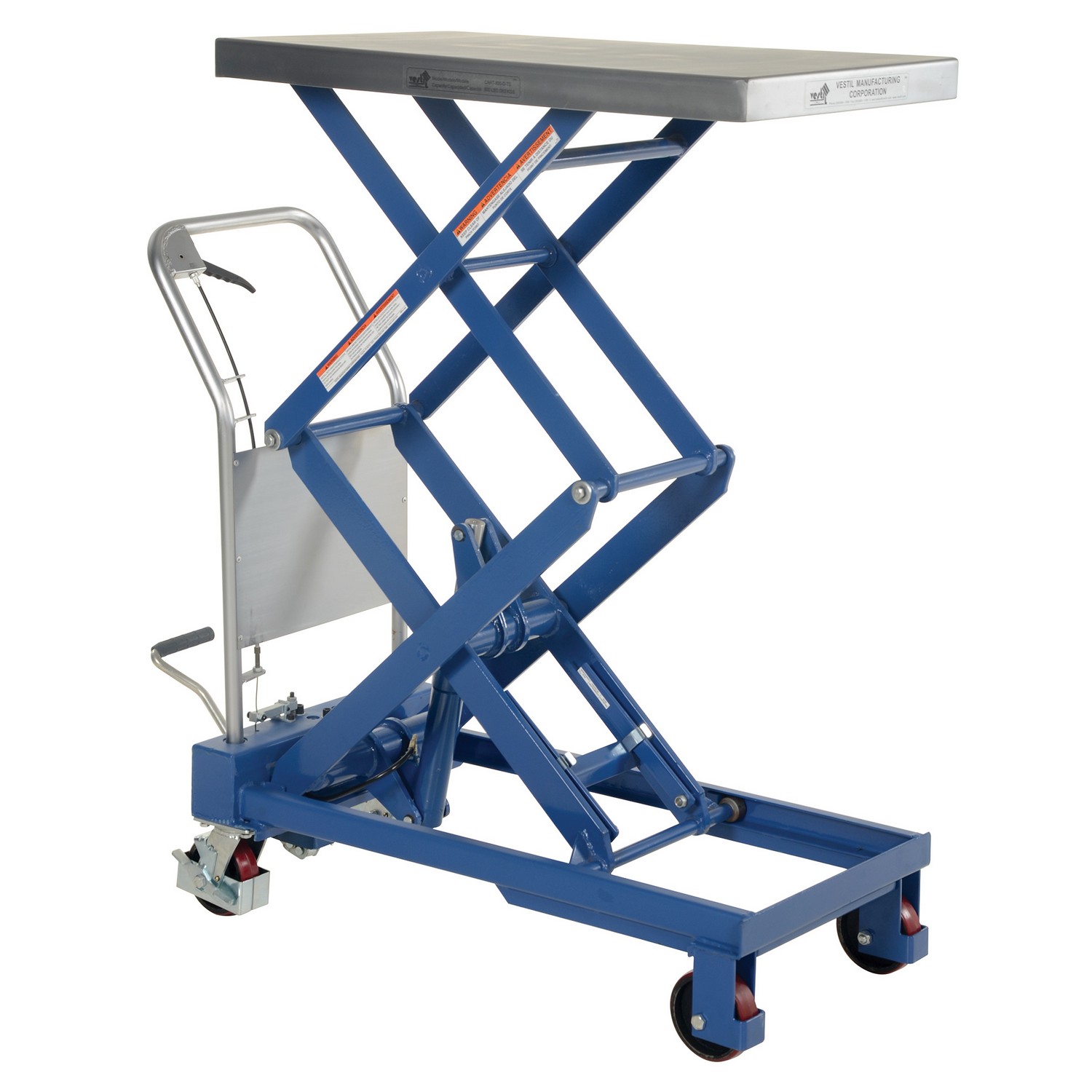

The Vestil CART-800-D-TS Double Hydraulic Cart is designed to reduce bending and heavy lifting by elevating and transporting materials at adjustable heights. This dual-speed hydraulic elevating cart provides a practical solution for loading from a worktable, raising materials to a transport height, and then lowering for unloading at the destination. Built with a steel frame and finished in blue, the cart supports an 800 lb uniform capacity and features a 35-1/2 inch by 20 inch platform that positions materials within easy reach for handling and offloading.
Construction details include four polyurethane casters for mobility, with two swivel units that have brakes and two rigid casters to maintain stability during movement. The foot pump offers a two-speed operation and includes a soft-lowering valve to control descent gently, while an internal velocity fuse in each cylinder provides a fail-safe that helps prevent sudden drops. The scissor-style lifting mechanism provides a lift per stroke of 3/4 inch, allowing incremental height adjustments from a lowered height of 15-1/2 inches to a raised height of 51-7/8 inches.
Ideal for facilities where frequent material transfers occur between work surfaces and transport routes, this cart accommodates practical workflows by enabling easy loading, controlled elevation, and secure unloading. The platform dimensions, combined with the caster configuration, support maneuverability when loaded without sacrificing stability. For proper operation, users should consider the platform size, the 800 lb capacity, and the height range to ensure compatibility with their work surface and destination loads.
Features:
- Unique lift design quickly raises & lowers material
- Ergonomic cart design improves user safety
- Caster construction provides easy portability when loaded
- Steel construction offers long lasting rugged use
- Two rigid and two swivel casters with brakes for stability
- Poly-on-poly casters for smooth transport
- Elevation per stroke of 3/4 inch
- Color:
- Blue
- Material:
- Steel
- Uniform Capacity (lb.):
- 800
- Platform Width (in.):
- 20
- Platform Length (in.):
- 35-1/2
- Lowered Height (in.):
- 15-1/2
- Raised Height (in.):
- 51-7/8
- Foot Pump Speed:
- Two
- Caster Quantity/Diameter/Width (in.):
- (4) 5 x 2
- Caster Quantity/Type:
- (2) Rigid (2) Swivel with Brakes
- Caster Material:
- Poly-on-Poly
- Scissor Number:
- 2
- Elevation per Stroke (in.):
- 3/4
- Package Size:
- Each
