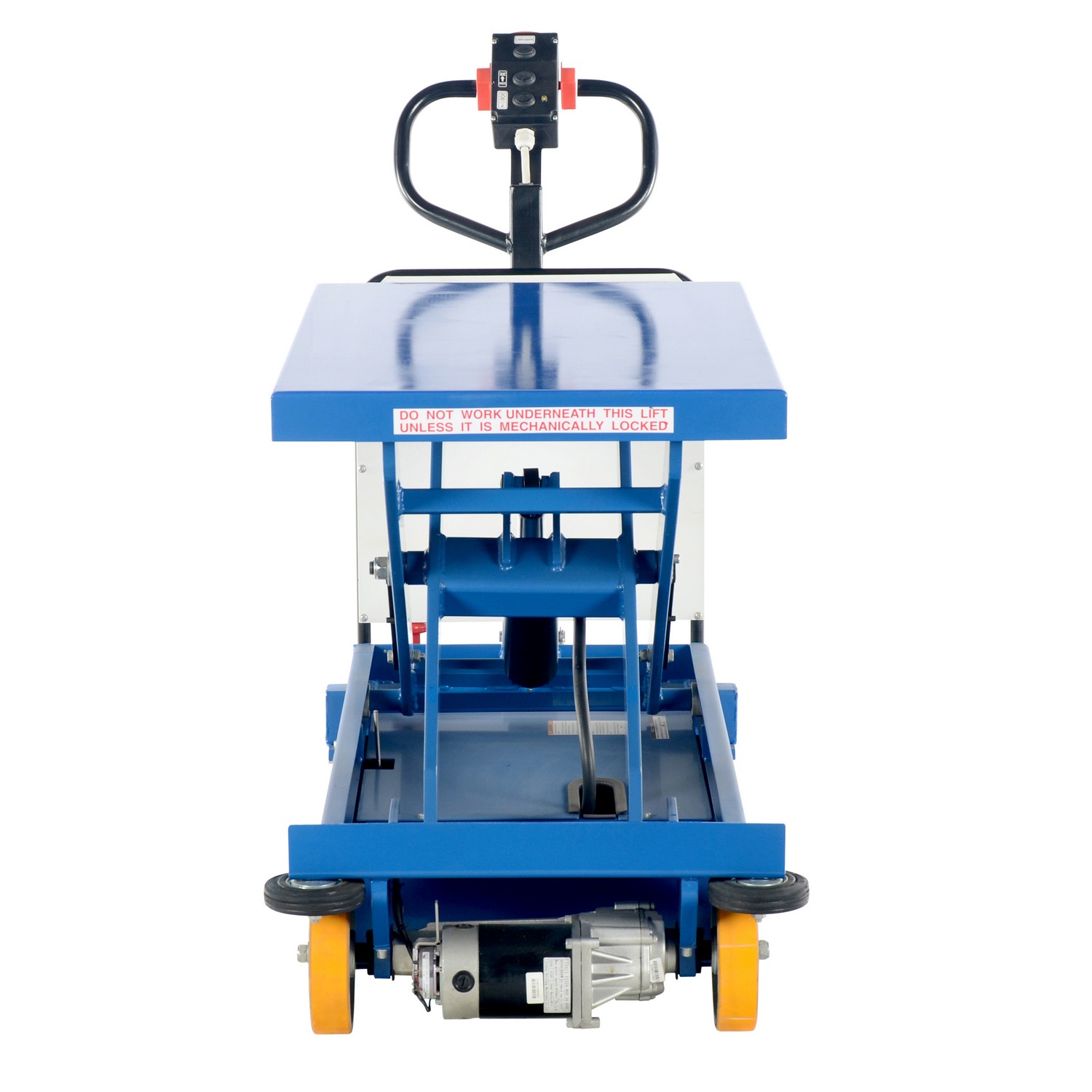

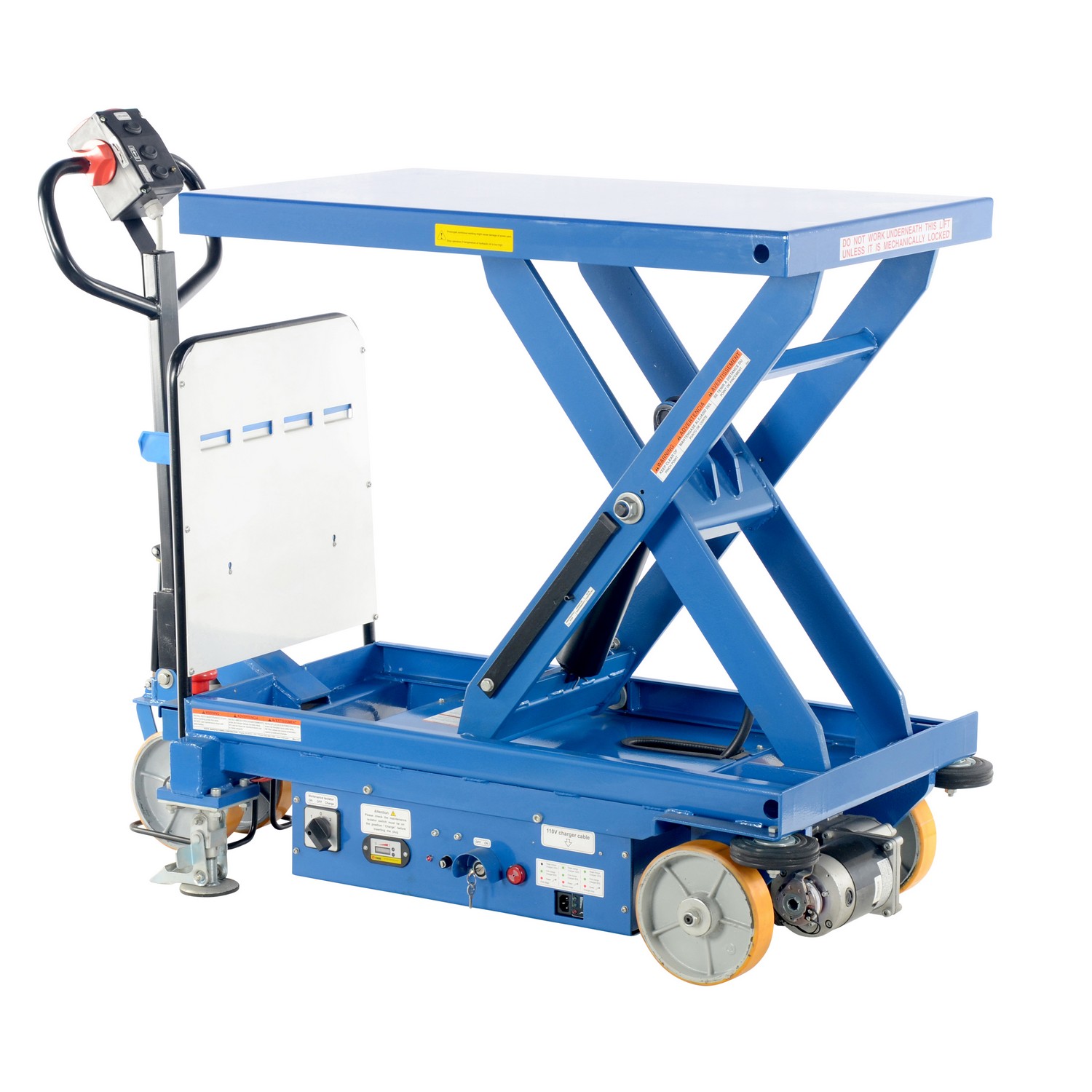

The Vestil CART-1500-DC-CTD HYDRaulic Single Scissor Cart is a fully powered material-handling cart designed to move and lift heavy loads with minimal manual effort. It combines motorized travel with powered lifting to position goods at the desired height, reducing operator strain and improving workflow efficiency. The cart runs on poly-on-steel wheels for smooth, quiet operation, and its high-torque drive and lift motors are tailored for demanding applications where frequent height changes and transport are required. A user-friendly throttle provides adjustable forward and reverse speeds, while deck level controls let the operator raise or lower the platform as needed. An integrated battery system, including a charger and charge indicator, supports on-site operation, and an internal safety velocity fuse in each cylinder adds a layer of protection during operation.
Construction emphasizes rugged longevity: a steel frame and platform support up to 1,500 lb, with a 24 in. by 40 in. deck suitable for a range of palletized or bulk materials. The scissor mechanism is a single-stage design, with a lowered height of 18-1/8 in. and a raised height of 42-3/8 in., enabling access to confined spaces while still providing ample elevation for stacking or positioning. Front and rear casters are provided, with 7-7/8 in. diameter front casters and 7-7/8 in. rear casters, plus 2 in. and 2-1/2 in. widths respectively, contributing to stability and maneuverability when loaded.
This hydraulic cart is intended for industrial settings where material handling and order-fulfillment workflows require reliable lifting and transport in a compact footprint. Operators should account for the powered controls, battery maintenance, and the need to plan for charging intervals in energy management routines. The unit’s 12 V battery system and 24 V DC motors are matched to deliver controlled performance across typical work cell tasks, with a maximum load capacity of 1,500 lb and precise deck placement through the raise/lower controls.
Features:
- Unique lift design quickly raises & lowers material
- Ergonomic cart design improves user safety
- Caster construction provides easy portability when loaded
- Steel construction offers long lasting rugged use
- Single scissor mechanism provides stable lifting
- Platform dimensions: 40 x 24 inches
- DC motor voltage: 24V, Battery voltage: 12V
- Color:
- Blue
- Material:
- Steel
- Uniform Capacity (lb.):
- 1500
- Platform Width (in.):
- 24
- Platform Length (in.):
- 40
- Lowered Height (in.):
- 18-1/8
- Raised Height (in.):
- 42-3/8
- Scissor Type:
- Single
- Front Caster Diameter (in.):
- 7-7/8
- Front Caster Width (in.):
- 2
- Rear Caster Diameter (in.):
- 7-7/8
- Rear Caster Width (in.):
- 2-1/2
- DC Motor Voltage:
- 24
- Forward and Reverse Speeds (mph):
- 0-3.7
- Battery Voltage:
- 12
- Package Size:
- Each
