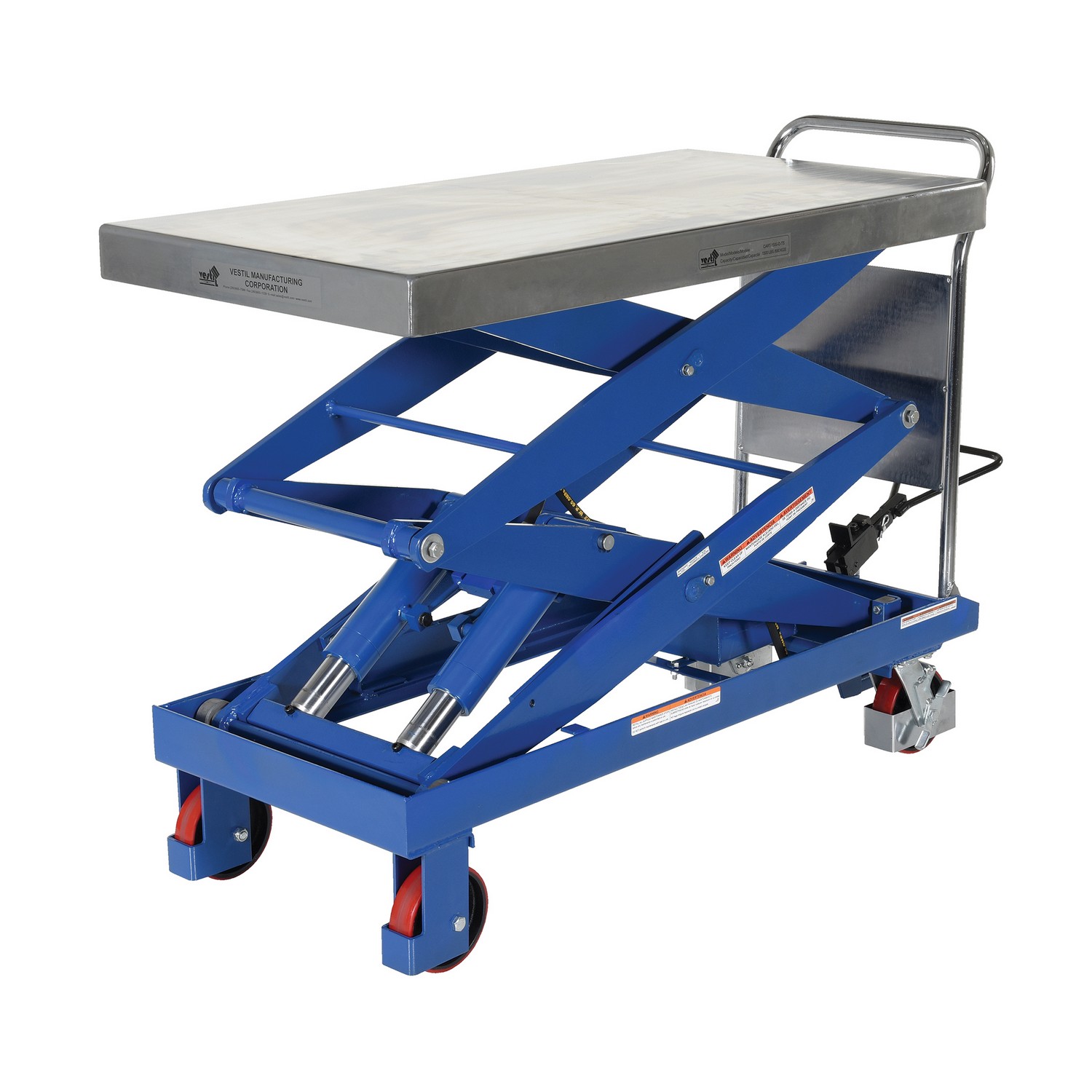

The Vestil CART-1500-D-TS Hydraulic Elevating Cart is designed to reduce bending and heavy lifting by smoothly lifting and lowering loads to ergonomic working heights. This dual-scissor cart provides a stable platform that can be raised from a lowered height of 19 inches to 68 inches, allowing easier transfer of material from a table to transport height and on to a destination. The hydraulic system features a two-speed foot pump with a soft-lowering valve and an internal safety velocity fuse in each cylinder, supporting controlled, safe operation during elevation and descent. Built with steel construction and a 1,500 lb capacity, the cart offers rugged durability suitable for demanding material-handling tasks, while polyurethane casters enable mobility on firm floors. Four casters include two rigid and two swivel with brakes, all with polyurethane on steel wheels to balance load stability with maneuverability when the cart is loaded.
The cart’s platform measures 47-1/2 inches in length by 24 inches in width, providing ample surface area for common industrial items. The design emphasizes portability and ergonomic workflow: material can be positioned on the cart from a table, raised to a comfortable transport height, wheeled to the destination, then lowered for unloading. The included features and steel construction are intended to support repeated lifting cycles in busy facilities, while the caster configuration helps maintain control as loads move through work paths and doorways. This model uses a blue-painted steel frame and a scissor mechanism that is described as double, yielding predictable performance across lifts.
For installation and use, ensure your floor surfaces are compatible with polyurethane wheels to maximize caster life and maneuverability. With a 1,500 lb uniform capacity and the specified platform dimensions, plan load dimensions and center of gravity accordingly to maintain stability during elevation changes and conveying. Package size is listed as Each, reflecting individual unit packaging for straightforward procurement and replacement.
Features:
- Unique lift design quickly raises & lowers material
- Ergonomic cart design improves user safety
- Caster construction provides easy portability when loaded
- Steel construction offers long lasting rugged use
- Platform 47-1/2 in L x 24 in W for ample loading space
- Dual scissor mechanism with 1,500 lb capacity
- Four caster setup (2 rigid, 2 swivel with brakes) for stability
- Color:
- Blue
- Material:
- Steel
- Uniform Capacity (lb.):
- 1500
- Platform Width (in.):
- 24
- Platform Length (in.):
- 47-1/2
- Lowered Height (in.):
- 19
- Raised Height (in.):
- 68
- Foot Pump Speed:
- Two
- Caster Quantity/Diameter/Width (in.):
- (4) 6 x 1-1/2
- Caster Quantity/Type:
- (2) Rigid (2) Swivel with Brakes
- Caster Material:
- Poly-on-Steel
- Scissor Type:
- Double
- Package Size:
- Each
