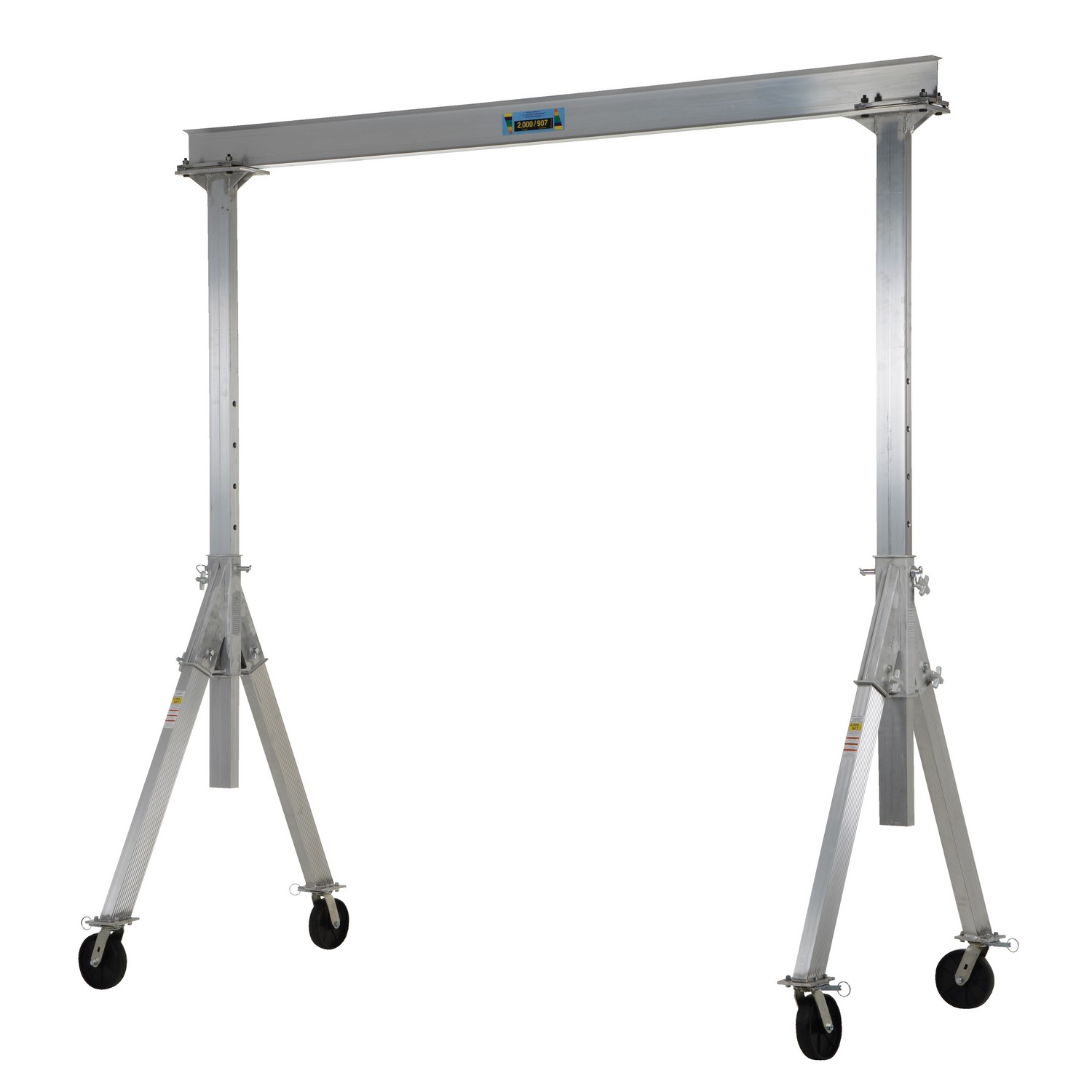

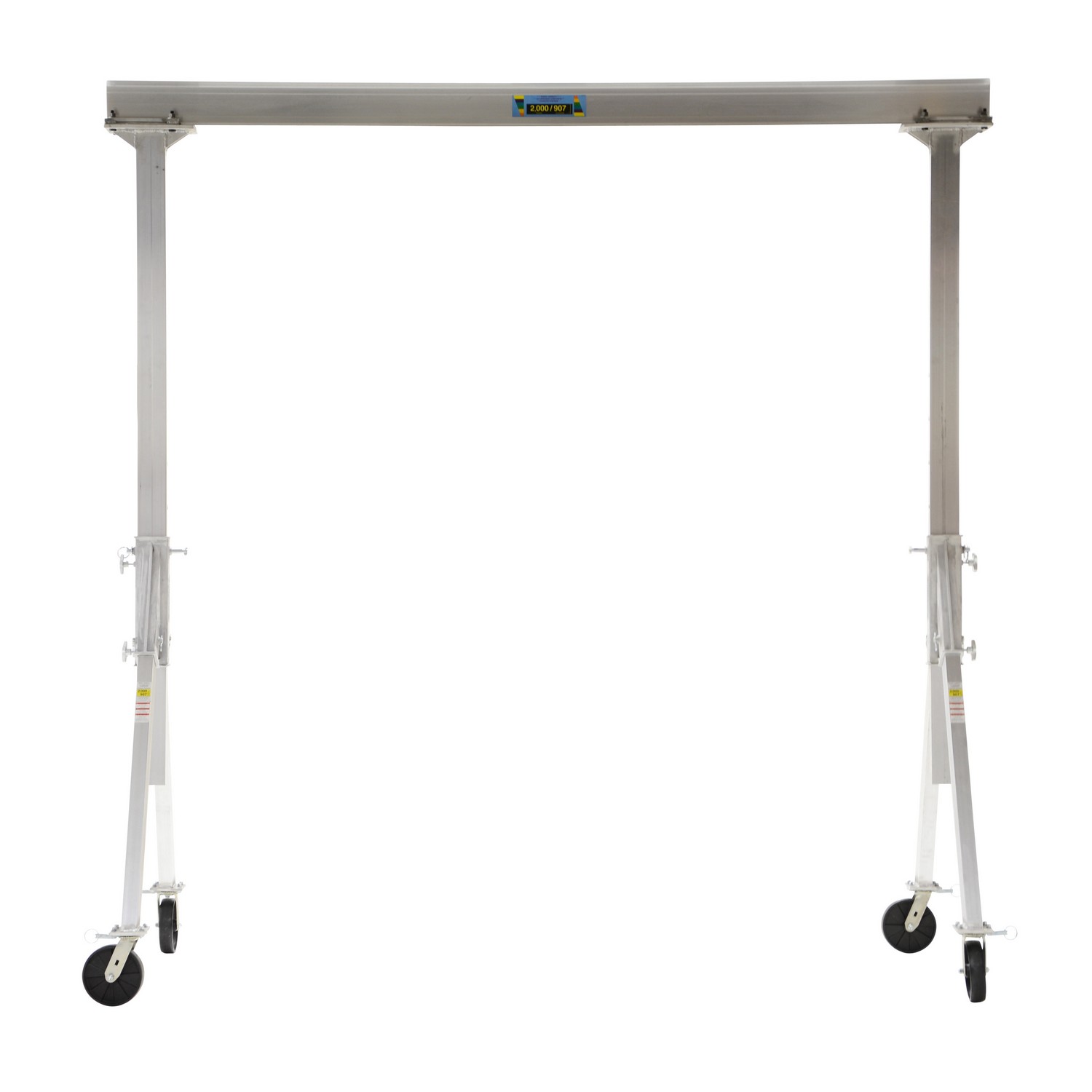

The Vestil AHA-2-10-10 Adjustable Aluminum Gantry Crane is a portable, lightweight lifting solution designed for outdoor and corrosion-prone environments. Built from heavy-duty aluminum, it provides a rigid, corrosion-resistant framework that supports up to 2,000 lb. The unit features an adjustable-height I-beam, allowing height changes without requiring a hoist or fork truck, which can simplify setup in space-limited or temporary work areas. All connections are pinned to enable quick, single-person assembly and disassembly, making it practical for frequent repositioning or temporary lifting tasks. Each gantry includes four swivel, glass-filled nylon casters with four-way position locks to help stabilize and maneuver the unit and is designed to lock the rigging in one of four directions for controlled positioning. An optional total-locking caster option is available to lock both rigging and wheel rotation for added stability in demanding environments.

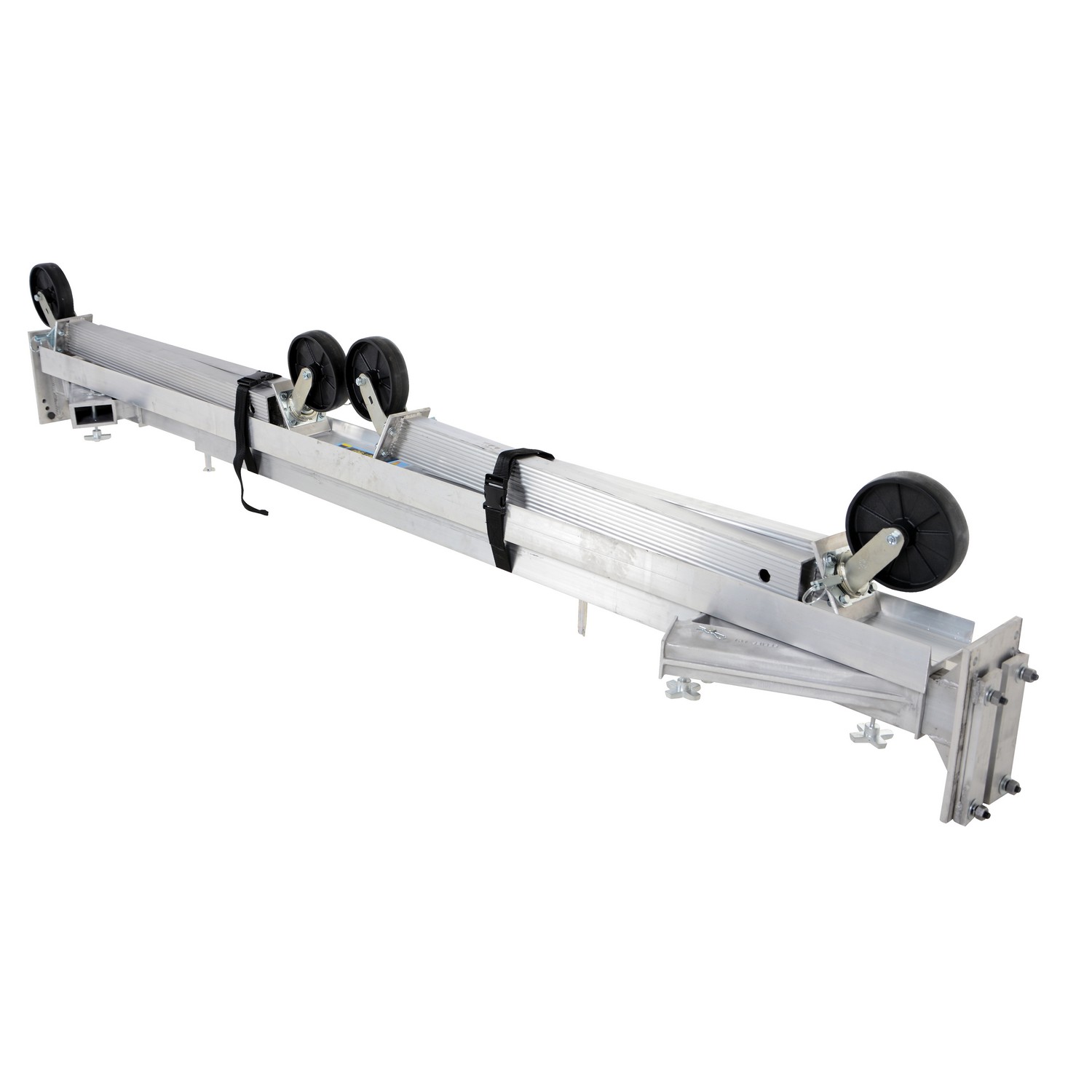

Key construction details emphasize a modular, all-aluminum frame and a lightweight I-beam configuration that facilitates easy transport and setup. The design aligns with CMAA and ANSI specifications, providing a reference point for expected performance in standard industrial contexts where a portable gantry is preferred over fixed-installation solutions. The package is configured for straightforward use: the four casters support mobility, and the 6-inch I-beam height clearance plus a 10-foot overall beam length define the footprint and lifting reach when deployed. Practical considerations include the need for overhead lifting equipment to apply vertical movement along the beam and the requirement to verify field conditions for outdoor or corrosive settings given the aluminum construction.
Features:
- Heavy-duty welded aluminum construction for long lasting use
- Includes four swivel glass-filled nylon casters with four-way position locks
- Easy adjustable height can be done with fork truck or other overhead lifting device
- 2,000 lb working capacity for overhead material handling
- 10 ft overall I-beam length with 6 in I-beam height
- Under I-Beam Range 92 to 122 in for versatile work areas
- Base width 53-3/4 in ensures stable setup
- Color:
- Silver
- Material:
- Aluminum
- Uniform Capacity (lb.):
- 2,000
- Overall I-Beam Length (ft.):
- 10
- Overall I-Beam Height (in.):
- 6
- I-Beam Flange Width (in.):
- 3-5/16
- Under I-Beam Range (in.):
- 92 to 122
- Base Width (in.):
- 53-3/4
- Caster Quantity/Diameter/Width (in.):
- (4) 8 x 2
- Caster Type:
- Swivel (4) Position Locking Casters
- Caster Material:
- Glass-Filled Nylon
- Caster Top Plate (in.):
- 4 x 4 1/2
- Usable Trolley Travel Distance (in.):
- 96-1/4
- Increment Height Adjustment (in.):
- 6
- Package Size:
- Each
