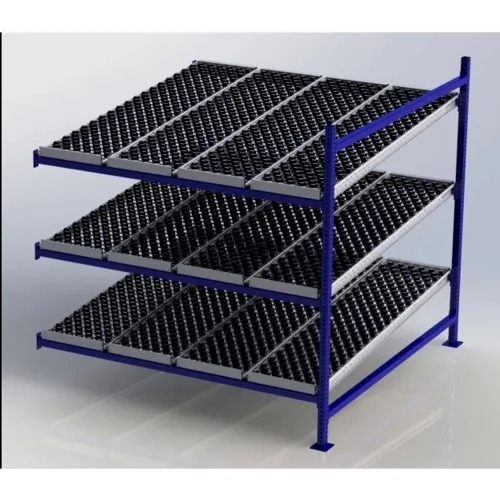

The UNEX FC99SW72723-A represents a Heavy Duty Gravity Flow Rack add-on designed to expand storage capacity with a three-level wheelbed system. Built as a stand-alone add-on, it is configured for efficient front-feeding and stable pick-point presentation, helping minimize reach-time and streamline FIFO-style material handling in busy warehouses or manufacturing facilities.
Constructed from steel with 1-3/4" square tubular uprights and beams, the unit features welded base plates for secure floor anchoring and 1" on-center punched posts for adjustable placement. The wheelbed configuration provides controlled movement and front-to-back accessibility across three levels, each with a 1,000 lb capacity. A blue powder coat finish delivers durable protection against corrosion and wear in typical material-handling environments. The kit includes two upright posts, four front-to-back beams, and two cross beams per level, and it ships as a single add-on designed for straightforward assembly.
Typical applications include high-density storage where products must remain accessible at the pick location while allowing gravity-based flow to keep items readily available for order fulfillment. While this add-on is stationary, its gravity-fed design supports efficient segregation and retrieval of items on each level. Practical considerations include confirming dimensional fit (72" W x 72" D x 72" H) and ensuring compatible mounting with existing rack infrastructure. The product is sold as an add-on and includes specified components; for accurate shipping costs, the item should be added to a quote, and returns are not eligible as noted by the manufacturer.
Features:
- Three levels for compact, organized storage
- Tilted shelf design for gravity flow and accessibility
- Weight capacity: 3000 lbs total, 1000 lbs per shelf
- Wheel bed track configuration for smooth material movement
- Steel construction with blue finish
- Dimensions: 72 in W x 72 in D x 72 in H
- Assembly required; stationary installation
- Width:
- 72 in
- Depth:
- 72 in
- Height:
- 72 in
- Weight:
- 676 lbs
- Weight Capacity:
- 3000 lbs
- Assembly Required:
- Yes
- Type:
- Rack Add-On
- Shelf Capacity:
- 1000 lbs
- Shelf Type:
- Tilted
- Color:
- Blue
- Number of Levels:
- 3
- Track Configuration:
- Wheel Bed
- Mobile or Stationary:
- Stationary
- Material:
- Steel
- Description:
- Heavy Duty Gravity Flow Rack
- Manufacturers Part Number:
- FC99SW72723-A
- Brand:
- Unex
- Package Size:
- Each
