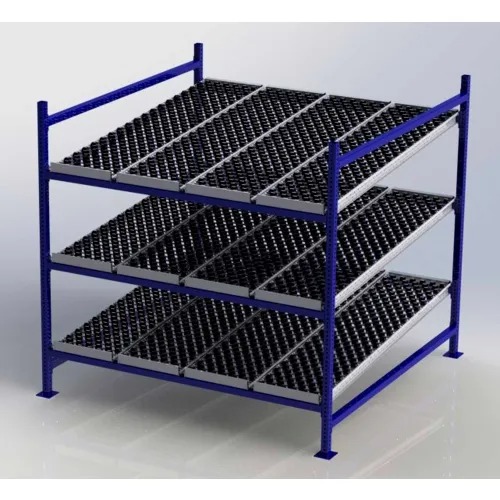

The UNEX FC99SW72723-S Flow Cell Heavy Duty Gravity Rack is a stationary, starter rack designed for high-capacity material flow with a wheelbed track configuration. It supports front feeds and keeps products at the pick point, helping streamline replenishment and order fulfillment in busy spaces. The unit features 3 levels with a 1,000 lb capacity per level, yielding a total shelf capacity of up to 3,000 lbs, making it suitable for organized, gravity-fed storage of heavier items. Construction uses steel uprights and horizontal beams formed from 1-3/4" square tubing, with welded base plates for secure anchoring and solid stability on the floor. The wheelbed design and 7 year limited warranty reflect a focus on durability and long-term performance in a demanding warehouse setting.
Key details include powder-coated blue finish for corrosion resistance and a 72"W x 72"D x 72"H footprint, which fits into compact floor plans while providing three levels of accessible storage. The system ships as a starter rack with four uprights, front-to-back beams, and cross beams per level, requiring assembly to install. Uprights are punched at 1" centers to accommodate modular adjustments as storage needs evolve. Wheels with a low-friction 1.6" hex hub and a 5/16" steel axle support movement where appropriate, though this model is designated stationary, ensuring stable, gravity-driven flow once configured.
This rack is designed for use in facilities that rely on gravity flow to present inventory at the pick point, with tilted shelf design to assist product presentation. It is specified as a 72" by 72" by 72" unit and comes in blue, with a total weight around 734 lbs. It’s important to note that the associated shipping cost should be calculated via quote, and the item is not eligible for return or exchange per manufacturer terms.
Features:
- Three-level starter rack
- Wheel bed gravity flow track
- Tilted shelves with 1000 lb capacity per shelf
- Total weight capacity 3000 lb
- Steel construction
- Blue finish
- Static (stationary) configuration
- Width:
- 72 in
- Depth:
- 72 in
- Height:
- 72 in
- Weight:
- 734 lbs
- Weight Capacity:
- 3000 lbs
- Assembly Required:
- Yes
- Type:
- Rack Starter
- Shelf Capacity:
- 1000 lbs
- Shelf Type:
- Tilted
- Color:
- Blue
- Number of Levels:
- 3
- Track Configuration:
- Wheel Bed
- Mobile or Stationary:
- Stationary
- Material:
- Steel
- Description:
- Heavy Duty Gravity Flow Rack
- Manufacturers Part Number:
- FC99SW72723-S
- Brand:
- Unex
- Package Size:
- Each
