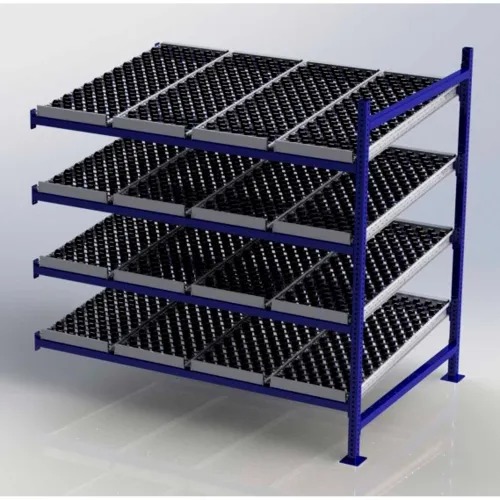

The UNEX FC99SW72484-A is a heavy-duty gravity flow rack add-on designed to extend storage capacity with a 4-level wheelbed configuration. This unit integrates with compatible rack systems to support front-feed pick processes, helping keep items at the defined pick point for efficient replenishment and order fulfillment. It is constructed from steel with a powder-coated blue finish, and includes welded base plates for secure floor anchoring, enabling sturdy, semi-permanent setup in industrial spaces.
Key construction details include 1-3/4" square tube steel uprights and beams, with 1" on-center punched posts to aid alignment during assembly. The wheelbed system uses 1.6" hex hub wheels with a low-friction design and a 5/16" steel axle, supporting smooth material flow along the rack. The configuration provides three levels with a stated 1000 lb per-level shelf capacity, and an overall weight capacity of 3000 lbs for the 4-level add-on, facilitating heavy parts handling. The unit ships as an add-on module and requires assembly, with the expectation that it can be integrated into a compatible gravity-flow framework to achieve front-to-back flow. The unit is offered with a warranty period of seven years from the manufacturer, signaling confidence in its structural integrity under typical warehouse use.
Practical considerations for choosing this add-on include ensuring compatibility with your existing rack system, verifying the target mounting and spacing, and planning for the 72" W x 48" D x 72" H footprint. The component is listed as a stationary, wheel-bed configuration with a tilt-style shelf design, which supports stable item presentation along the flow path. Packaging is unit-based (each), so plan for unpacking and assembly in your facility, and confirm any shipping or quotation requirements prior to purchase to avoid surprises on delivery costs.
Features:
- 4 levels of storage
- Tilted shelf design for gravity flow
- Wheel bed track configuration for movement
- Heavy duty steel construction
- Total weight capacity: 3000 lbs
- Shelf capacity: 1000 lbs per shelf
- Assembles on-site as a rack add-on
- Width:
- 72 in
- Depth:
- 48 in
- Height:
- 72 in
- Weight:
- 661 lbs
- Weight Capacity:
- 3000 lbs
- Assembly Required:
- Yes
- Type:
- Rack Add-On
- Shelf Capacity:
- 1000 lbs
- Shelf Type:
- Tilted
- Color:
- Blue
- Number of Levels:
- 4
- Track Configuration:
- Wheel Bed
- Mobile or Stationary:
- Stationary
- Material:
- Steel
- Description:
- Heavy Duty Gravity Flow Rack
- Manufacturers Part Number:
- FC99SW72484-A
- Brand:
- Unex
- Package Size:
- Each
