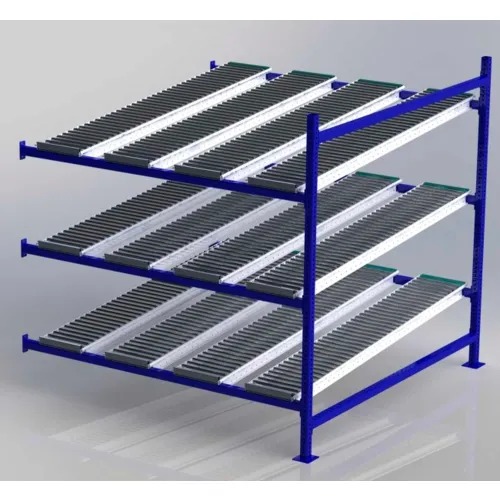

The UNEX FC99SR72723-A is a heavy-duty gravity flow rack add-on designed to expand storage capacity for fast-moving parts and small items. This 72"W x 72"D x 72"H unit employs 1-3/4" square-tube steel uprights and beams with welded base plates for secure floor anchoring, creating a robust framework that supports organized, first-in, first-out (FIFO) access. Each level features four roller tracks, with rollers made from tempered aluminum and full-length steel axles, delivering smooth, front-feeding flow of totes and containers. The system carries a 1,000 lb per-level shelf capacity and a total weight capacity that can accommodate demanding material handling requirements, while the powder-coated blue finish provides durability in typical shop or warehouse environments. Assembly is required but designed for straightforward setup, and the unit includes the necessary uprights, beams, cross members, roller tracks, and hardware to complete a 3-level add-on.
This add-on is configured with four lanes per level, enabling efficient organization and picking at the point of use. The levels adjust in 3" increments, giving flexibility to accommodate varying container heights and palletized or boxed items within the same rack structure. Because it is a stationary add-on, it is intended to complement existing rack systems rather than serve as a mobile solution. The 72" width and depth pair with the 72" height to form a compact yet spacious footprint, suitable for assembly lines, receiving areas, or backroom storage where FIFO flow helps reduce item aging. Note that this item is not eligible for returns, and accurate shipping costs are available through a quote.
Overall, the FC99SR72723-A is positioned as a modular, high-capacity flow rack add-on suitable for facilities needing organized, front-fed storage with durable steel construction and reliable roller-track performance. Compliance details are not provided in the source data, so buyers should confirm compatibility with existing rack systems and facility requirements prior to purchase.
Features:
- Width: 72 in
- Depth: 72 in
- Height: 72 in
- Weight Capacity: 3000 lbs
- Shelf Capacity: 1000 lbs per level
- Number of Levels: 3
- Track Configuration: Roller
- Width:
- 72 in
- Depth:
- 72 in
- Height:
- 72 in
- Weight Capacity:
- 3000 lbs
- Assembly Required:
- Yes
- Type:
- Rack Add-On
- Shelf Capacity:
- 1000 lbs
- Color:
- Blue
- Number of Levels:
- 3
- Track Configuration:
- Roller
- Mobile or Stationary:
- Stationary
- Material:
- Steel
- Manufacturers Part Number:
- FC99SR72723-A
- Lanes per Level:
- 4
- Brand:
- Unex
- Package Size:
- Each
