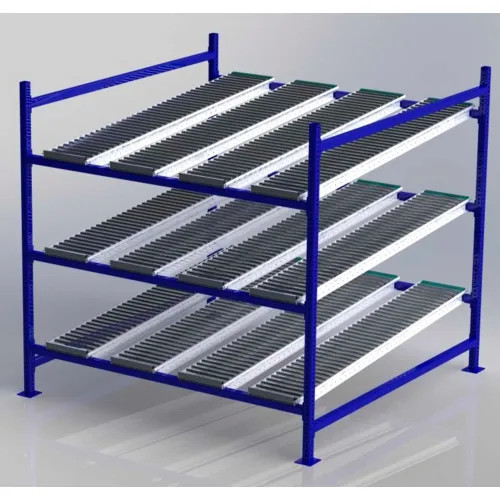

The UNEX FC99SR72723-S Flow Cell Heavy Duty Gravity Rack Starter is a stationary, three-level storage system designed for first-in, first-out (FIFO) flow applications. This starter unit provides four 12-inch roller tracks per level, enabling products to feed from the back and roll forward to the pick point for efficient, orderly retrieval. Crafted from steel with a blue powder-coated finish, the uprights and horizontal beams are built from 1-3/4-inch square tube steel, and the base is secured with welded plates for secure anchoring to the floor. Each level supports up to 1,000 pounds, with a total system capacity of 3,000 pounds, making it suitable for heavier items and bulk handling in warehouse or production settings. The design includes four upright posts, four front-to-back beams, two cross beams per level, and four roller tracks per level, with easy assembly and durable tempered aluminum rollers on full-length steel axles. A 7-year limited warranty offers assurance of long-term performance.
Because accurate shipping cost and handling can vary, this item is listed with its specific dimensions (72 inches wide, 72 inches deep, and 72 inches tall) and 3 levels, ensuring you size the rack to fit your available floor space. The unit ships as a single starter system (each) and is intended to be stationary rather than mobile, making it a stable solution for organized stock staging and fast-moving inventory. When planning placement, consider the 72" W x 72" D footprint and the 3" level-to-level adjustability inherent in the design, which facilitates positioning products to optimize pick paths and flow. Note that assembly is required, and the stated weight and shelf capacities should guide load distribution and safety practices in daily operations.
Features:
- Three-level rack starter with 72"W x 72"D x 72"H dimensions
- Total weight capacity 3000 lbs; shelf capacity 1000 lbs per level
- Roller track configuration for gravity flow
- Stationary steel construction with blue finish
- Assemble required; uses 4 lanes per level
- Manufacturers Part Number FC99SR72723-S
- Width:
- 72 in
- Depth:
- 72 in
- Height:
- 72 in
- Weight Capacity:
- 3000 lbs
- Assembly Required:
- Yes
- Type:
- Rack Starter
- Shelf Capacity:
- 1000 lbs
- Color:
- Blue
- Number of Levels:
- 3
- Track Configuration:
- Roller
- Mobile or Stationary:
- Stationary
- Material:
- Steel
- Manufacturers Part Number:
- FC99SR72723-S
- Brand:
- Unex
- Package Size:
- Each
- Lanes per Level:
- 4=
