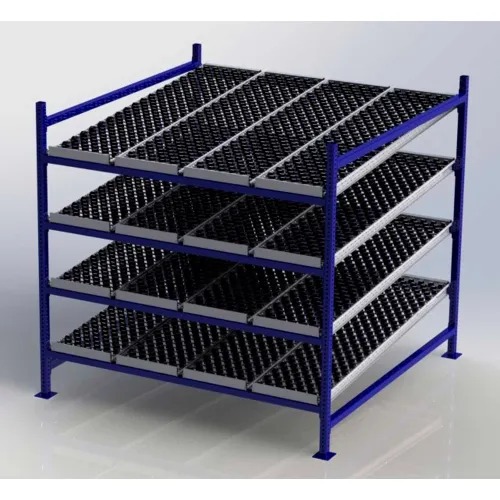

The UNEX FC99SW72724-S Flow Cell Heavy Duty Gravity Rack is a four-level, stationary storage solution designed for efficient, high-volume flow with a front-feed, wheelbed system. This gravity rack is built on welded 1-3/4" square steel uprights and beams, with base plates that allow secure floor anchoring. The wheelbed configuration promotes smooth movement of items toward the pick point, which helps streamline replenishment and order picking in busy material-handling environments. Each level is rated for up to 1,000 lb, and the unit is specified to support up to 3,000 lb total shelf capacity across the 4 levels, providing a solid foundation for bulk storage of heavy components or pallets in a compact 72"W x 72"D x 72"H footprint.
The rack arrives as a starter unit with four upright posts, four front-to-back beams, and two cross beams per level, all finished in blue powder coating for durability and corrosion resistance. Wheels with a 1.6" hex hub and a low-friction design enable smooth operation along the wheelbed track, while punched uprights at 1" on center offer flexible beam spacing during assembly. Assembly is required, and the unit is described as heavy-duty, suitable for warehouse or shop floor environments where dense, easily accessible storage is needed without sacrificing stability.
Consider this model when you need a stationary, gravity-fed rack that maintains product at the pick point while accommodating sizable loads. It is important to note that this is a starter configuration and comes with a fixed 72" × 72" footprint. The unit’s heavy construction and weld-based base anchoring support secure installation, but be sure to plan for proper anchoring and compatible floor conditions. The specification details, including shelf capacity, wheelbed configuration, and material, should be matched to your inventory mix and throughput expectations during quote and procurement.
Features:
- Four (4) levels for dense storage
- Tilting shelves for gravity flow
- Wheel-bed track configuration supports smooth movement
- Heavy duty steel construction for durability
- Total weight capacity of 3,000 lbs
- Shelf capacity 1,000 lbs per shelf
- Dimensions 72W x 72D x 72H
- Width:
- 72 in
- Depth:
- 72 in
- Height:
- 72 in
- Weight:
- 922 lbs
- Weight Capacity:
- 3000 lbs
- Assembly Required:
- Yes
- Type:
- Rack Starter
- Shelf Capacity:
- 1000 lbs
- Shelf Type:
- Tilted
- Color:
- Blue
- Number of Levels:
- 4
- Track Configuration:
- Wheel Bed
- Mobile or Stationary:
- Stationary
- Material:
- Steel
- Description:
- Heavy Duty Gravity Flow Rack
- Manufacturers Part Number:
- FC99SW72724-S
- Brand:
- Unex
- Package Size:
- Each
