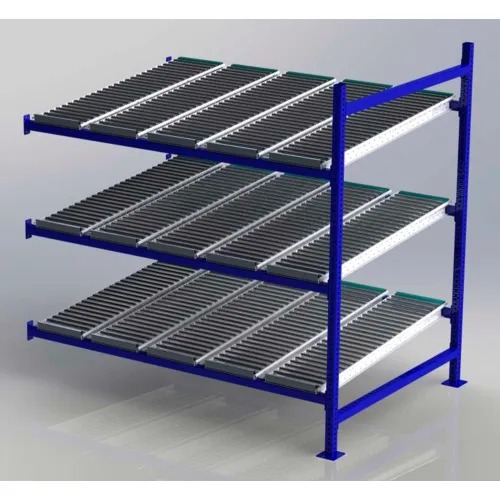

The UNEX FC99SR72483-A Flow Cell Heavy Duty Gravity Rack Add-On is a steel, three-level rack extension designed for high-volume, first-in/first-out material flow. Its 72"W x 48"D x 72"H footprint provides a substantial footprint for expanding existing gravity flow systems, while each level supports up to 1,000 lbs, enabling steady, front-fed access to stored items. The add-on construction utilizes 1-3/4" square steel uprights and beams, with welded base plates for secure anchoring to a concrete floor and four roller tracks per level to facilitate smooth, continuous movement of product through the rack. Powder-coated blue finish offers durable protection against corrosion and wear in demanding storage environments. The rollers are 3/4" diameter tempered aluminum with full-length 3/16" steel axles, geared toward reliable operation under repetitive pick points. Levels are adjustable in 3" increments to accommodate varying product sizes, and the unit includes all necessary hardware to enable straightforward assembly. A key feature of this add-on is its ability to keep inventory near the pick point by allowing front feeds, which can improve picking efficiency in busy warehouses. The design is stationary, meaning it is not meant to be moved while loaded, and the total system capacity is governed by the per-level shelf rating of 1,000 lbs. This unit is listed as a three-level rack add-on and is sold as an individual add-on piece suitable for pairing with compatible base racks to extend flow storage.
Features:
- Brand: Unex
- Part Number: FC99SR72483-A
- Overall Dimensions: 72W x 48D x 72H inches
- Weight Capacity (Overall): 3000 lbs
- Shelf Capacity: 1000 lbs per shelf
- Levels: 3
- Material: Steel
- Color: Blue
- Track Configuration: Roller
- Mobile/Stationary: Stationary
- Assembly Required: Yes
- Width:
- 72 in
- Depth:
- 48 in
- Height:
- 72 in
- Weight Capacity:
- 3000 lbs
- Assembly Required:
- Yes
- Type:
- Rack Add-On
- Shelf Capacity:
- 1000 lbs
- Color:
- Blue
- Number of Levels:
- 3
- Track Configuration:
- Roller
- Mobile or Stationary:
- Stationary
- Material:
- Steel
- Manufacturers Part Number:
- FC99SR72483-A
- Lanes per Level:
- 4
- Brand:
- Unex
- Package Size:
- Each
