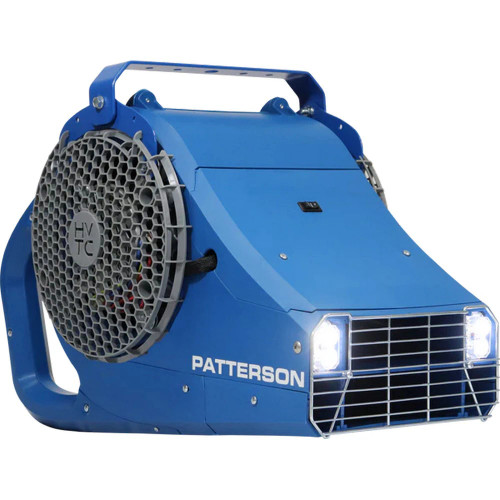

The Patterson FHVTCD-IDL is a high-velocity, 277V loading-dock fan designed to purge truck trailers quickly during manual loading and unloading. With a compact yoke-mount configuration, this unit integrates into standard dock setups while delivering robust airflow to help maintain comfortable working conditions and reduce trailer heat buildup. An optional 15-watt integrated LED dock light enhances visibility at the trailer bulkhead, and a 4-way switch on the power cord can simplify control of both fan and lighting functions on site.
Construction details emphasize a durable small-footprint design. The blower wheel measures 9.5" x 11" and the fan housing is fabricated from high-impact polypropylene, contributing to long-term durability in demanding dock environments. The fan is rated for continuous duty and is designed to operate in ambient temperatures up to 104°F, making it suitable for typical loading-dock conditions. An inlet guard with a .5" opening and optional outlet guards provide protective screening, while the enclosure complies with open-drip-proof (ODP) standards, aligning with common safety expectations in industrial spaces.
For practical use, this model is tailored to purge a 53' truck trailer in minutes by delivering a high-velocity flow at the trailer bulkhead, helping to accelerate cooling and improve air exchange during peak workload periods. The unit operates at approximately 1075 RPM and is specified to produce sound levels around 75 dB at 3 feet, a factor to consider in noise-sensitive facilities. When selecting this fan, plan for the required 277V electrical supply, the need for mounting clearance near the dock edge, and the potential benefit of the built-in LED option for increased visibility. Maintenance is straightforward, with periodic inspection of guards and electrical connections recommended to sustain safe operation.
Features:
- Purge 53' Truck Trailer in Minutes
- Dominates Airflow, Not Your Budget
- More CFM Than Other Dock Fans
- Compact Design for Clearance
- 277V operation with optional LED dock lights
- Yoke mount for flexible installation
- Wheel (Blower):
- 9.5 inches x 11 inches
- Fan Housing:
- High Impact Polypropylene
- Inlet Guards:
- .5 inches Opening
- Outlet Guards (optional):
- .5 inches Opening
- RPM:
- 1075
- Decibels:
- 75 @ 3'
- Enclosure:
- ODP Standard
- Frame:
- 48
- Ambient Temperature:
- 104°F
- Duty Cycle:
- Continuous
- Integrated LED Dock Lights:
- 15W (optional)
- Package Size:
- Each
