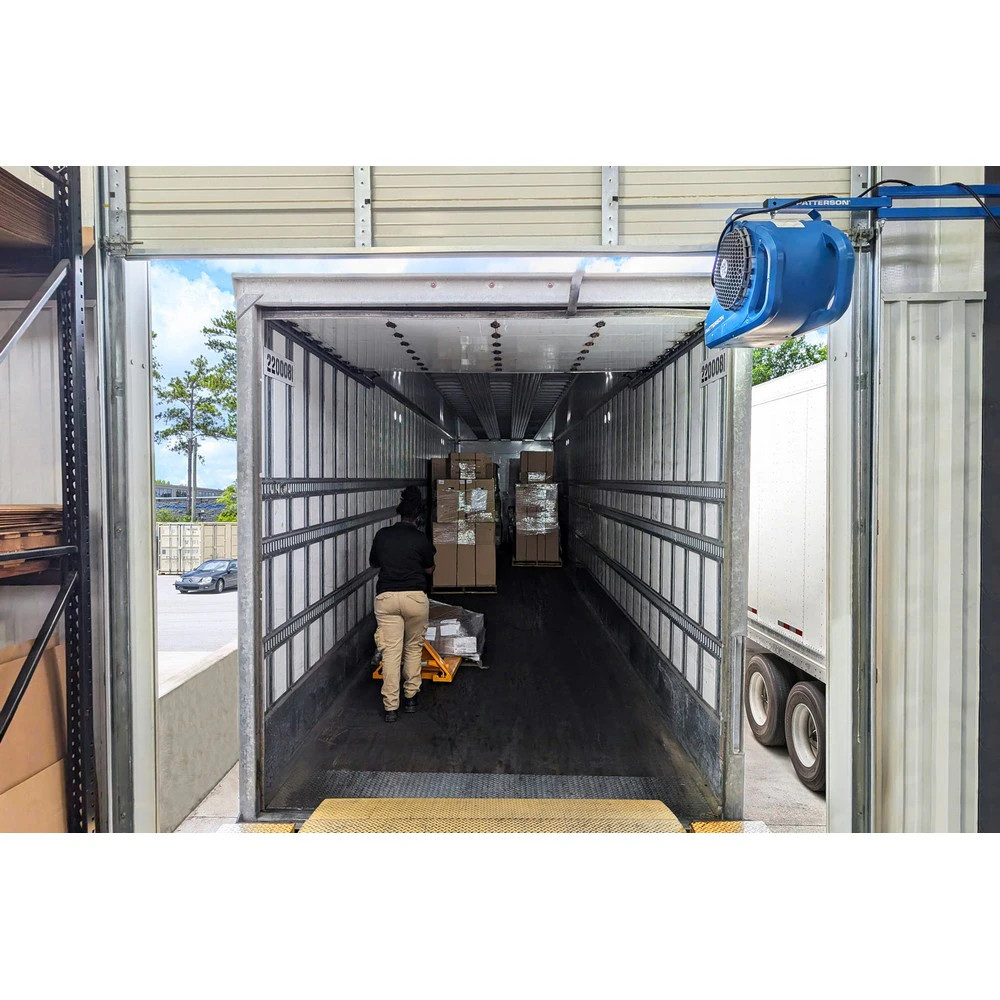

The Patterson FHVTCD-IDL-TC42 is a high-velocity loading dock fan designed to purge truck trailers quickly during manual loading and unloading. Engineered to deliver strong, consistent airflow at the trailer bulkhead, this unit aims to minimize wait times and improve aisle comfort without occupying excessive dock space. The model includes an integrated lighting option, offering a 15-watt LED dock light as an available add-on to help illuminate the trailer interior during operations.

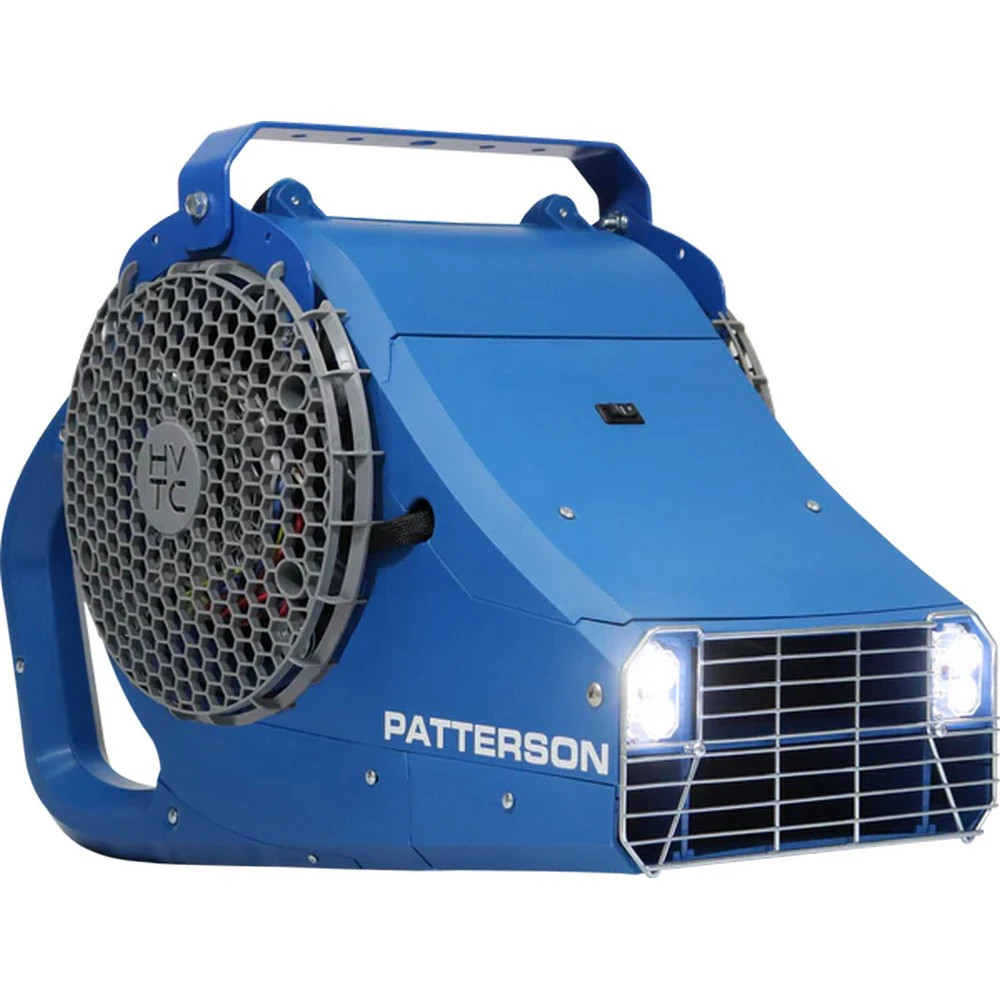

Constructed with a high-impact polypropylene housing and a 9.5" x 11" blower wheel, the fan is configured for continuous duty and is rated for ambient temperatures up to 104°F. The housing and protective guards are sized to fit typical loading dock clearances while maintaining safe access to the motor and impeller. A compact footprint helps maximize clearance at the dock, and the unit’s design emphasizes efficiency, with performance features like a patented air-straightening system contributing to higher airflow with lower amp draw compared to some competing models.
Practical considerations include the option to equip the unit with outlet guards and inlet guards to meet safety preferences, and the possibility of adding a 4-way switch on the power cord for convenient control of both power and light functions. The assembly is described as maintenance-conscious for continuous operation in demanding dock environments, and the integrated LED lighting can aid visibility in trailer interiors during loading or unloading tasks. Compatibility and exact installation details should be verified for your specific dock configuration and electrical supply requirements.
Features:
- Purge 53' Truck Trailer in Minutes
- Dominates Airflow, Not Your Budget
- More CFM Than Other Dock Fans
- Compact Design for Clearance
- Integral 9.5" x 11" Blower Wheel
- High Impact Polypropylene Housing
- Optional 15W LED Dock Lights
- Wheel (Blower):
- 9.5 inches x 11 inches
- Fan Housing:
- High Impact Polypropylene
- Inlet Guards:
- .5 inches Opening
- Outlet Guards (optional):
- .5 inches Opening
- RPM:
- 1075
- Decibels:
- 75 @ 3'
- Enclosure:
- ODP Standard
- Frame:
- 48
- Ambient Temperature:
- 104°F
- Duty Cycle:
- Continuous
- Integrated LED Dock Lights:
- 15W (optional)
- Package Size:
- Each
