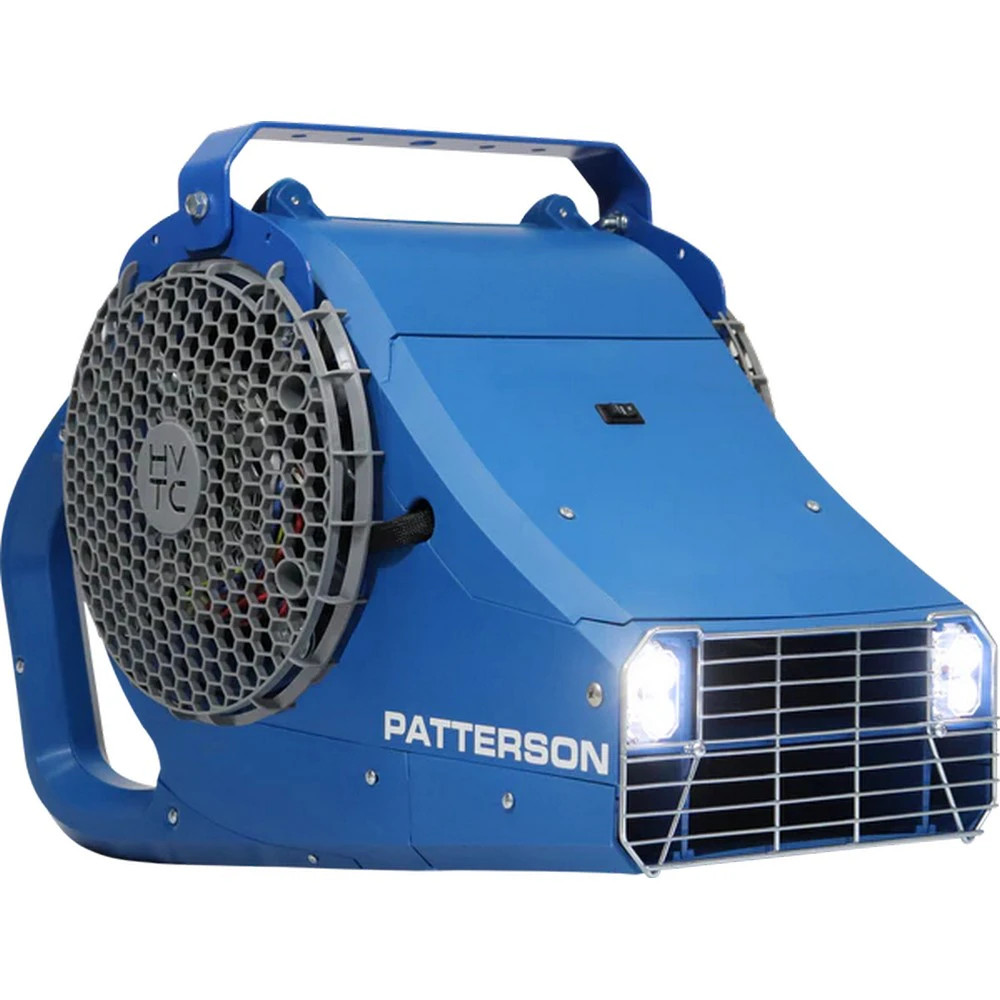

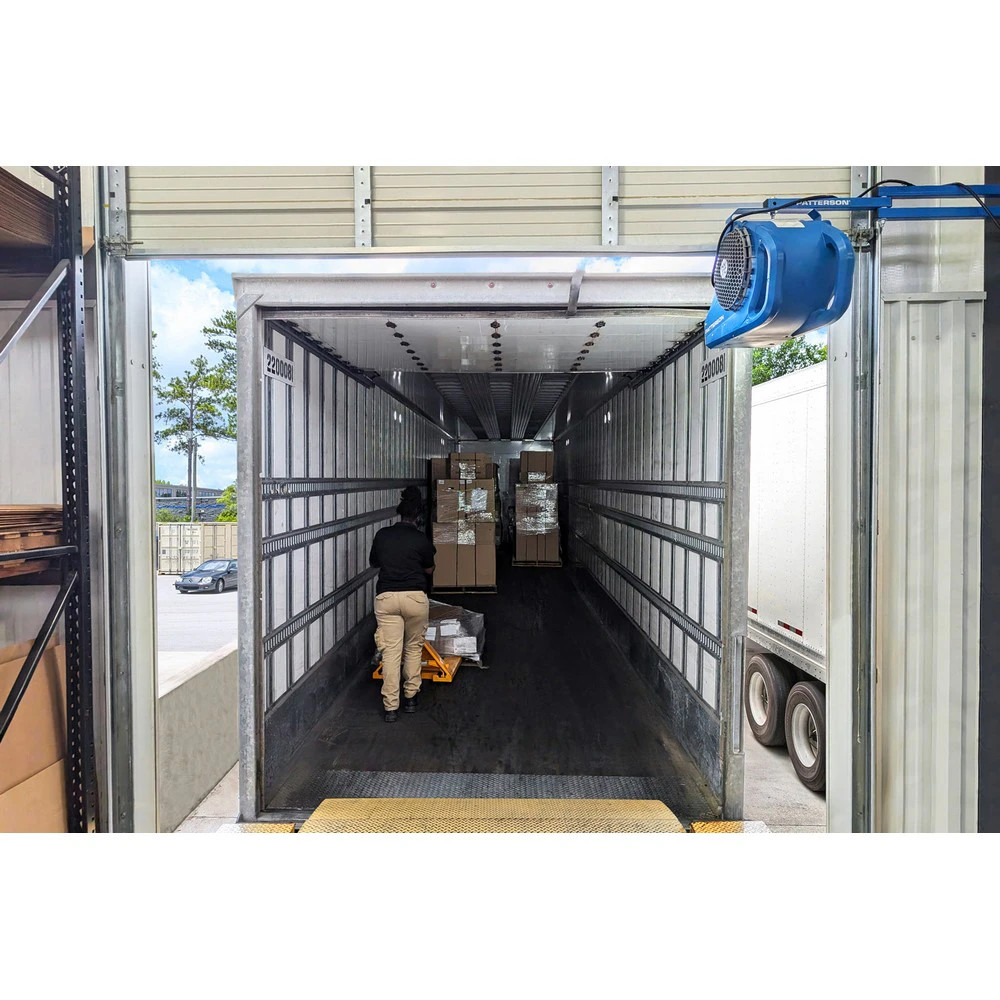

The Patterson FHVTCD-IDL-SWITCH-L-MOUNT is a high-velocity dock fan designed to purge the interior of 53-foot trailer trucks quickly during manual loading and unloading. This unit is specified with 277V operation and includes an integrated 15-watt LED dock light option and a four-way switch on the power cord for convenient control of both power and lighting functions. Its compact mounting footprint is intended to minimize obstruction at the dock while delivering effective airflow for trailer cooling and air exchange.
Features:
- Purge 53' Truck Trailer in Minutes
- Dominates Airflow, Not Your Budget
- More CFM Than Other Dock Fans
- Compact Design for Clearance
- Integrated LED Dock Lights (optional) 15W
- Fixed 90° Mounting (L-Mount) for predictable airflow
- Wheel (Blower):
- 9.5 inches x 11 inches
- Fan Housing:
- High Impact Polypropylene
- Inlet Guards:
- .5 inches Opening
- Outlet Guards (optional):
- .5 inches Opening
- RPM:
- 1075
- Decibels:
- 75 @ 3'
- Enclosure:
- ODP Standard
- Frame:
- 48
- Ambient Temperature:
- 104°F
- Duty Cycle:
- Continuous
- Integrated LED Dock Lights:
- 15W (optional)
- Package Size:
- Each
