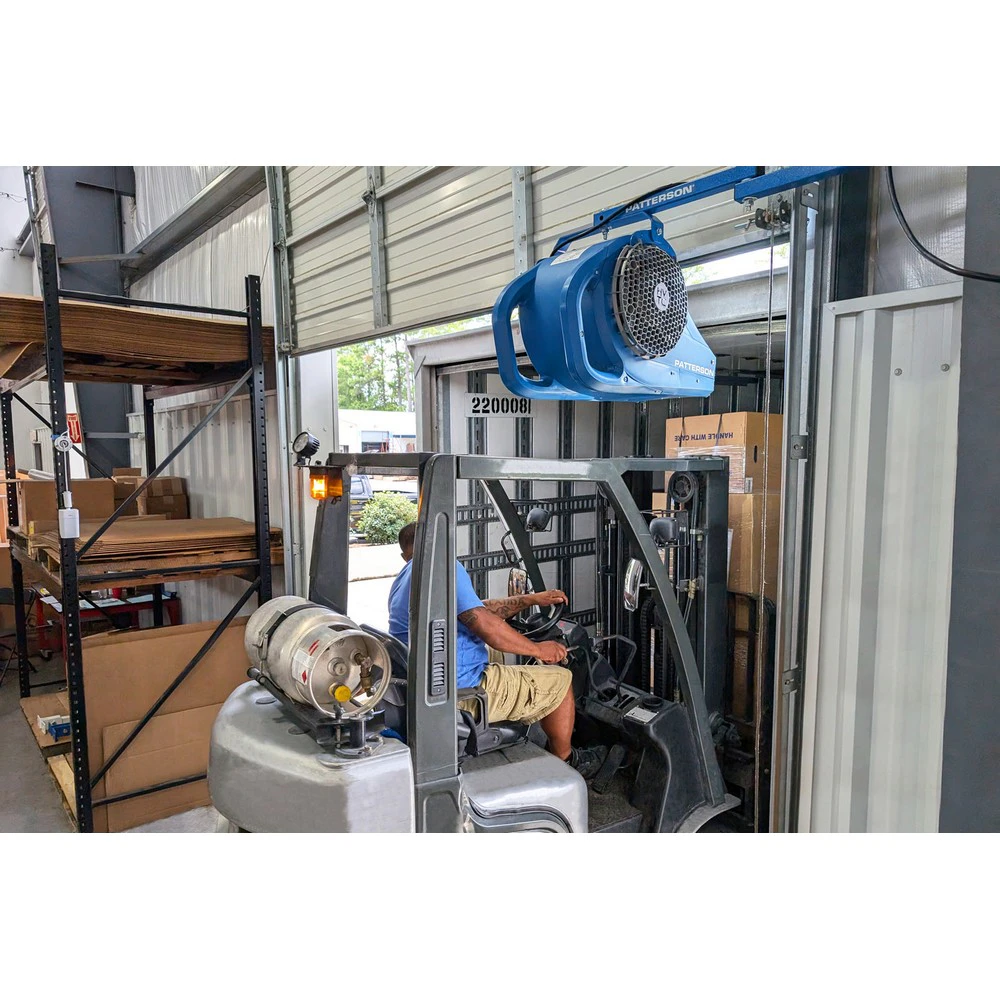

The Patterson FHVTCC-IDL-SWITCH-TC42 is a high-velocity dock fan designed to purge cargo trailers quickly during manual loading and unloading. Engineered to deliver bold air movement, this unit helps establish a refreshing crossflow inside a 53-foot trailer, reducing heat buildup and improving working conditions at the dock. The model is configured for flexibility with an integrated switch and compatibility with optional LED dock lights, allowing operators to control both power and lighting from a single cord for streamlined operation.
Construction blends a compact footprint with robust performance. The blower wheel measures 9.5" x 11" and is housed in high-impact polypropylene to withstand demanding trailer environments. Inlet and optional outlet guards provide safety while maintaining airflow efficiency. The fan runs at 1075 RPM and is rated for continuous duty, with a tested sound level around 75 dB at 3 feet, giving a practical sense of operation without relying on marketing claims. An ambient operating temperature of up to 104°F makes it suitable for warm-weather dock conditions. The integrated design aims to balance strong airflow with clearance, taking up minimal vertical space at the dock door while delivering substantial CFM to purge the trailer interior in minutes.
Ideal use involves anti-heat or hot loading scenarios where rapid trailer purge is beneficial, especially in busy loading bays. The product supports installations that leverage the optional 15-watt LED dock light as a combined solution for visibility and airflow. Safety and maintenance considerations include keeping guards in place and following standard electrical commissioning practices for continuous-duty equipment. Packaging is listed as each unit, with no additional components implied in the core offering.
Features:
- Purge 53' Truck Trailer in Minutes
- Dominates Airflow, Not Your Budget
- More CFM Than Other Dock Fans
- Compact Design for Clearance
- Integrated LED Dock Lights (15W) optional
- Swing Arm mounting for flexible installation
- Wheel (Blower):
- 9.5 inches x 11 inches
- Fan Housing:
- High Impact Polypropylene
- Inlet Guards:
- .5 inches Opening
- Outlet Guards (optional):
- .5 inches Opening
- RPM:
- 1075
- Decibels:
- 75 @ 3'
- Enclosure:
- ODP Standard
- Frame:
- 48
- Ambient Temperature:
- 104°F
- Duty Cycle:
- Continuous
- Integrated LED Dock Lights:
- 15W (optional)
- Package Size:
- Each
