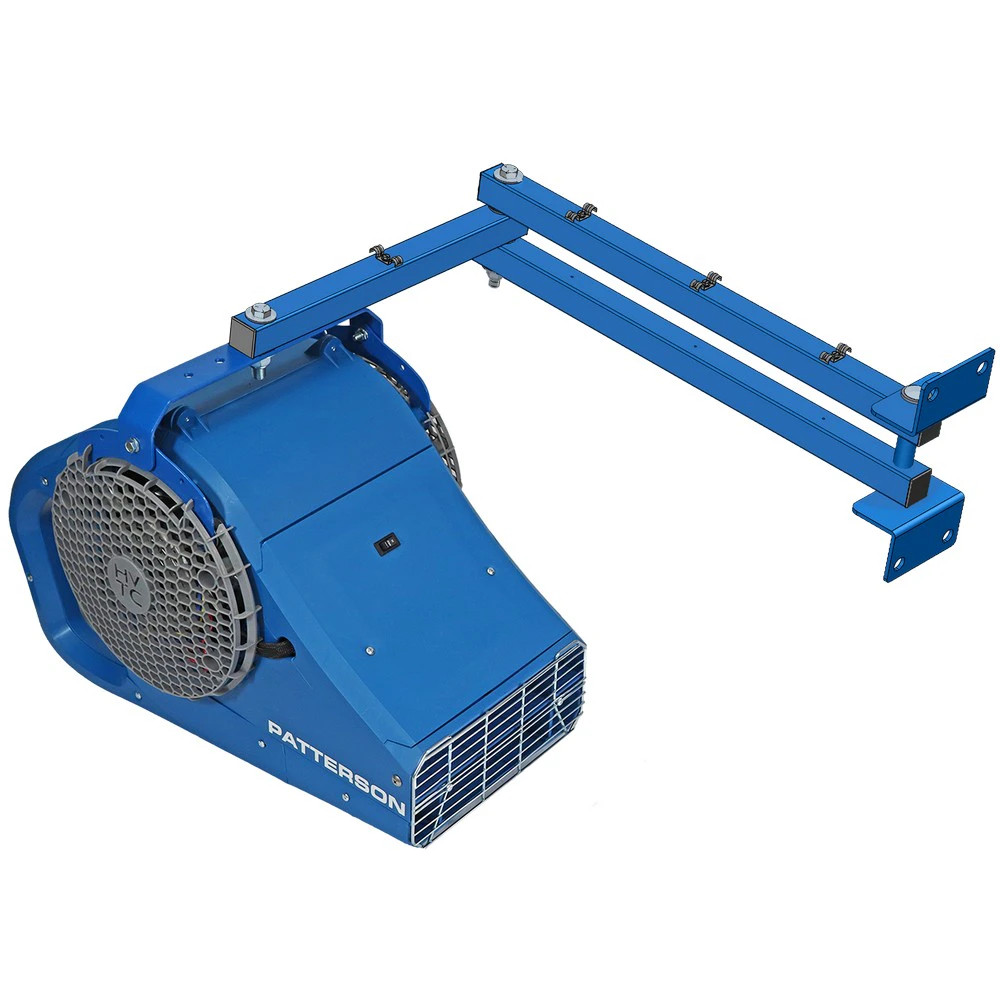

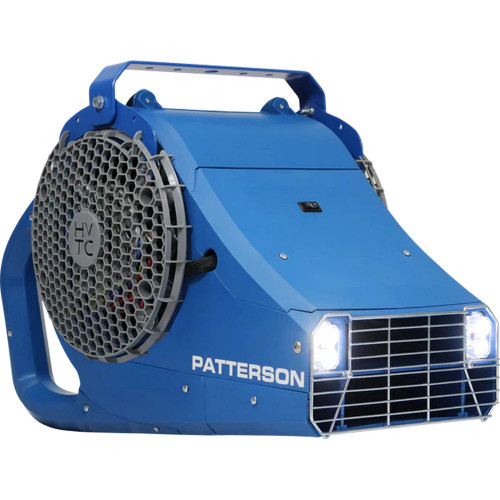

The Patterson HVTC-L-MOUNT Loading Dock Fan is a high-velocity solution designed to purge truck trailers quickly during manual loading and unloading. Engineered for efficiency and strong airflow, this 115V unit helps refresh the trailer interior, contributing to a more comfortable and productive dock operation. The model is built for mounting at the dock and is configured without built-in lighting, with an option to add integrated 15W LED dock lights or a 4-way switch for convenient control of both power and lighting functions.
Constructed with a high-impact polypropylene fan housing and a 9.5" x 11" blower wheel, the HVTC-L-MOUNT delivers substantial airflow while maintaining a compact footprint that preserves dock clearance. The unit operates with a moderate sound level and a continuous duty cycle, suitable for all-day use in busy loading bays. The design includes inlet guards with a 0.5" opening and optional outlet guards of the same opening, supporting safe operation around personnel and cargo. Rated to withstand ambient temperatures up to 104°F, it remains functional under typical dock conditions.
Take advantage of the HVTC-L-MOUNT for rapid trailer purge—its documented performance aims to move air efficiently from the trailer bulkhead, helping to reduce heat, odors, and stale air during loading. When selecting a configuration, consider whether you need the integrated LED lighting or prefer a basic, lighting-free setup. Compatible and sized for fixed mounting at the dock, this fan is packaged as a single unit and is designed to slot into spaces that accommodate its 5-inch vertical clearance requirement.
Features:
- Purge 53' Truck Trailer in Minutes
- Dominates Airflow, Not Your Budget
- More CFM Than Other Dock Fans
- Compact Design for Clearance
- 115V Operation with Switch
- High Impact Polypropylene Housing
- Wheel (Blower):
- 9.5 inches x 11 inches
- Fan Housing:
- High Impact Polypropylene
- Inlet Guards:
- .5 inches Opening
- Outlet Guards (optional):
- .5 inches Opening
- RPM:
- 1075
- Decibels:
- 75 @ 3'
- Enclosure:
- ODP Standard
- Frame:
- 48
- Ambient Temperature:
- 104°F
- Duty Cycle:
- Continuous
- Integrated LED Dock Lights:
- 15W (optional)
- Package Size:
- Each
