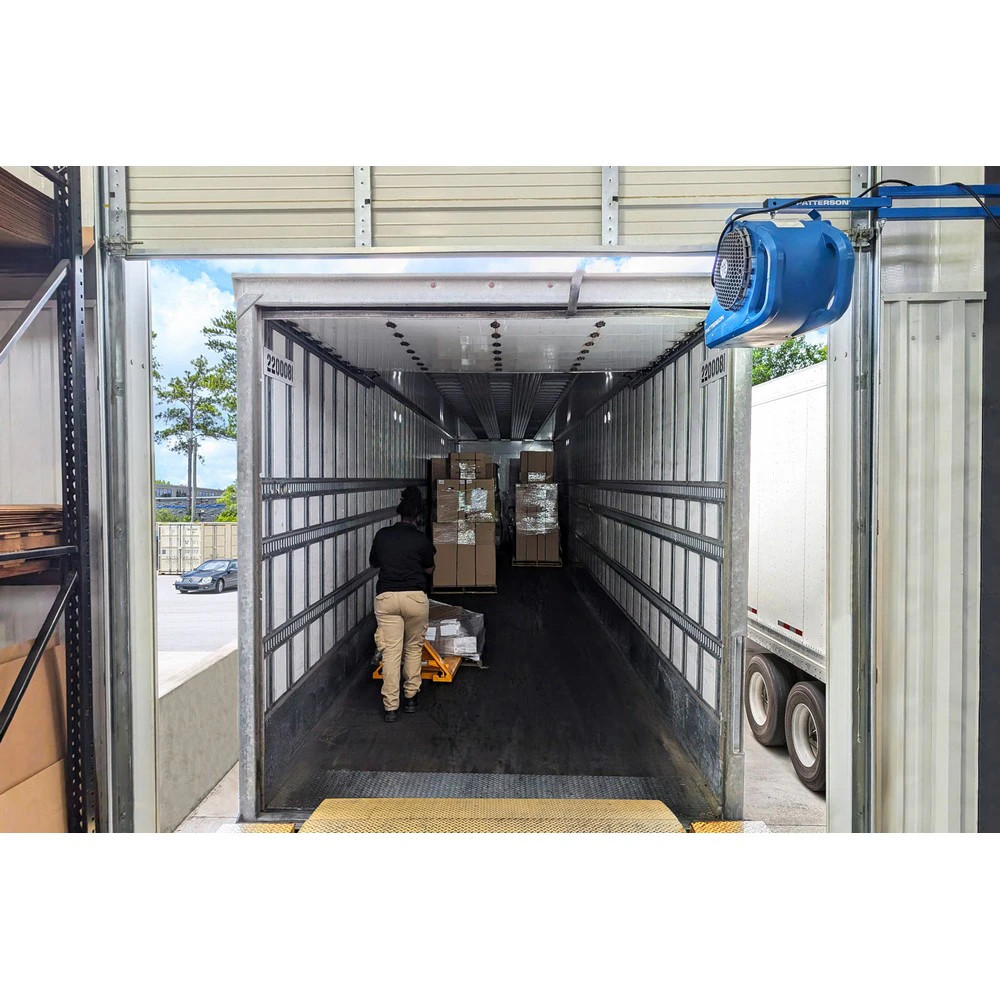

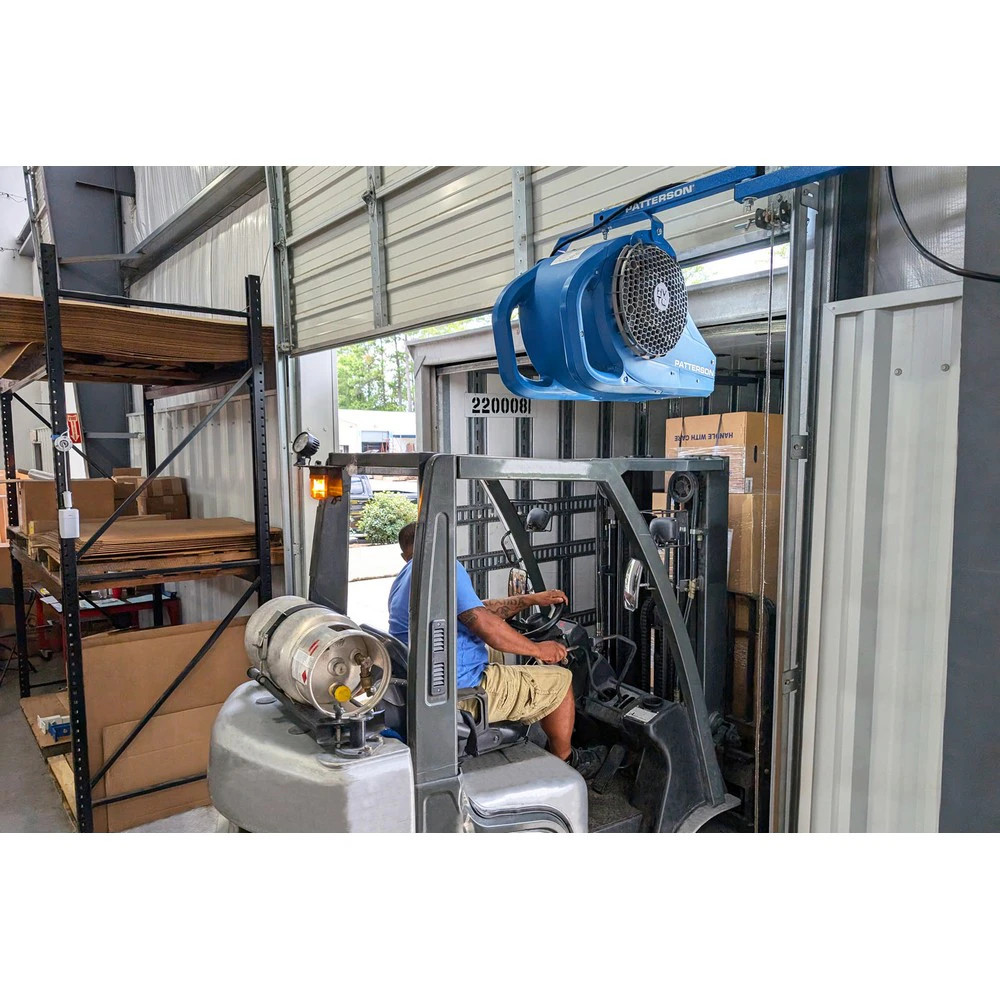

The Patterson HVTC-L-MOUNT loading dock fan is a high-velocity cooling solution designed to purge a 53-foot trailer quickly during manual loading and unloading. This 115V unit features a compact footprint suitable for dock door clearances, with the option to include integrated 15-watt LED dock lighting for improved visibility at the work area. The design emphasizes robust air delivery to help reduce ambient heat and humidity inside trailers, supporting safer, more efficient crane or manual activities.

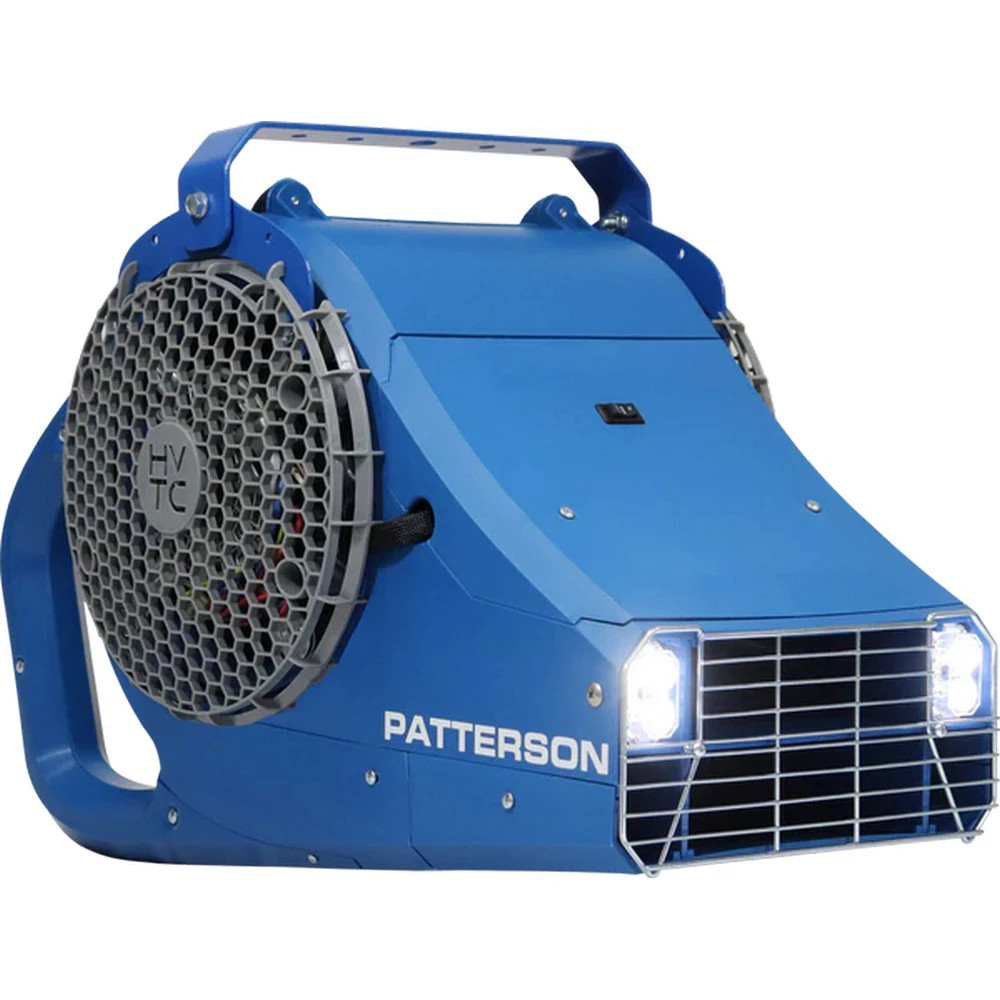

Construction details note a high-impact polypropylene fan housing paired with a 9.5" x 11" blower wheel and an inlet guard with .5" openings, geared for reliable performance in demanding dock environments. The system operates at 1075 RPM and is specified for continuous duty, with sound levels approaching 75 dB at 3 feet under typical operating conditions. The enclosure complies with ODP standards, reflecting attention to basic safety and enclosure integrity in industrial settings. The unit can be paired with an optional outlet guard and the 15W integrated LED lights for on-dock illumination, controlled via a 4-way switch attached to the power cord in configurations that support both power and lighting functions.
Suitable for use in loading bays where quick air purge of trailers is desired, this model emphasizes airflow volume and compact size to minimize dock obstruction. Compatibility notes indicate the unit is designed around a standard 115V supply and a form-factor that fits a fixed, 90-degree mounting orientation. When ordering, consider whether integrated lighting is required and verify space for the 5-inch vertical clearance footprint at the dock door. Regular maintenance should include inspection of guards and wiring connections to sustain safe, continuous operation in a high-traffic loading area.
Features:
- Purge 53' Truck Trailer in Minutes
- Dominates Airflow, Not Your Budget
- More CFM Than Other Dock Fans
- Compact Design for Clearance
- Integrated LED Dock Lights Optional (15W)
- 115V Operation
- Continuous Duty Rating
- Wheel (Blower):
- 9.5 inches x 11 inches
- Fan Housing:
- High Impact Polypropylene
- Inlet Guards:
- .5 inches Opening
- Outlet Guards (optional):
- .5 inches Opening
- RPM:
- 1075
- Decibels:
- 75 @ 3'
- Enclosure:
- ODP Standard
- Frame:
- 48
- Ambient Temperature:
- 104°F
- Duty Cycle:
- Continuous
- Integrated LED Dock Lights:
- 15W (optional)
- Package Size:
- Each
