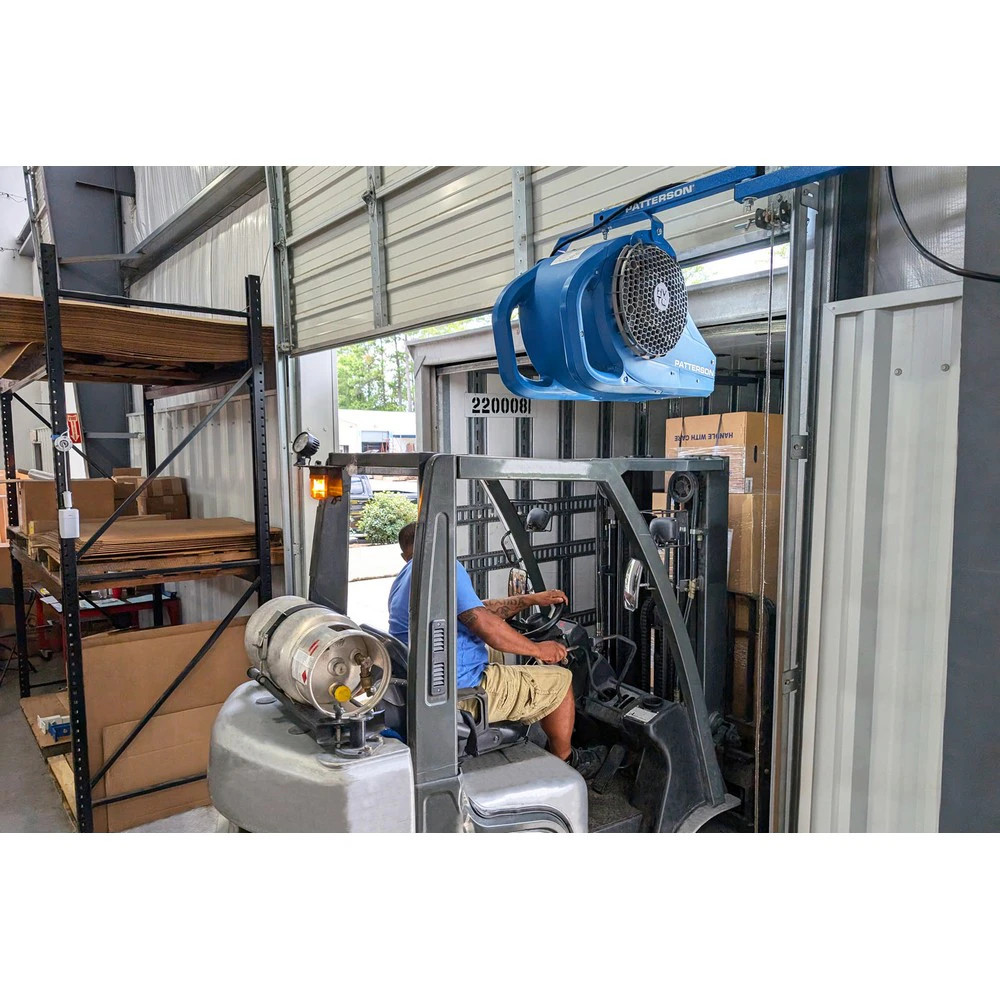

The Patterson FHVTCA-IDL is a high-velocity dock fan designed to quickly purge hot, stale air from 53-foot trailer trailers during manual loading and unloading. Built for demanding industrial environments, this 115V unit combines strong airflow with a compact footprint to minimize obstruction at the loading dock while delivering significant air movement for faster trailer turnover.
Constructed with a high-impact polypropylene fan housing and a 9.5" x 11" blower wheel, the unit is engineered for continuous duty and reliable operation in typical dock conditions. The design features a 1075 RPM blower and a guarded inlet opening, with optional outboard guards to enhance safety in busy dock areas. When paired with integrated 15-watt LED dock lights, the system provides both cooling and illumination, simplifying trailer purging without requiring separate fixtures. The product is offered with a practical 5-inch vertical footprint at the dock door, helping maintain clearance in tight loading bays.
Ideal use scenarios include daily purge cycles for 53-foot trailers during loading and unloading, particularly where space at the door is limited or where quieter operation is advantageous. The unit is specified for continuous-duty operation and is compatible with standard electrical connections in typical warehouse settings. Maintenance considerations center on basic cleaning of the intake and ensuring guards remain in place for safety. Optional LED lighting and guard accessories are available to tailor the system to your dock configuration. The combination of airflow performance, compact design, and flexible lighting makes this Patterson HVTC solution a practical choice for high-volume dock operations.
Features:
- Purge 53' Truck Trailer in Minutes
- Dominates Airflow, Not Your Budget
- More CFM Than Other Dock Fans
- Compact Design for Clearance
- 15W Integrated LED Dock Lights (optional)
- Yoke Mount for Flexible Installation
- Continuous Duty, 115V operation
- Wheel (Blower):
- 9.5 inches x 11 inches
- Fan Housing:
- High Impact Polypropylene
- Inlet Guards:
- .5 inches Opening
- Outlet Guards (optional):
- .5 inches Opening
- RPM:
- 1075
- Decibels:
- 75 @ 3'
- Enclosure:
- ODP Standard
- Frame:
- 48
- Ambient Temperature:
- 104°F
- Duty Cycle:
- Continuous
- Integrated LED Dock Lights:
- 15W (optional)
- Package Size:
- Each
