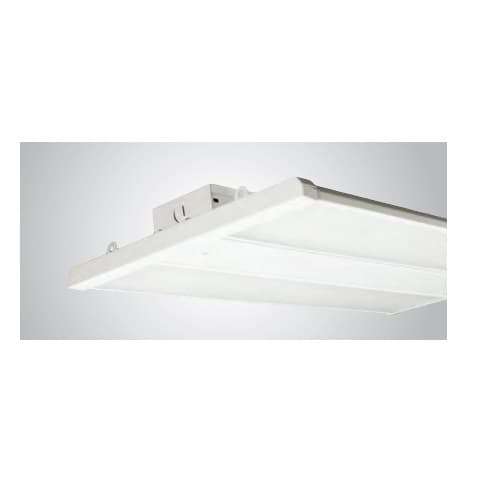

The TCP IB2UZDA250K is a 150-watt LED high bay designed to replace 350W metal halide equivalents in commercial facilities, delivering bright, daylight-like illumination with a 5000K color temperature. This linear LED module provides up to 130 lumens per watt, for an estimated high-output performance suitable for warehouses, display areas, garages, and other large indoor spaces. The fixture features a rugged 22-gauge steel housing and a high-impact frosted white acrylic lens to help optimize light distribution and durability in demanding environments.
Construction and notable attributes include a long service life of approximately 50,000 hours, helping reduce maintenance and replacement costs over time. It is 0-10V dimmable, enabling compatible lighting control for energy savings and occupancy-based scenarios when paired with appropriate drivers and controls. The unit ships with a 10-foot 277V cord and is certified for damp locations; it is cUL/UL listed, RoHS compliant, and carries the DLC Premium designation, which can support utility incentives and qualified project listings. Overall dimensions are 23.8 inches long, 12.6 inches wide, and 2.3 inches high, with an approximate weight of 10 pounds.
Applications and practical considerations: the IB2UZDA250K is suited for mounting at significant heights, with a suggested mounting height up to 60 feet for broad area coverage. Optional accessories such as an occupancy sensor with a mounting bracket and interchangeable lens, or a dusk-to-dawn occupancy sensor, are sold separately, enabling tailored control schemes. This product’s availability may include extended lead times, and returns or exchanges may not be offered on certain purchases, so confirming delivery timelines and return policies is important when planning installations.
Features:
- 5 year limited warranty
- 0-10V dimming capable
- 22 gauge steel housing
- 50,000 hours life
- 130 lm/W efficacy
- 5000K daylight color
- DLC Premium certified
- Part Number:
- IB2UZDA250K
- Certificate:
- DLC Premium, cUL/UL Listed
- Color Temperature:
- 5000K
- CRI:
- 80
- Dimmable:
- Yes
- Efficacy:
- 130 lm/W
- Lamp Type/Light Source:
- Linear LED Module
- Life Hours:
- 50000
- Maximum Voltage:
- 120V-277V
- Warranty:
- 5 Yr
- Wattage:
- 150W
- Wattage Equivalent:
- 350W MH
- Weight:
- 10.00 lb
- Package Size:
- Each
