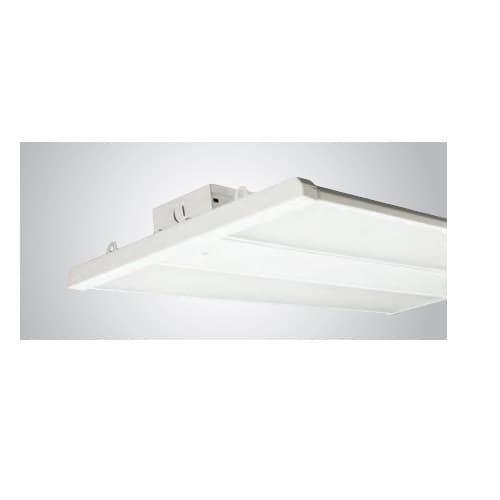

The TCP IB2UZDA150K is a 105-watt LED high bay luminaire designed to retrofit traditional 250W metal-halide systems while delivering enhanced efficiency and reduced operating costs for commercial facilities. With a lumen output of 13,500 and an efficacy of 130 lm/W, this linear LED module provides bright, daylight-balanced illumination (5000K) suitable for display areas, security lighting, garages, and task-oriented spaces. Its compact 23.8-inch by 12.6-inch footprint and 2.3-inch height make it a versatile option for a range of high bay applications, especially when ceiling heights reach up to 60 feet with appropriate mounting considerations.
Construction features include a durable 22-gauge steel housing and a high-impact frosted white acrylic lens, which helps to distribute light evenly while withstanding demanding environments. The unit is listed for damp locations and is RoHS compliant, with active DLC Premium certification that supports energy performance incentives. It ships with a 10-foot cord suitable for 120–277V installations and offers 0-10V dimming for compatible control schemes, enabling compatible lighting control strategies to reduce energy usage. A practical note: occupancy sensors (both standard bracketed versions and dusk-to-dawn variants) are available separately, as is an interchangeable lens, providing flexibility for varying space needs and mounting layouts.
For installation and ongoing operation, consider the mounting height guidance and ensure power and dimming controls align with your existing electrical infrastructure. The part is listed with a 5-year limited warranty, reflecting TCP’s commitment to product reliability within its LED high bay line. This model’s 13500 lumens at 105W, paired with 5000K color temperature, makes it a strong candidate for facilities seeking a daylight-like, energy-efficient retrofit from 250W HID systems while aiming for consistent, long-life performance.
Features:
- 105W LED high bay retrofit for 250W MH equivalents
- 13500 lm, 5000K for bright, daylight-like illumination
- 0-10V dimming for flexible control
- 22 gauge steel housing with high impact frosted acrylic lens
- Long life 50,000 hours and 130 lm/W efficacy
- DLC Premium, cUL/UL listed, RoHS compliant
- 5 year limited warranty
- Part Number:
- IB2UZDA150K
- Certificate:
- DLC Premium, cUL/UL Listed
- Color Temperature:
- 5000K
- CRI:
- 80
- Dimmable:
- Yes
- Efficacy:
- 130 lm/W
- Lamp Type/Light Source:
- Linear LED Module
- Life Hours:
- 50000
- Lumens:
- 13500 Lm
- Maximum Voltage:
- 120V-277V
- Warranty:
- 5 Yr
- Wattage:
- 105W
- Wattage Equivalent:
- 250W MH
- Weight:
- 10.00 lb
- Package Size:
- Each
