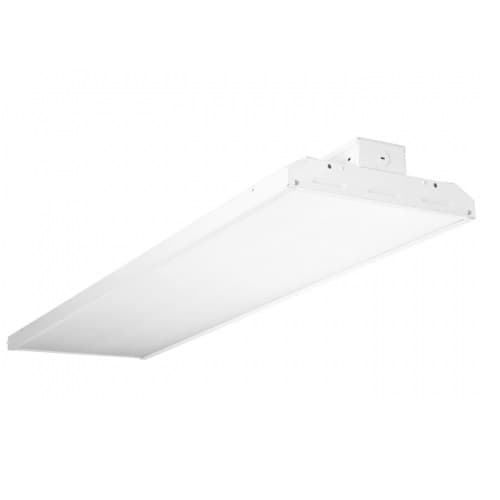

The TCP HB10500240 is a high-efficiency LED linear high bay designed to replace 250W or 400W HID fixtures in demanding industrial and large commercial spaces. With a 105W input and a light output of approximately 13,000 lumens, this fixture provides strong illumination while trimming energy usage. It operates within a wide voltage range (347V–480V) and is dimmable, offering flexibility for varying lighting schemes and occupancy schedules.
Constructed with a post-painted steel frame and an integrated, clean-emission light engine, the unit features broad beam coverage and a precise cut-off achieved by an angled LED configuration. The assembly includes practical mounting and suspension accessories: two tongs hangers, a 5 ft. chain, a hub mount kit for conduit/stem mounting, and a 6 ft. pre-wired cord, simplifying installation in utility rooms, warehouses, or manufacturing floors. The fixture is rated IP65, supporting resistant operation in moderate dust and water exposure environments, and it is designed to withstand a wide operating temperature range from -4 to 122 degrees Fahrenheit.
Designed for durability and straightforward maintenance, the HB10500240 utilizes a steel housing with durable, hooded protection and a compact footprint measuring 23.8 inches long, 3.8 inches wide, and 12.6 inches high. This model is DLC Premium listed, a detail that helps in qualifying for certain energy incentive programs and ensures compatibility with approved HVAC and lighting control strategies in professional installations. It is offered in a white finish and operates at 4000K color temperature to balance visibility and contrast across large spaces, making it suitable for warehouses, manufacturing facilities, and other industrial environments where reliable, efficient linear lighting is needed.
Features:
- LED high bay with 13000 lumens for bright industrial lighting
- 105W power with 347V-480V hardwired operation
- Dimmable with optional battery backup or motion sensors
- Wide beam spread with angled LED design for clean cut-off
- IP65 rated for moisture and dust resistance
- Post painted steel frame, no scalloping, riveted with rounded corners
- Includes mounting hardware: 2 hangers, 5 ft. chains, hub mount kit, 6 ft. pre-wired cord
- Part Number:
- HB10500240
- Certificate:
- DLC Premium
- Color / Finish:
- White
- Color Temperature:
- 4000K
- Connection Type:
- Hardwired
- Dimmable:
- Yes
- Fixture Type:
- Linear
- IP Rating:
- IP65
- Lumens:
- 13000 lm
- Material:
- Steel
- Maximum Voltage:
- 347V-480V
- Warranty:
- 5 Yr
- Wattage:
- 105W
- Wattage Equivalent:
- 250W MH
- Weight:
- 10.00 lb
- UPC:
- 762148153863
- Package Size:
- Each
