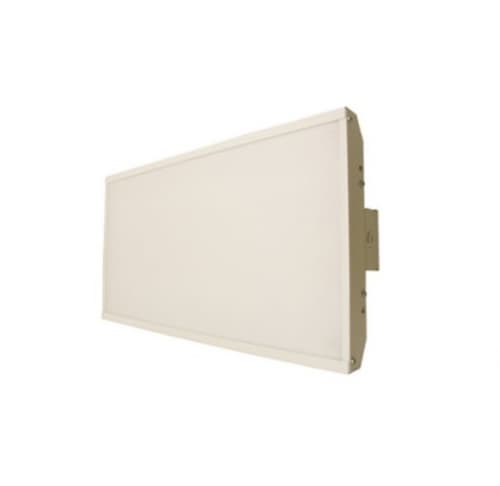

The TCP HB17500150MS1 is a high bay LED lighting fixture designed for installing in commercial, industrial, retail, or warehouse environments with high ceilings. It delivers bright, even illumination with the efficiency and long life expected from modern LED luminaires, featuring a 175W light engine and a 5000K color temperature that yields a crisp, natural white light suitable for large spaces. The unit is built with an all-metal frame and a post-painted steel housing that reduces edge wear and supports durability in demanding settings. The frosted lens helps control glare while maintaining a wide beam pattern that minimizes shadows and provides uniform coverage across work areas.
A key practical feature is the MS1 sensor option paired with 0-10V dimming, allowing smooth, flicker-free dimming down to user-defined levels and reduced energy use when full output isn’t required. The fixture supports damp-location installations and includes hardware for versatile mounting, such as two hangers, chain mounting options, a conduit/stem mount, and a pre-wired cord for quick assembly. The design prioritizes ease of installation and maintenance in challenging vertical spaces, with a durable construction meant to withstand the rigors of industrial interiors.
Compatibility and compliance details accompany the unit, including cUL/UL Listed status and DLC Premium designation, which can influence specification and incentive considerations for projects. The HB17500150MS1 measures 23.8 inches in length, 17.5 inches in width, and 3.8 inches in height, and carries a 5-year warranty. Designed for compatibility with 120V–277V power, this fixture provides a robust, easily integrated lighting solution for high-ceiling applications where consistent, shadow-free illumination is essential.
Features:
- No shadows, smooth even lighting
- Damp location rated
- Microwave motion sensor
- 0-10V smooth no flicker dimming
- Optional battery backup or motion sensors available
- Ideal for high ceiling locations in commercial, industrial, retail or warehouse settings
- Hardware included: 2 tong hangers, 5-ft jack chains, hub mount kit for .75-in conduit/stem mount, 6-ft pre-wired cord
- Post painted steel frame with rounded edge corners
- Standard frosted lens for glare control
- Wide beam spread with angled LED design for clean cut off
- cUL/UL Listed, DLC Premium
- Dimensions: 23.8-in L × 17.5-in W × 3.8-in H
- Part Number:
- HB17500150MS1
- Bulb Included:
- Yes
- Certificate:
- cUL/UL Listed, DLC Premium
- Color Temperature:
- 5000K
- CRI:
- 82
- Dimmable:
- Yes
- Efficacy:
- 130 lm/W
- Lamp Type/Light Source:
- LED
- Life Hours:
- 50000
- Maximum Voltage:
- 120V-277V
- Warranty:
- 5 Yr
- Wattage:
- 175W
- Weight:
- 14.00 lb
- UPC:
- 762148286240
- Package Size:
- Each
