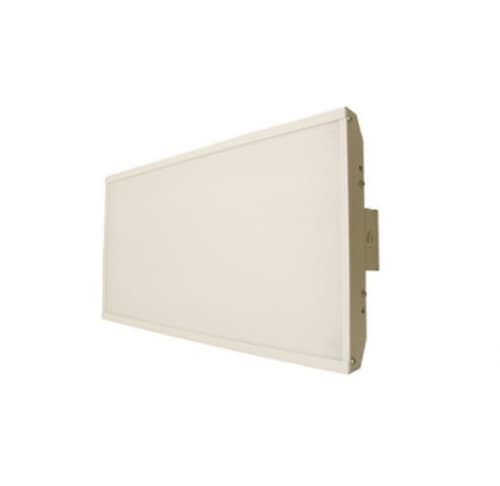

TCP HB17500140 175W LED Linear High Bay Fixture, 0-10V Dimming, 22750 lm, 120V-277V, 4000K

The TCP HB17500140 is a high-performance LED linear high bay designed for professional lighting of tall-ceiling environments such as warehouses, manufacturing facilities, and retail spaces. With a 175W LED array delivering an impressive 22,750 lumens and a 4000K color temperature, this fixture provides a cool, white light that emphasizes clarity for work tasks and general area illumination. The luminaire is built around a post-painted steel frame that features rounded edge corners and riveted construction, contributing to a durable, maintenance-friendly profile suitable for damp locations.

Key design elements include a standard frosted lens that helps control glare and deliver smooth, shadow-free illumination. The LED system is engineered for wide beam spread through an angled configuration, providing clean cut-off and uniform coverage across the workspace. The HB17500140 supports 0-10V dimming for flicker-free adjustment, enabling energy savings and flexible lighting control in varying occupancy or task scenarios. The fixture ships with hardware for easy mounting, including two hangers, 5-ft chains, a hub mount kit for conduit or stem mounting, and a pre-wired 6-ft cord. It carries cUL/UL listings and is DLC Premium qualified, reflecting compliance with common industry efficiency and safety standards.

Practical considerations include suitability for high-ceiling environments where durable construction and reliable performance are priorities. The fixture is rated for 120V-277V operation and comes with a five-year warranty, supporting long-term maintenance planning. Dimensions are 23.8 inches in length, 17.5 inches in width, and 3.8 inches in height, with a weight of 14 pounds, which informs ceiling clearance and mounting layout decisions. Optional accessories such as battery back-ups or motion sensors are available if your application requires backup lighting or automated occupancy-based control. While product lead times may vary due to availability, and returns or exchanges may be restricted, this TCP fixture is positioned as a robust, energy-efficient choice for demanding industrial settings.

Features:

• 175W LED high bay with 130 lm/W efficacy
• 4000K color temperature, CRI 82 for color accuracy
• 0-10V dimming for smooth, flicker-free control
• Damp location rated with wide beam spread
• cUL/UL Listed, DLC Premium
• Includes hardware: 2 hangers, 5-ft chains, hub mount kit, 6-ft cord
• Dimensions: 23.8 in L x 17.5 in W x 3.8 in H
